Cycle and reaction times
5.3 Response time
CPU 31xC and CPU 31x, Technical data
Manual, Edition 08/2004, A5E00105475-05
5-17
5.3.3 Longest response time
Conditions for the longest response time

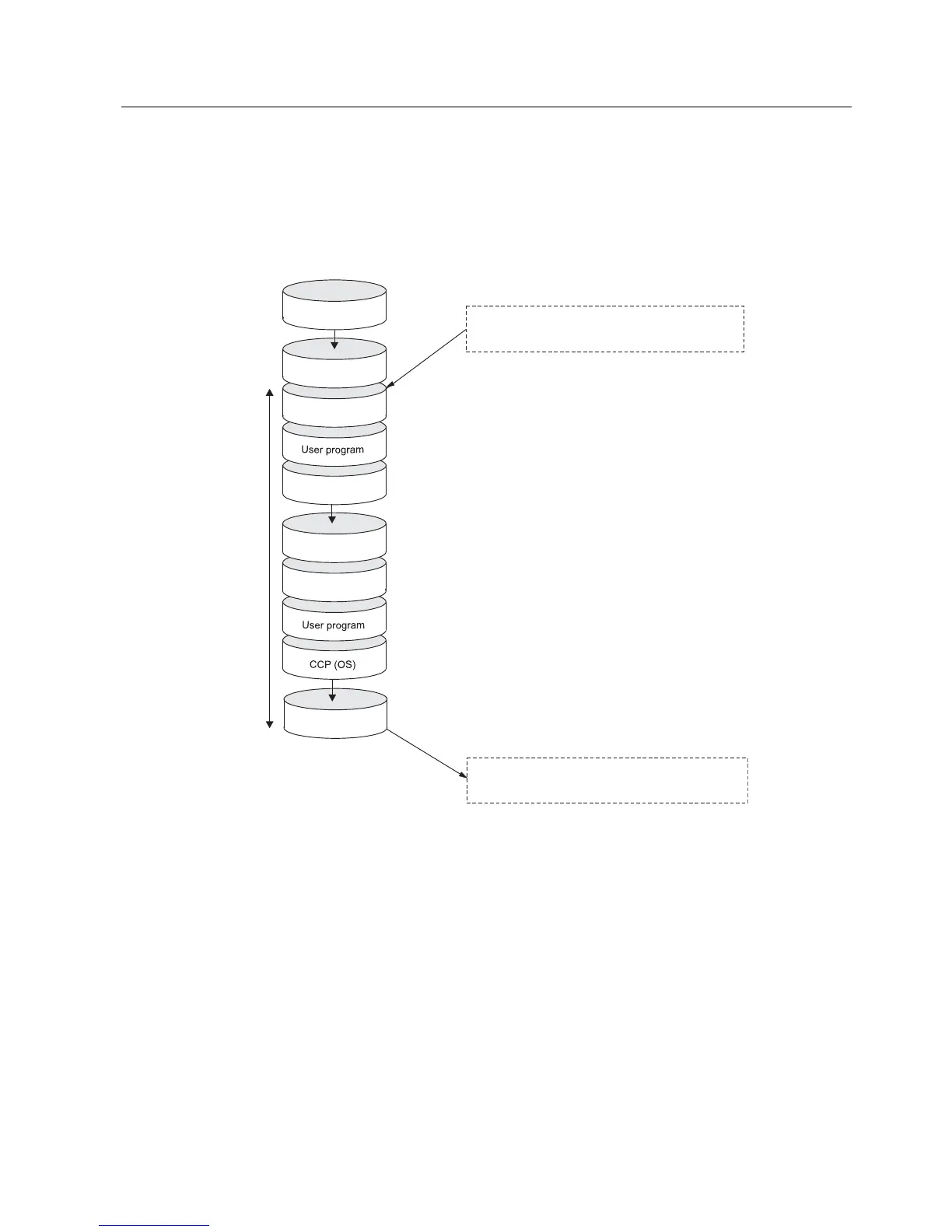

The figure below shows the conditions under which the longest response time is reached.
Response time
While reading in the PII, the status of the monitored
input changes. This change of the input signal is not
included in the PII any longer.
The change of the input signal is included in the PII.
The change of the input signal is processed by the
application program.
The response of the user program to the change
of the input signal is issued to the outputs.
Delay of inputs +
2 x DP cycle time at PROFIBUS DP
Delay of outputs +
2 x DP cycle time at PROFIBUS DP
CCP (OS)
PIO
PII
CCP (OS)
PIO
PII
PIO
