1.2 Applications
1.2.1 Example of applications
With the help of the binary signal transducer 2 binary signals can be
detected and directly transmitted over FO distances up to 3 km via
multimode cables and can be put out in the remote station via relay
contacts. A repeater 7XV5461 is available for transmission with mono-
mode fibres up to 100 km (fig. 2a).
Transmission can, however, also be carried out via modem or PCM
devices (fig. 2b) after connecting the equipment to the RS232 interface.
L2 402,1A Max450.1A
L3 402,1A Max450.1A
L2 402,1A Max450.1A
L3 402,1A Max450.1A
K1
FO
Binary signal
transformer
BE1 BE2 K2
RS232
L2 402,1A Max450.1A
L3 402,1A Max450.1A
L2 402,1A Max450.1A
L3 402,1A Max450.1A
K1
FO
BE1 BE2 K2
RS232
Modem
or
PCM-device
Modem
or
PCM-device
Digital
communication networks
or 2 pilot pairs
Binary signal
transformer

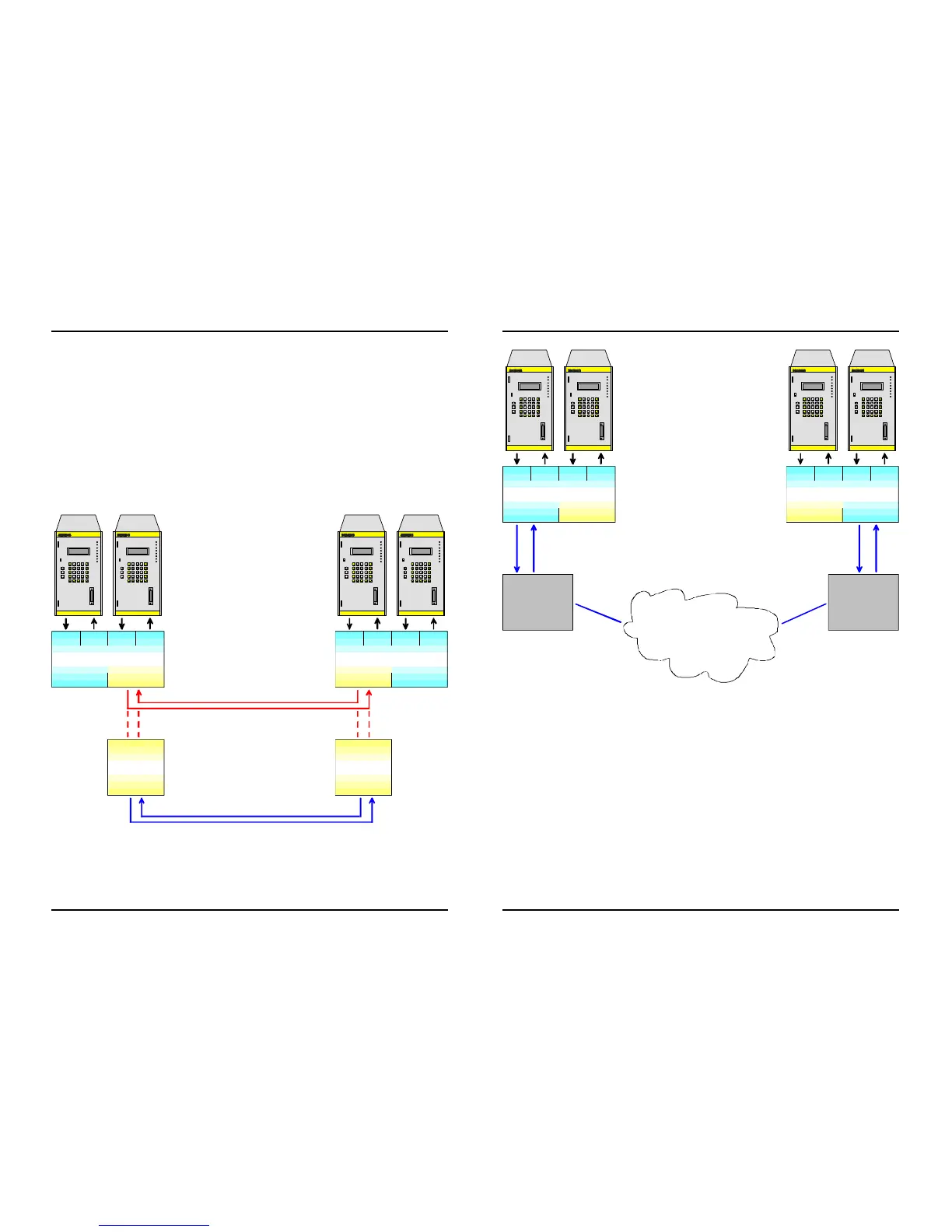

Fig. 1a: Example of application for direct fibre connections with
multimode or single mode fibre.
Fig. 1b: Example of application for a serial connection via modem
or a comms-device.
L2 402,1A Max450.1A
L3 402,1A Max450.1A
L2 402,1A Max450.1A
L3 402,1A Max450.1A
K1
FO
Binary signal
transformer
BE1 BE2 K2
RS232
Binary signal
transformer
L2 402,1A Max450.1A
L3 402,1A Max450.1A
L2 402,1A Max450.1A
L3 402,1A Max450.1A
K1
FO
BE1 BE2 K2
RS232
Binary signal
transformer
FO 820
FO 1300
Repeater
FO 820
FO 1300
Repeater
Monomode fibre up to 100 km
Multimode fibre up to 4 km
