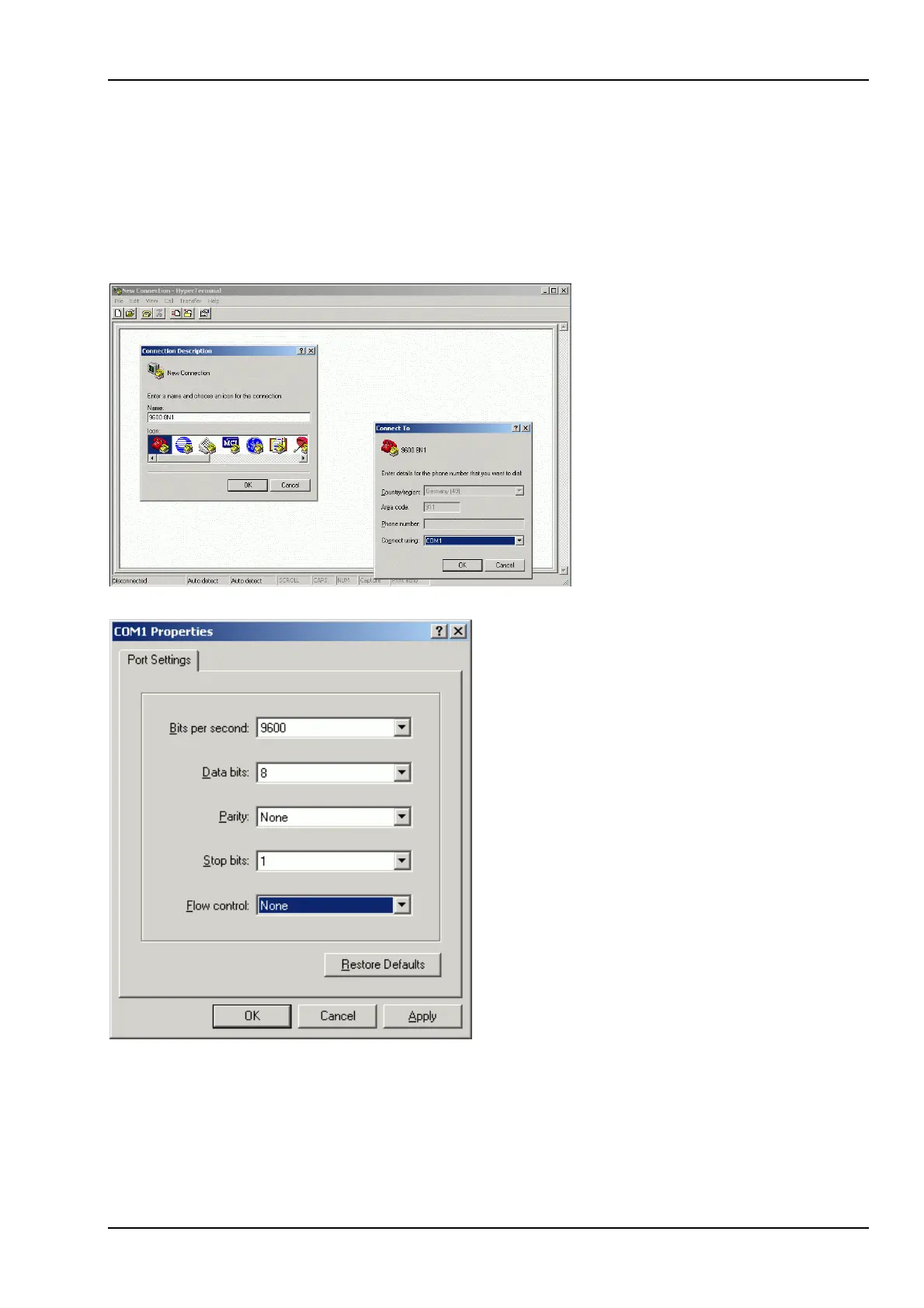

Using "HyperTerminal" via the Serial Interface of a PC
This terminal program is supplied as a standard part of the operating system, e.g.
WINDOWS® 2000 and WINDOWS® XP.
Start HyperTerminal under:
"Start Æ Programs Æ Accessories Æ Communications Æ HyperTerminal"
Enter a name for the new
connection, e.g. 9600 8N1.
The connection can be saved on
exiting.
Assign a PC interface to the
connection,
e.g. COM1.
For a new Serial Hub, select the settings
9600 bits per second,
8 data bits,
none for parity,
1 stop bit and
none for flow control
Continue with
OK
Note: The Serial Hub data traffic can only be observed via the serial interface in the
currently set baudrate and data format. If these settings were changed, the connection
settings in HyperTerminal would have to be adjusted.
It is advisable to note down these settings to avoid any problems accessing the
Serial Hub later.
