Document No. 546-00085
Installation Instructions
December 8, 2011
Siemens Industry, Inc. Page 5 of 7

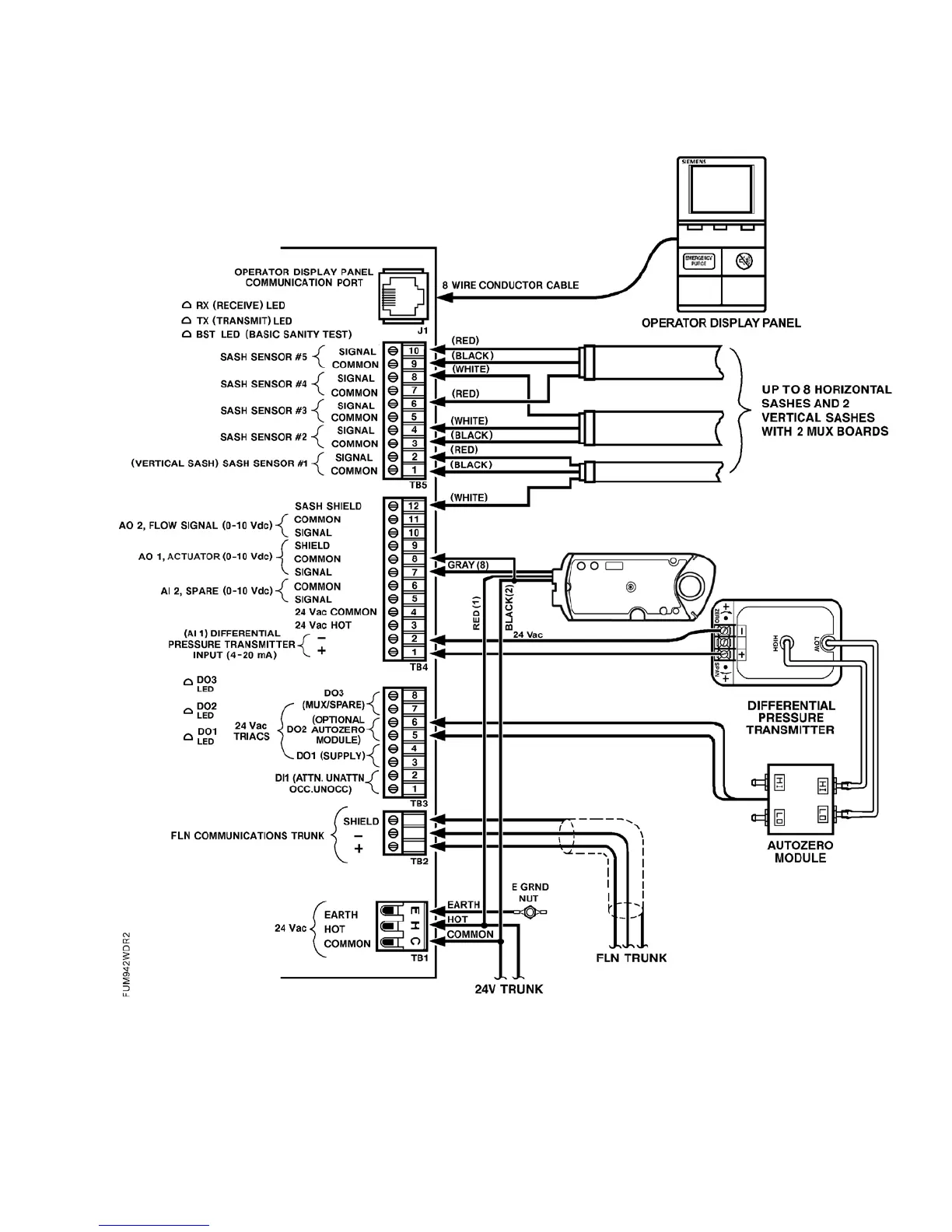

Figure 8. Fume Hood Controller with Venturi Air Valve Wiring (Application 942).
