Siemens Acuson S2000 Installation Instructions

Siemens US15-101.812.01.02.02 ACUSON S2000
05.10 Ultrasound
System Delivery Procedure 11
Page 11 of 40
a) Unscrew the two 9/16 inch. bolts that secure the front ramp to the retainer bar, and
then remove both ramps from the crate.
b) Remove the two bolts that secure the rear bracket, and the four bolts that secure the
retainer bar to the front portion of the crate.
c) Attach the ramps to the bottom of the crate using the two Velcro strips. The wooden
guide strips should be on the outside, facing up.
8. Unlock the front and rear wheels and roll the system off the crate to its location.
CAUTION
Equipment Damage May Occur!
¹ This is a two-person operation. Keep control of the sys-
tem at all times will help prevent equipment damage by
tipping over or rolling away while using the ramps to
unload the system.

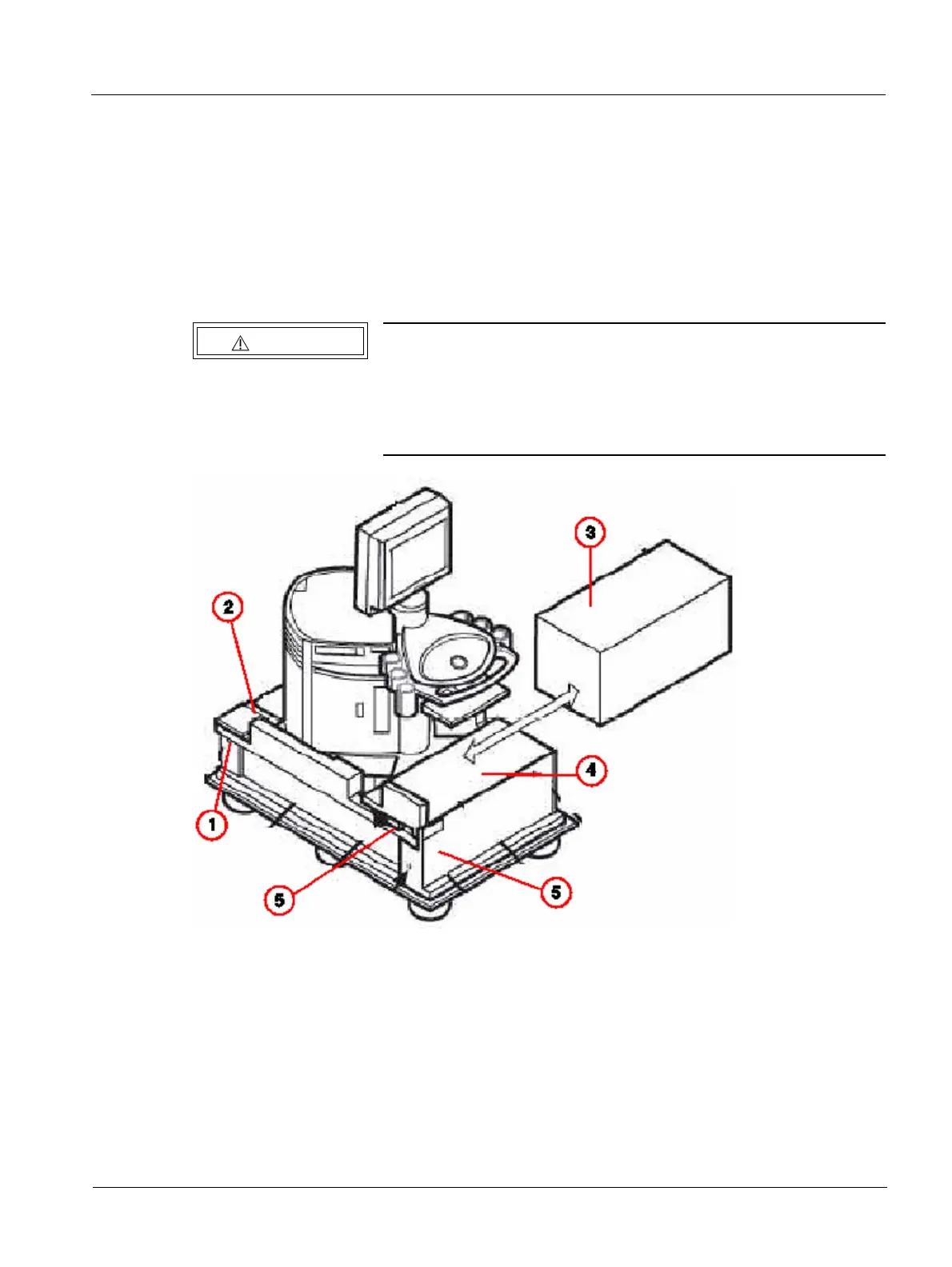

Fig. 3: S2000 -- Uncrating Positions
Pos. 1 Bolt (8 places)
Pos. 2 Rear Bracket
Pos. 3 Accessory Box “B”
Pos. 4 Ramp 2
Pos. 5 Ramp 1
Pos. 6 Front Bracket
