10 System Delivery Procedure
ACUSON S2000 US15-101.812.01.02.02 Siemens
05.10 Ultrasound
Page 10 of 40
4. Unfasten the eight “Corro” clips (6/Fig.2/p.10) and remove the inner cardboard wrap.
5. Lift the accessory box off the crate and set it aside.

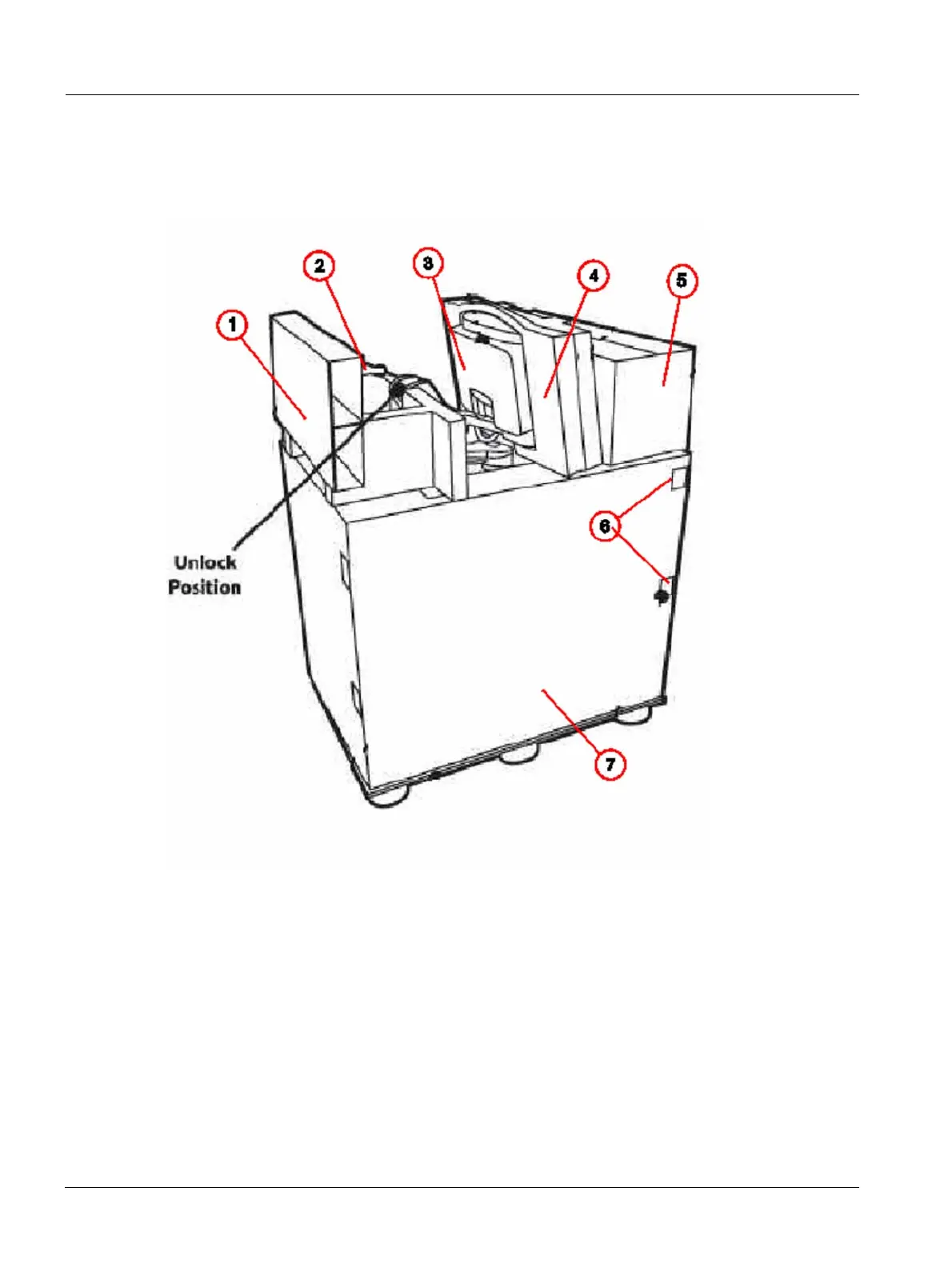

Fig. 2: S2000 Shipping Crate -- Outer sleeve removed
Pos. 1 Spacer box
Pos. 2 Rear foam support
Pos. 3 S2000 Unit
Pos. 4 Front foam support
Pos. 5 Accessory box
Pos. 6 Coro clips (8 places)
Pos. 7 Inner sleeve
6. Carefully remove the plastic wrapping that secures the keyboard, peripherals, and fil-
ters to the system's frame.
7. Install the roll-out ramps.
