Siemens US02-109.841.01.01.02 ACUSON Sequoia
02.04 sd
Sequoia Elastomer Replacement 11
Page 11 of 16
Medical Solutions USA, Inc.
18. Carefully lift the UI board and set aside

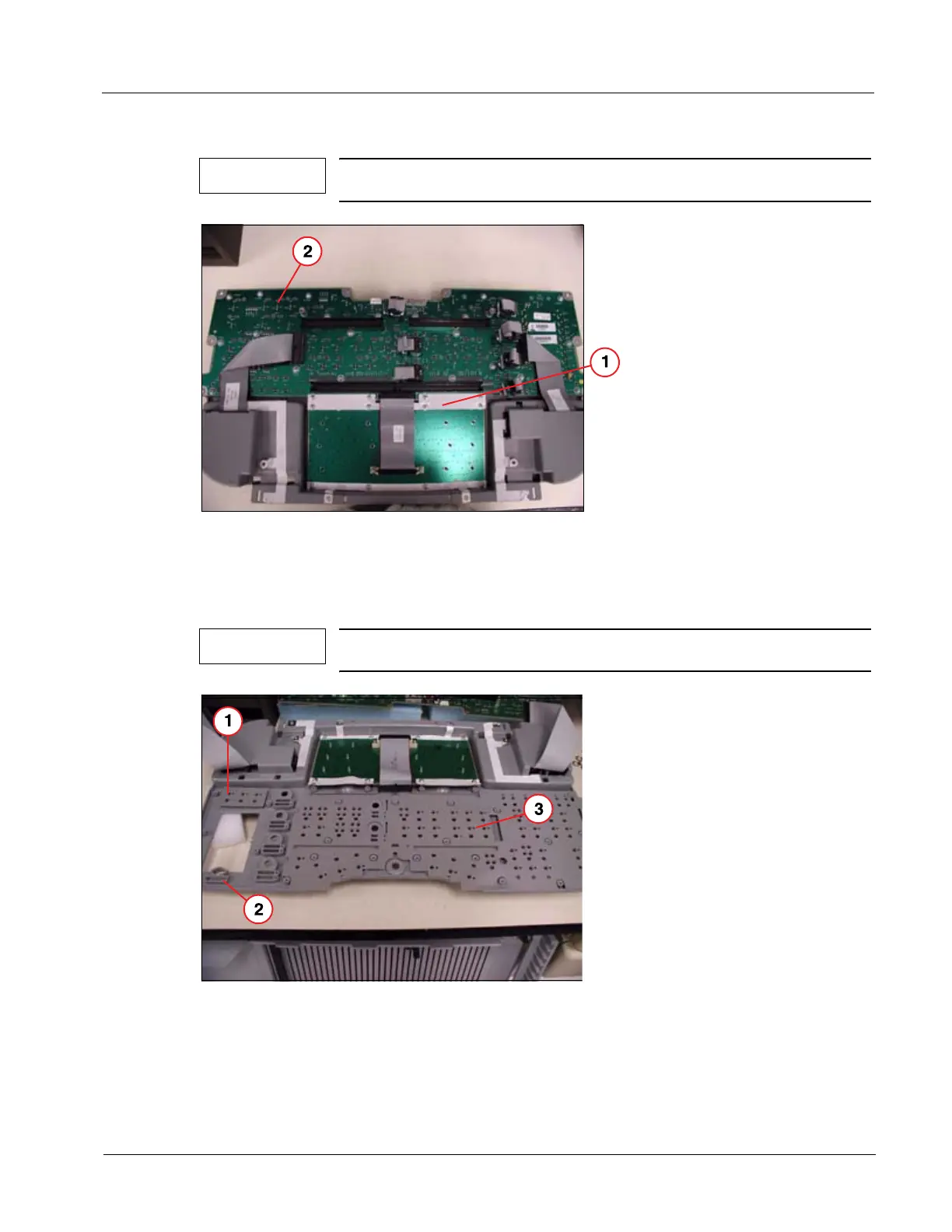

Fig. 7: Sequoia UI Board descriptions
Pos. 1 Grounding strap
Pos. 2 UI Board
19. Remove the elastomer.
Fig. 8: Sequoia Elastomer Descriptions
Pos. 1 L/R, U/D Elastomer
Pos. 2 TEQ Elastomer
Pos. 3 Main Elastomer
NOTE
Grounding straps may tear if not carefully removed.
NOTE
The elastomer comes in three separate sections.
