Sequoia Elastomer Replacement 9
Page 9 of 16
Medical Solutions USA, Inc.
3. Disconnect trackball cable and trackball function switch cable from the FPP.

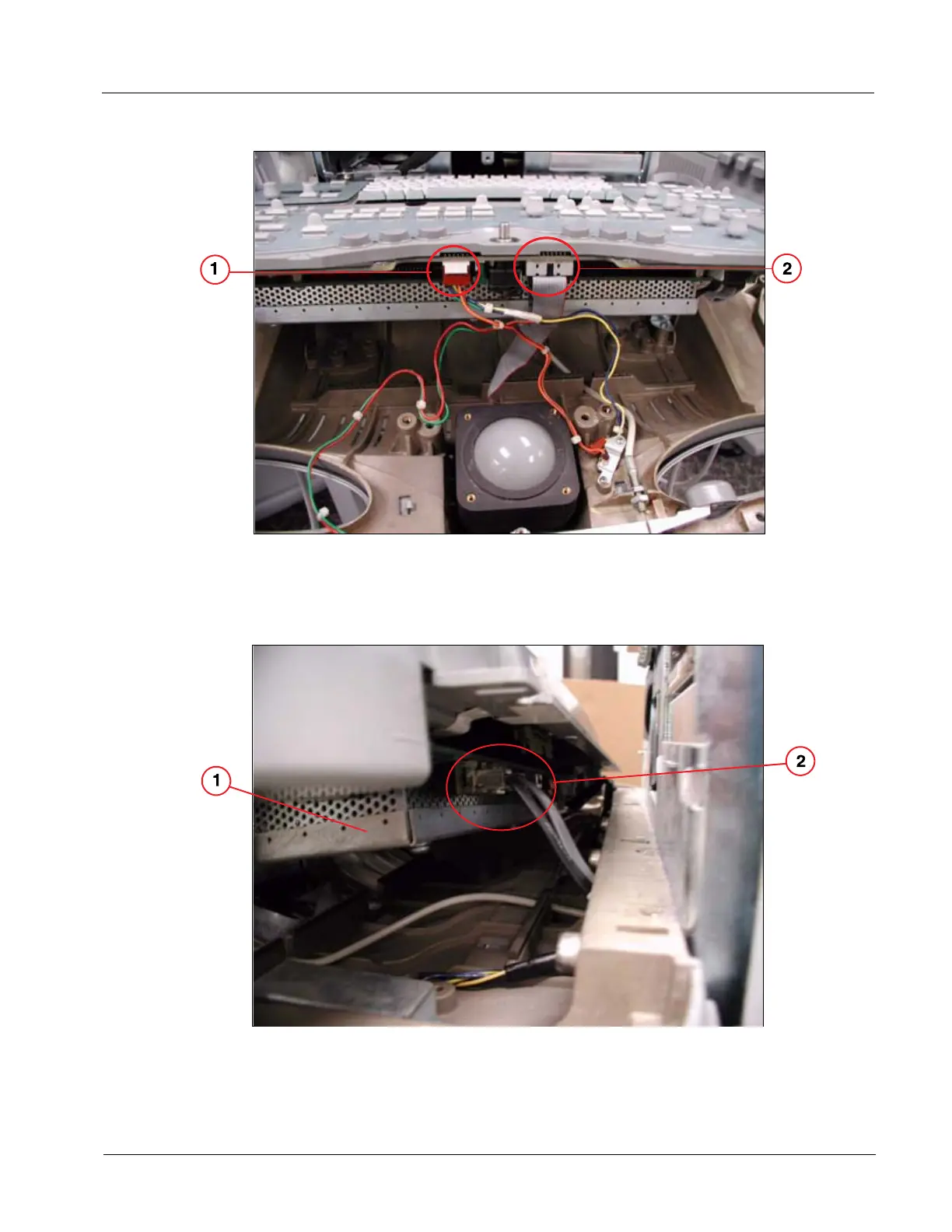

Fig. 4: Trackball cables
Pos. 1 Trackball Cable
Pos. 2 Trackball function switch cable
4. Disconnect cables from rear edge of the FPP.
Fig. 5: View from behind Sequoia monitor
Pos. 1 FPP
Pos. 2 RJ12, RJ45, FPP, and Power cables
