Siemens AG SPR2-330.814.01.01.02 ARCADIS Avantic
02.05 CS SD 24
Installation and Setting Instructions 5
Page 5 of 10
Medical Solutions
With the laser light localizer 0

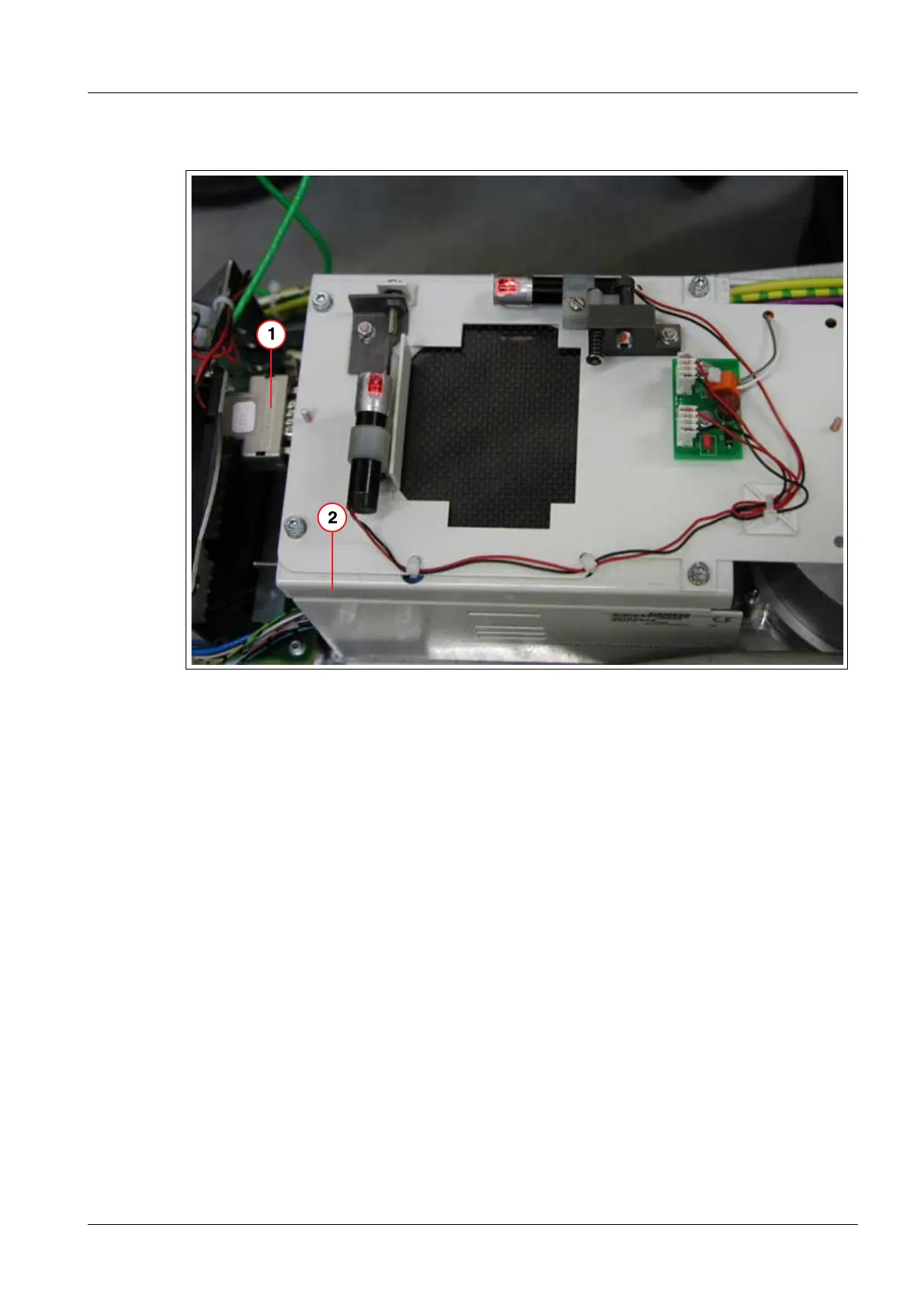

Fig. 1: Measuring chamber connection
Remove the laser light localizer prior to the installation procedure. After installation is
complete, remount the localizer, check it, and adjust it as needed according to the "Laser
Light Localizer" setting instructions.
Installing the measuring chambers 0
• Disconnect the ARCADIS power plug.
• Unscrew the POWERPHOS cover. Carefully separate the adhesive joints on the long
sides of the cover.
• Remove the measuring chamber connection (1/Fig.1/p.5) from the cable tie.
• Place the dose measuring chamber on the POWERPHOS according to (2/Fig.1/p.5).
• Use the included threaded bolts and screws to secure the dose measuring chamber to
the POWERPHOS.
• Connect the measuring chamber connection (1/Fig.1/p.5) to the measuring chamber.
• Use the switch on the measuring chamber to select the desired resolution (see the in-
scription on the measuring chamber and the measuring chamber operating instruc-
tions).
• Reattach the POWERPHOS cover.
