Siemens ARCADIS Varic Installation And Startup Guide

8 Installation and settings
ARCADIS SPR2-310.814.05.02.02 Siemens AG
01.05 CS SD 24
Page 8 of 12
Medical Solutions
8. Disconnect the monitor VGA cable from the live monitor and reference monitor (if option
is available). Pull the cable(s) back to the location shown in (2/Fig.2/p.6)

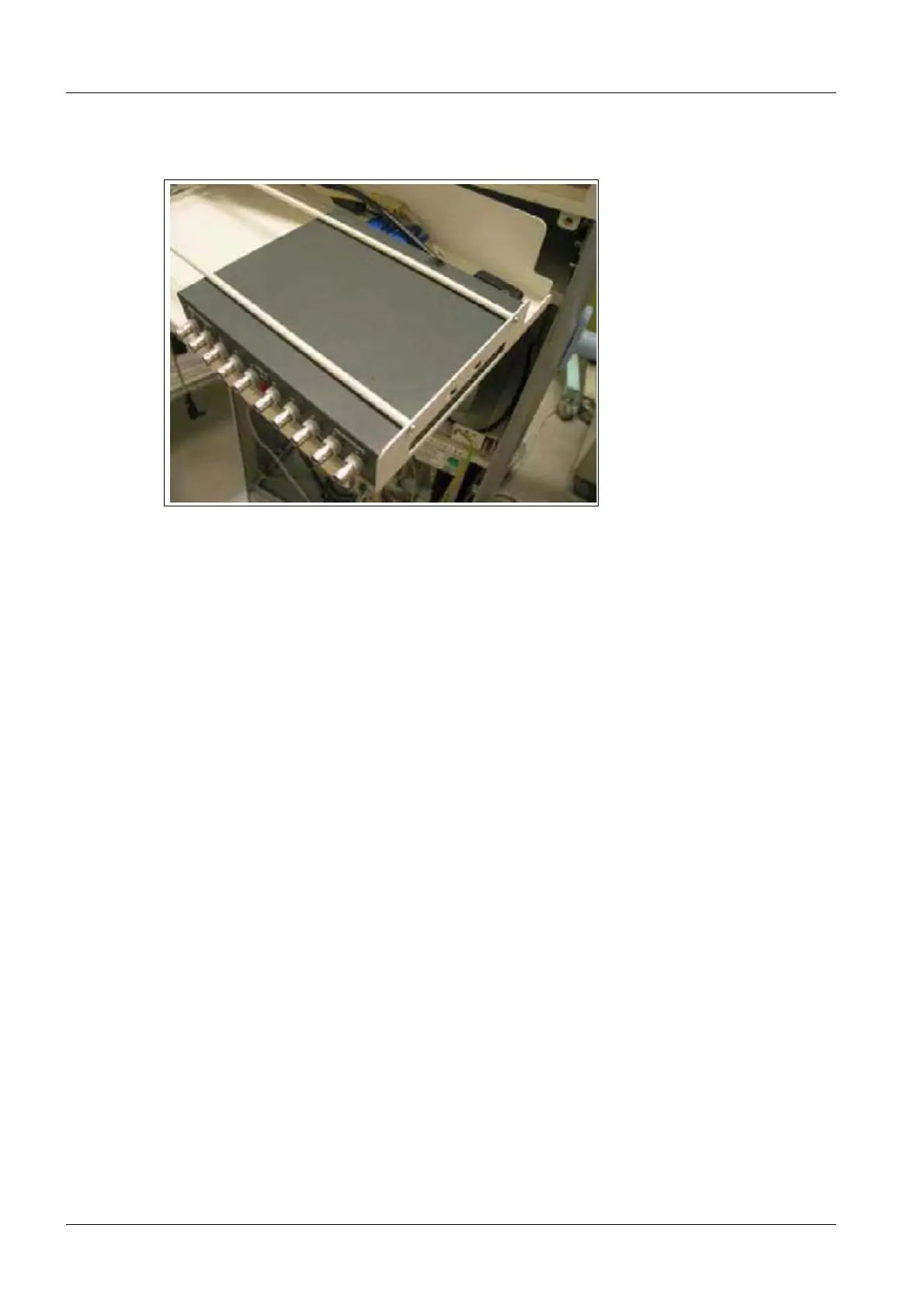

Fig. 4: Mounting
9. Use the supplied kit to pull the VGA cable(s) from location (3/Fig.2/p.6) to the moni-
tor(s) and connect it/them to the monitor(s). Run the cables as shown in (Fig.3/p.7).

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
