Siemens ARCADIS Varic Installation And Startup Guide

Siemens AG SPR2-310.814.05.02.02 ARCADIS
01.05 CS SD 24
Installation and settings 9
Page 9 of 12
Medical Solutions
10. Mount the video splitter for the live monitor on the mounting rack as shown in
(Fig.4/p.8).
If a video splitter for the reference monitor is available, mount it next to the video splitter
for the live monitor.

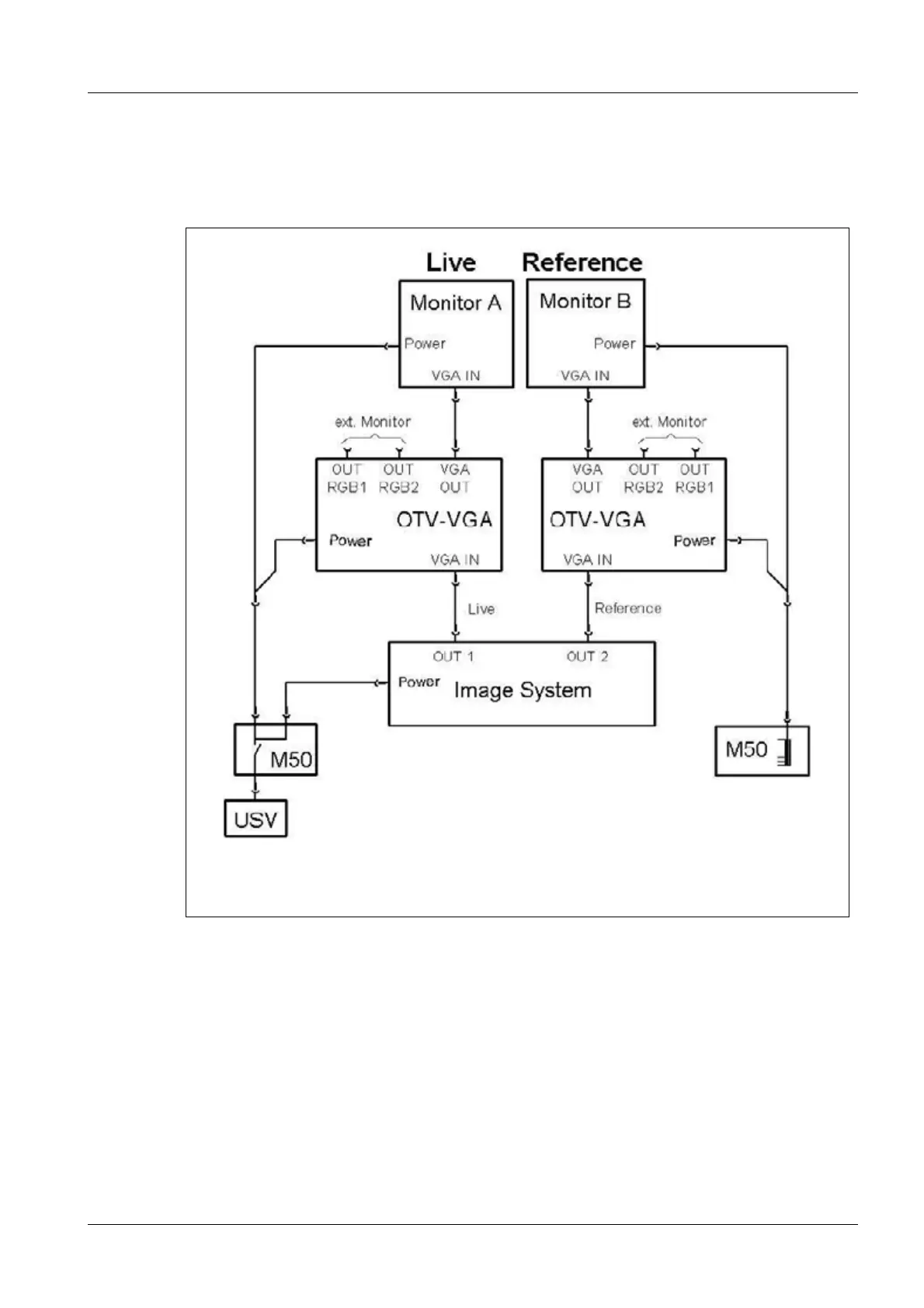

Fig. 5: Wiring diagram
11. Switch the line switch of the video splitter on.

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
