LEDs and connectors
2.2 LEDs
CP 1243-1
Operating Instructions, 04/2017, C79000-G8976-C365-03
27
Note
LED colors when the module starts up
When the module starts up, all its LEDs are lit for a short time. Multicolored LEDs display a
color mixture. At this point in time, the color of the LEDs is not clear.
Display of the basic statuses of the CP ("DIAG" LED)

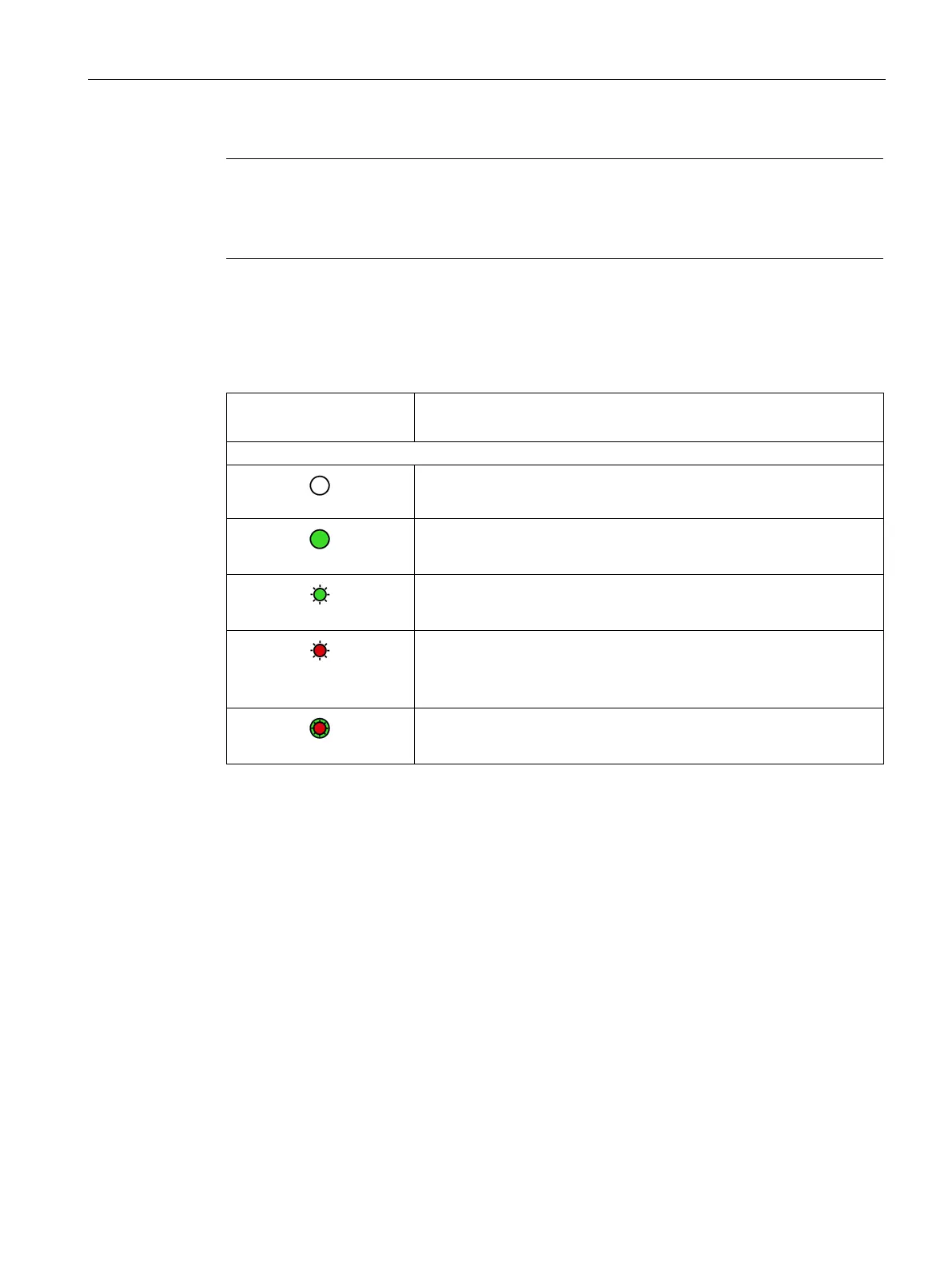

Table 2- 4 Display of the basic statuses of the CP
DIAG
(red / green)
Meaning
(if more than one point listed: alternative meaning)
Basic statuses of the CP
• Power OFF
• Incorrect startup
green
Running (RUN) without serious error
flashing green
• Partner not connected
• Firmware loaded successfully
flashing red
• Starting up
• Module fault
• Invalid STEP 7 project data
flashing red-green
Error loading firmware
