Application and properties
1.11 Connectors
CP 243-1
Operating Instructions, 03/2012, C79000-G8976-C244-02
39
1.11 Connectors

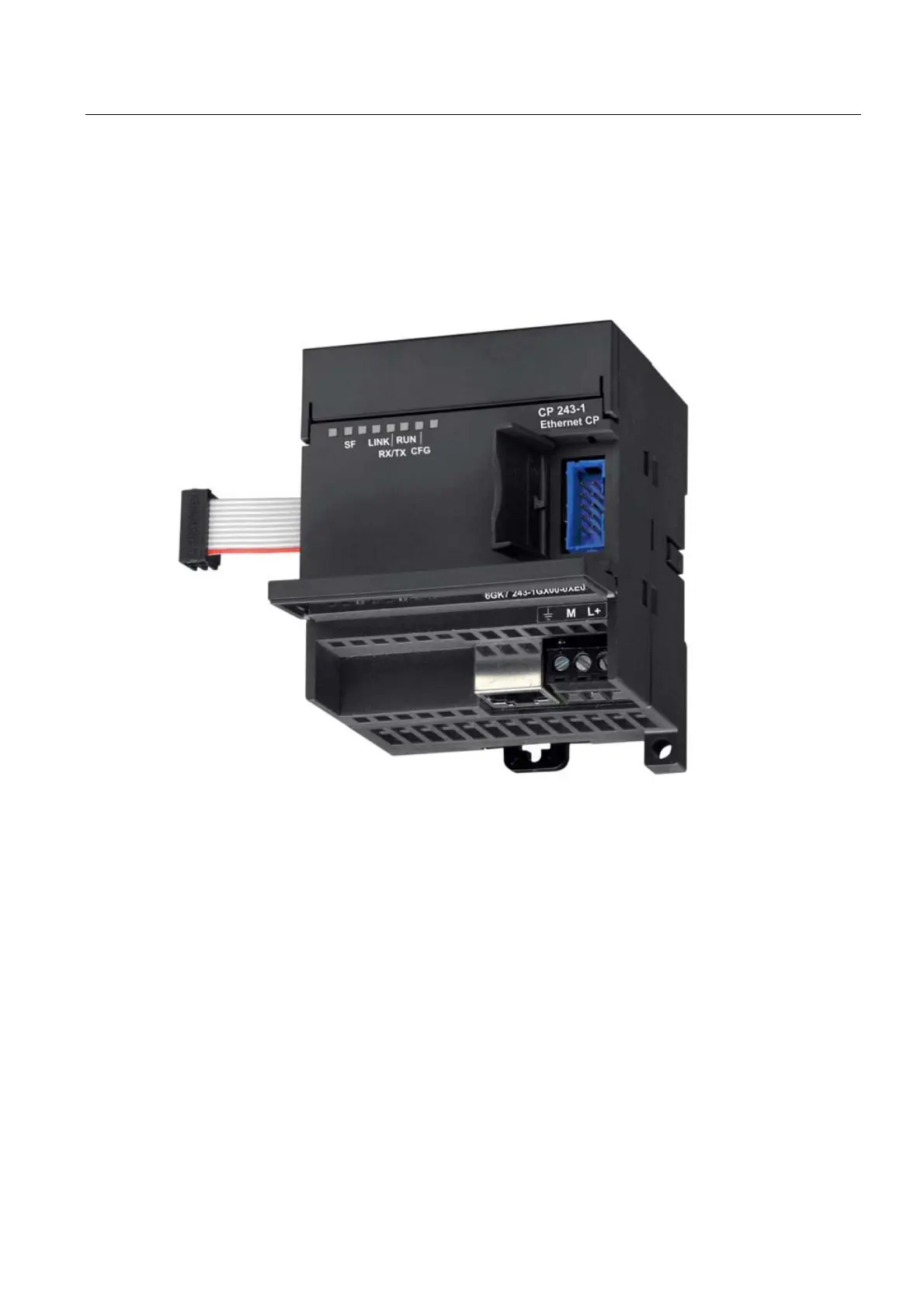

Front view:
Figure 1-3 Connectors
The CP 243-1 has the following connectors:
Terminal block for 24 V DC power and grounding connector
8-pin RJ-45 jack for Ethernet connector
Male connector for S7 bus
Integrated ribbon cable with connection socket for the S7 bus
The connectors are located under the covers of the front doors.
