Installation and commissioning
2.3 Dimensions for installation in a switching panel
CP 243-1
48 Operating Instructions, 03/2012, C79000-G8976-C244-02

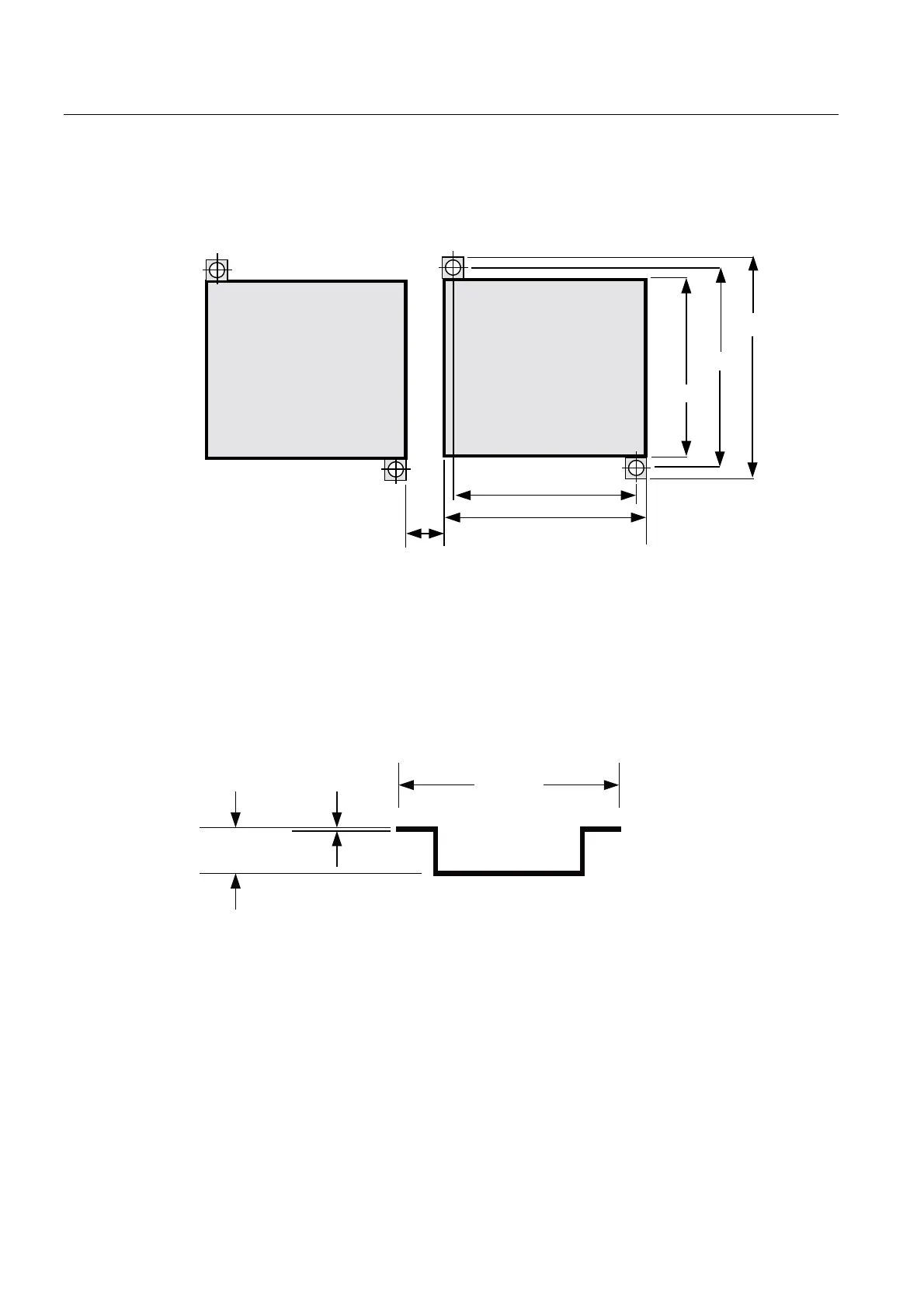

2.3 Dimensions for installation in a switching panel
The CP 243-1 has holes that make it easier to install in a switching panel.
CP 243-1
63.2 mm
71.2 mm
96 mm
88 mm
80 mm
Minimum distance of 9.5 mm
between the modules when
installed in control cabinets
via screws M4
CPU
Figure 2-2 Dimensions for installation in a switching panel
2.4 Dimensions for installation on a DIN rail
The CP 243-1 can be mounted on a DIN rail (DIN EN 50 022).
The following figure shows the dimensions of a standard DIN rail:
35 mm
7.5 mm
1.0 mm
Figure 2-3 Dimensions for installation on a DIN rail
