Mounting
3
Mounting options
The distributed inverter box is available in two mounting versions.

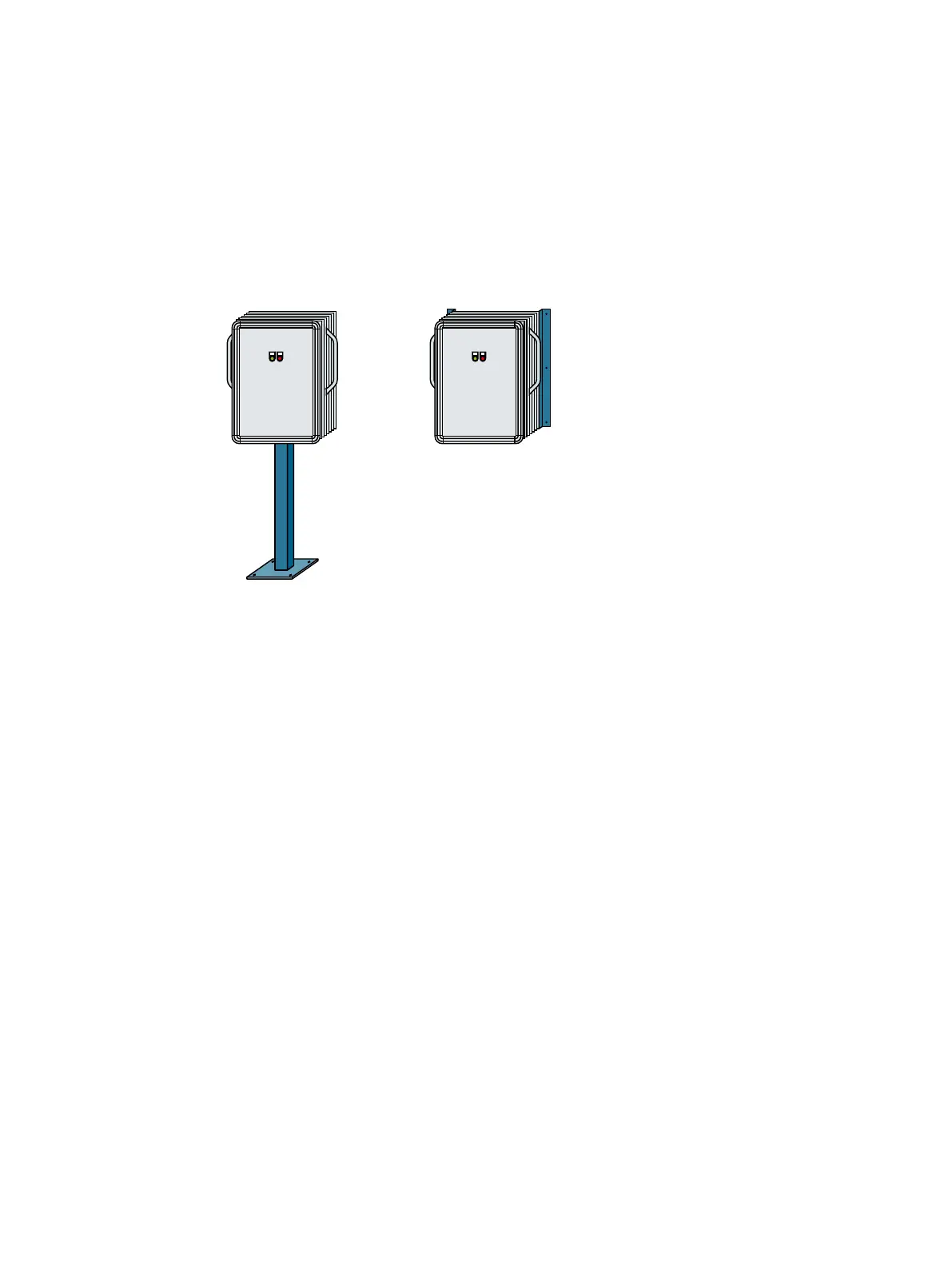

Figure 3-1 Floor mounting "With supporting foot" and wall mounting "With mounting brackets"
Clearance for heat dissipation
Maintain a clearance of at least 200 mm on all sides of the distributed inverter box to allow for
heat dissipation.
For mounting with mounting brackets, we recommend using vertical profile bars.
Distributed inverter box
Manual, 06/2018, A5E43491109B AB 9
