7. Mechanical design
7.1 General
The thermostats consist of 2 parts:
· Front panel with electronics, operating elements and built-in room temperature
sensor.
· Mounting base with power electronics.
The rear of the mounting base carries the screw terminals.
Slide the front panel in the mounting base and snap on.

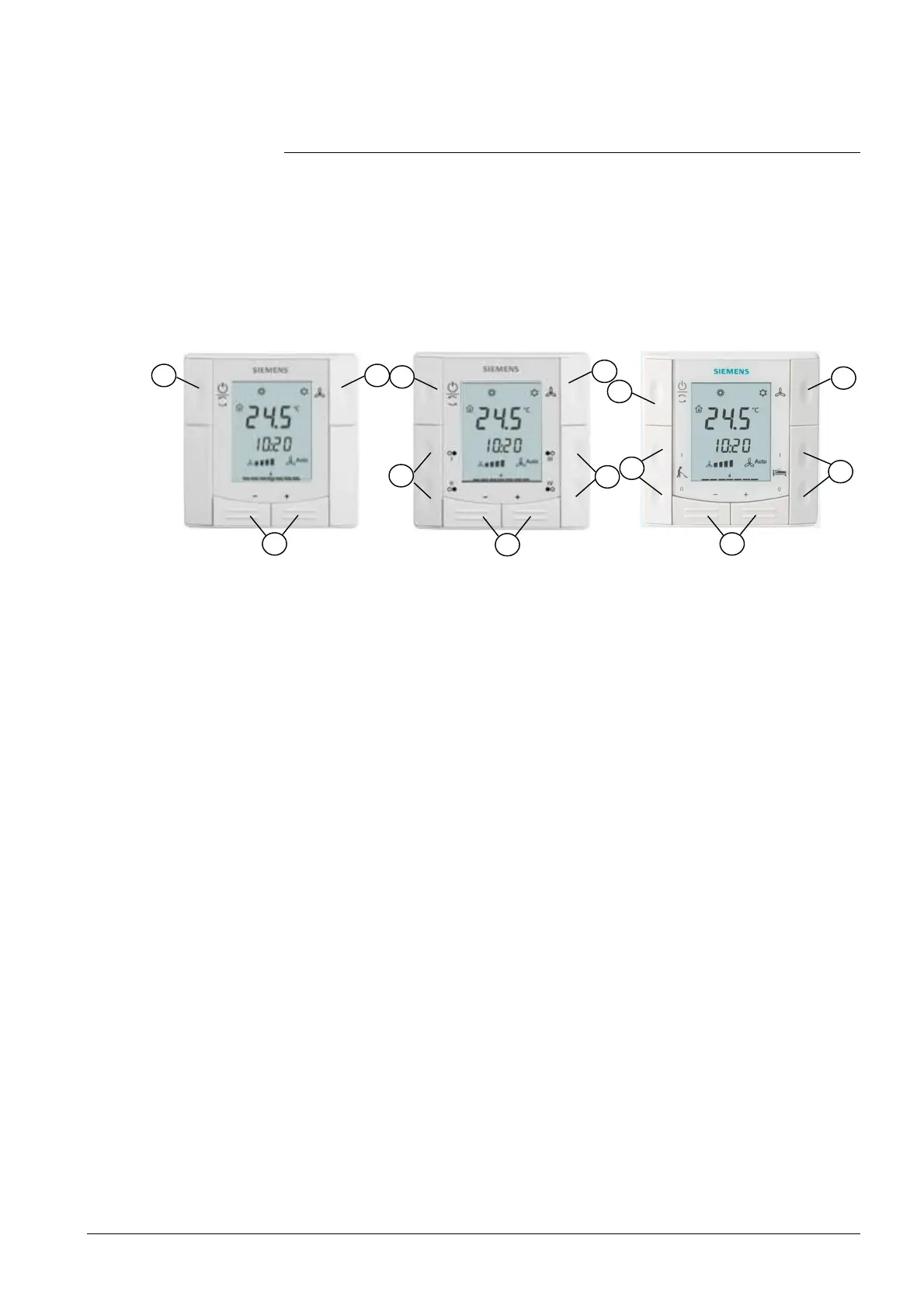

RDF301, RDF600KN,
RDF600KN/VB
RDF301.50, RDF600KN/S RDF301.50H
1 Operating mode selector
2 Button for fan operation
3 Buttons to adjust setpoints and control parameters
RDF301.50,
RDF600KN/S
4 Four buttons to control KNX actuators via KNX S-Mode
(functions: switching, dimming, blind control, 8-bit scene)
RDF301.50H 5 Four dedicated buttons for hotel functions (Make Up Room, Do Not Disturb)
via KNX S-Mode (functions: switching)
For operation, refer to section 4.3.
21
3
2
1
3
4
4
5
5
2
1
3
