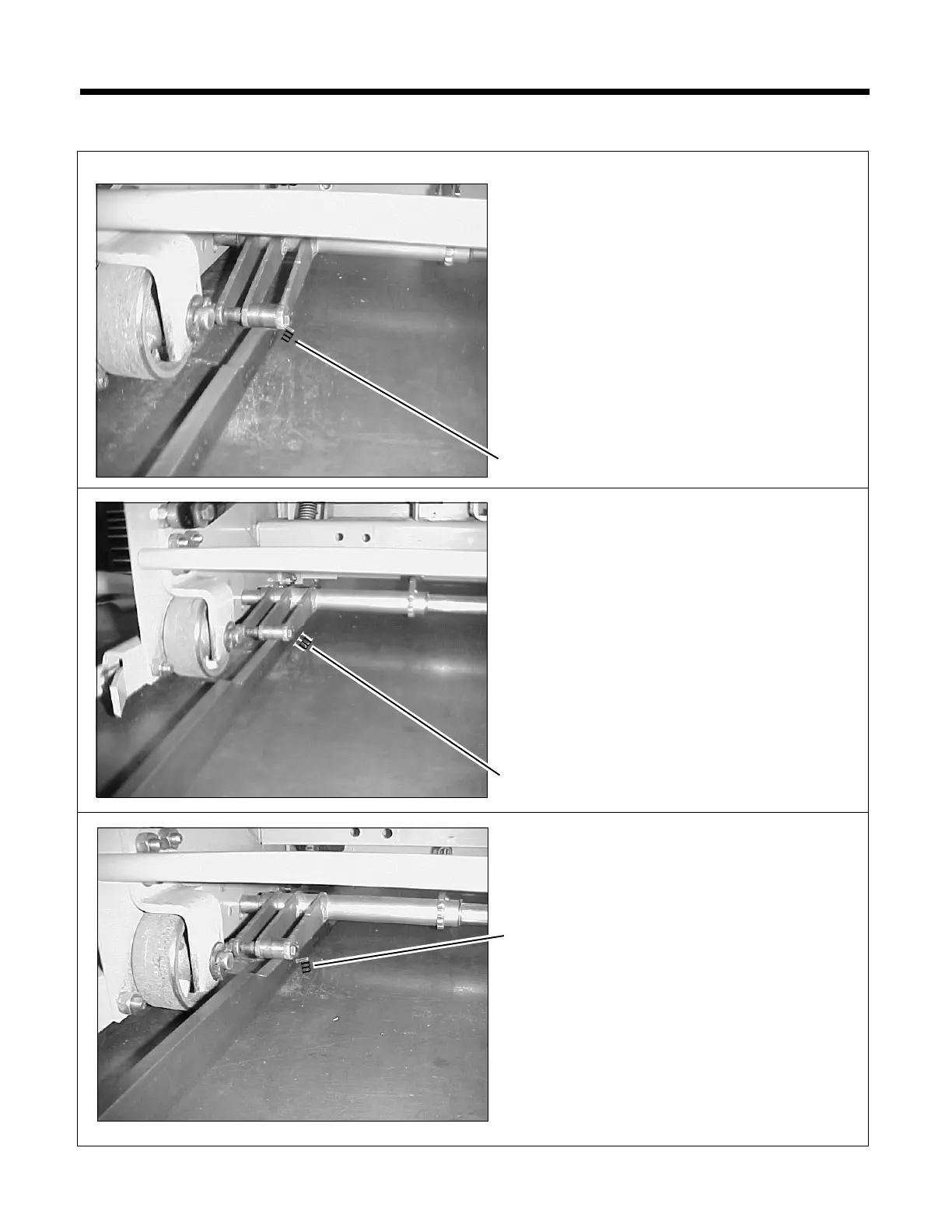

With the circuit breaker closing spring discharge
roller (large roller) displaced 0.19 inches above the
floor using the adjustment tool, the roller should
have some resistance to rotation but must be able
to be rotated manually.
Note: This is an initial setting and may be changed
per these instructions.
Step 2
Tighten the 9/16 inch jam-nut on the indicated
clevis. (Nut is shown in step 1)
0.19 inch step.
Step 3
Charge the circuit breaker closing spring until it is
latched and the closing spring indicator reads
CHARGED.
Step 4
Roll the circuit breaker closing spring discharge
roller (large roller) onto the 0.70 inch step of the
adjustment tool.
The circuit breaker closing spring should discharge,
the circuit breaker indicator should indicate OPEN
and the spring indicator should read DISCHARGED.
0.70 inch step.
Step 5
Roll the circuit breaker closing spring discharge
roller (large roller) onto the 0.80 inch step of the
adjustment tool and then off the tool.
0.80 inch step.
