3 System overview
The FC720 Cerberus PRO fire control panels can be operated as standalone
panels or networked into a fire detection system. Up to 32 stations (fire control
panels, fire terminals) are networked via the C-WEB/SAFEDLINK system bus. The
Cerberus PRO fire control panels support operation of the C-NET detector line.

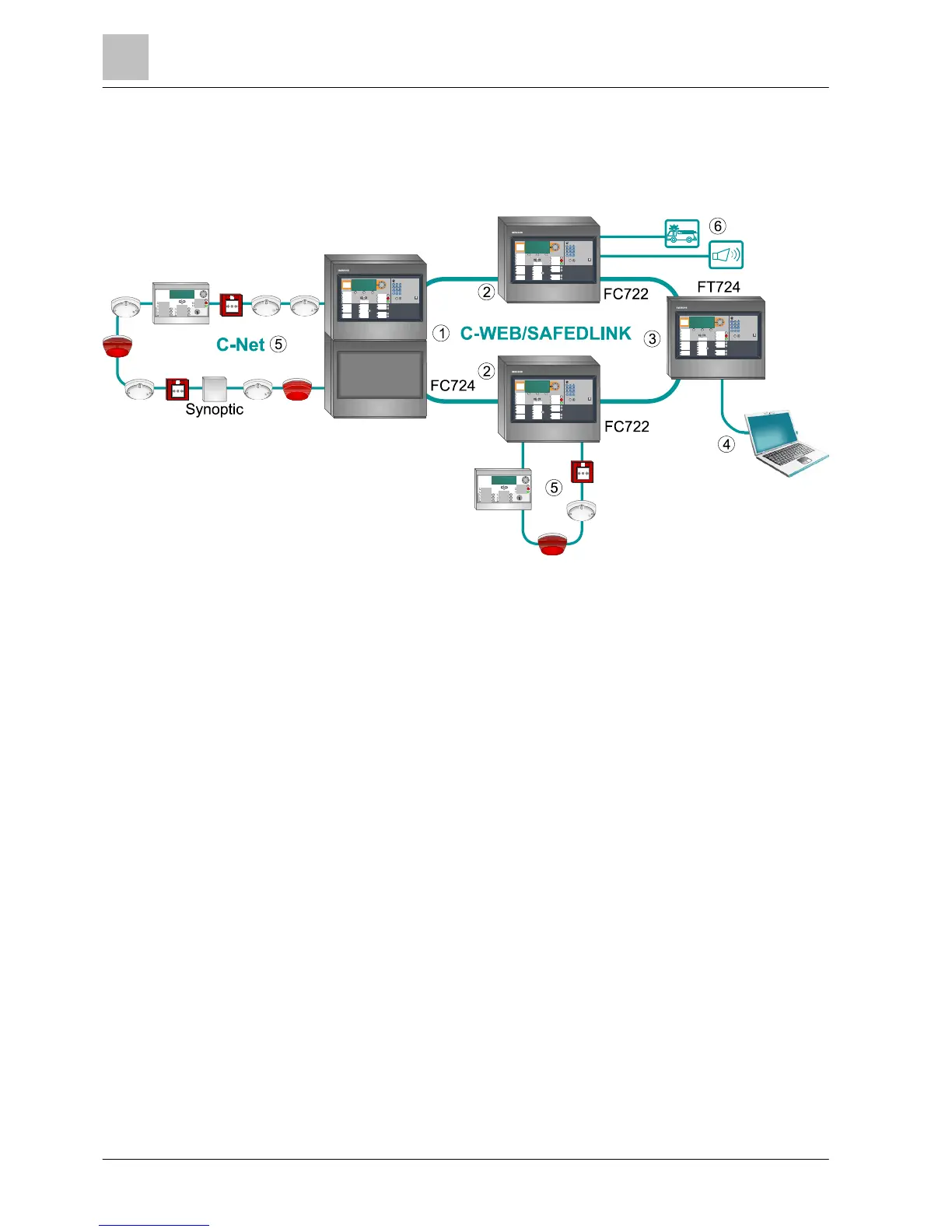

1 FC722 or FC724 fire control panel in Comfort housing
2 FC722 fire control panel in the Standard housing
3 FT724 fire terminal
4 Laptop or PC with Cerberus-Engineering-Tool software
5 C-NET detector line
6
Periphery e.g. RT alarm transmission installation or acoustic signal
transmitter etc.
