5.7 Wiring principle behind C-NET devices
The screw terminals for directly connecting the fire detection cable are integrated in
every C-NET line device. The connection terminals with input (+/-) and output (+/-)
are the same for all line devices, with the exception of the detector base.

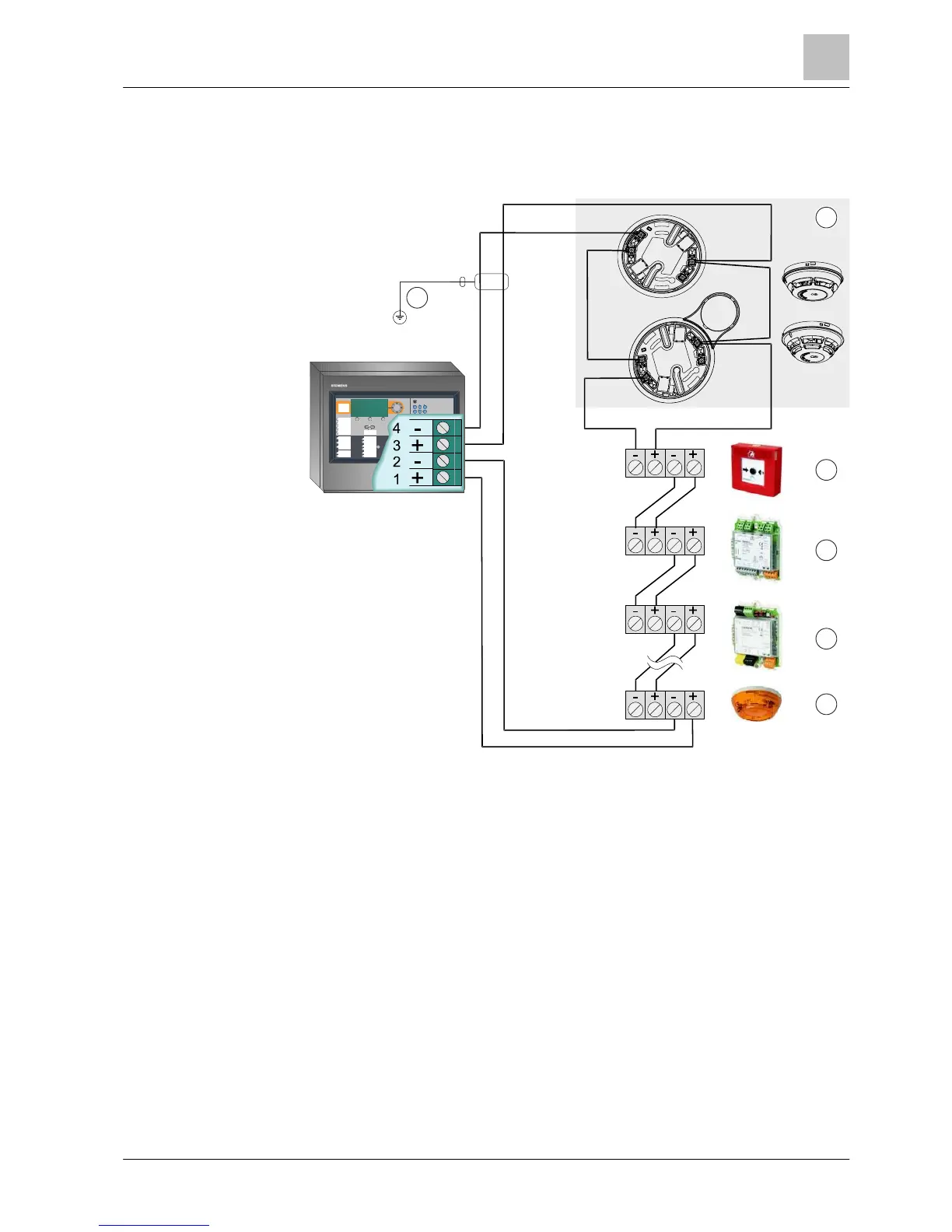

Figure 13: Wiring example of C-NET detector devices on loop
A
Connection terminal for detector base
and sounder base
1b Corresponds to +, input/output
5 Corresponds to –, input
6 Corresponds to –, output
S Shielded connection cable, optional
1 Manual call point 3 Transponder
2 Input/output modules 4 Alarm sounder with beacon
