Indication and operating elements
C
-
WEB network
6
44 | 62
Building Technologies
A6V10211094_f_en_
--
Fire Safety
2015
-
12
-
15

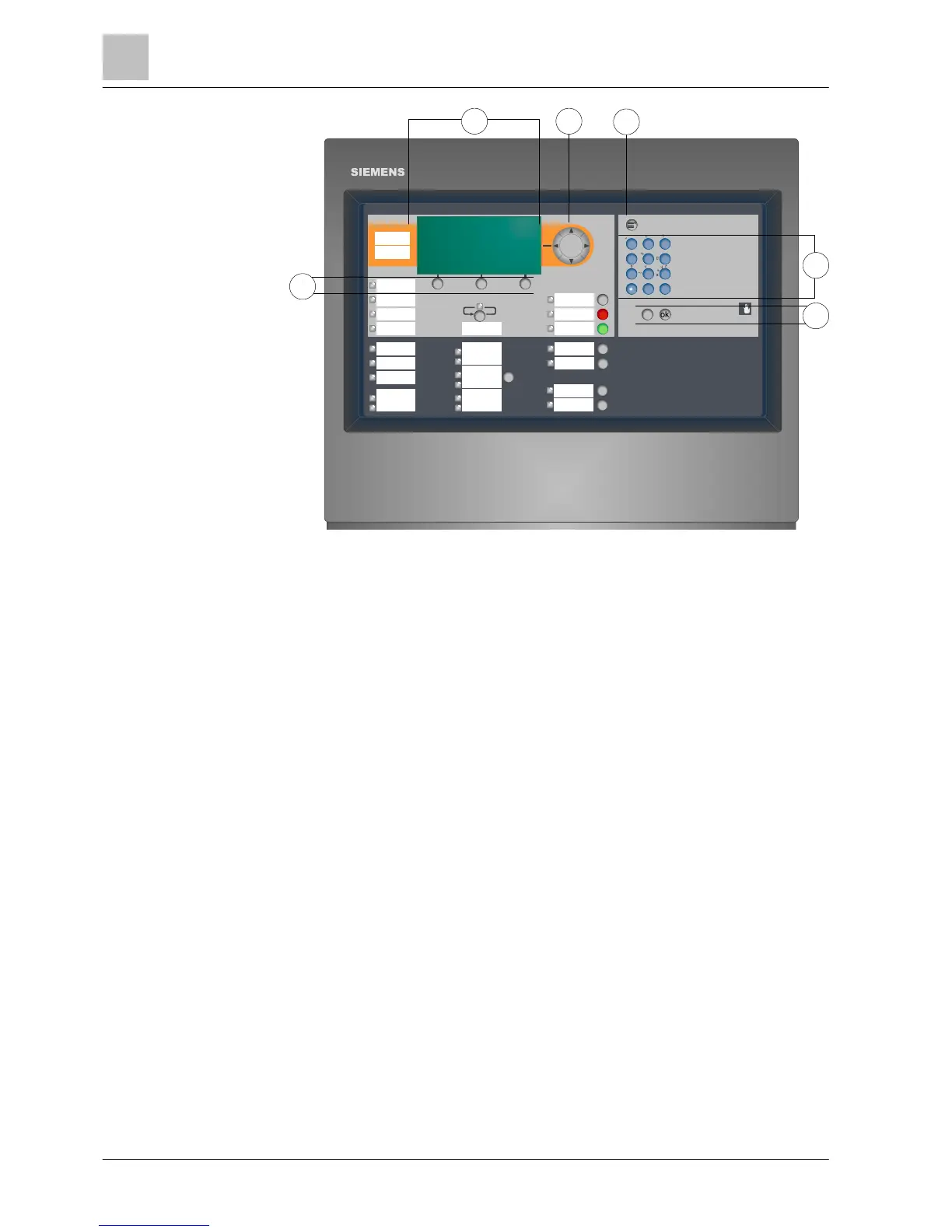

Figure 18: Operation and display front of Cerberus PRO fire control panel
1 Display, illuminated with plain text display
2 Cursor keypad for navigation/selection of menu items
3 Menu button
4
Keypad (for direct selections by entering numbers and/or entering and changing objects-specific display
texts)
5 C button (Cancel) and OK button (confirmation of selection)
6 Menu-dependent function keys (softkeys)
