Optional City Tie Mounting

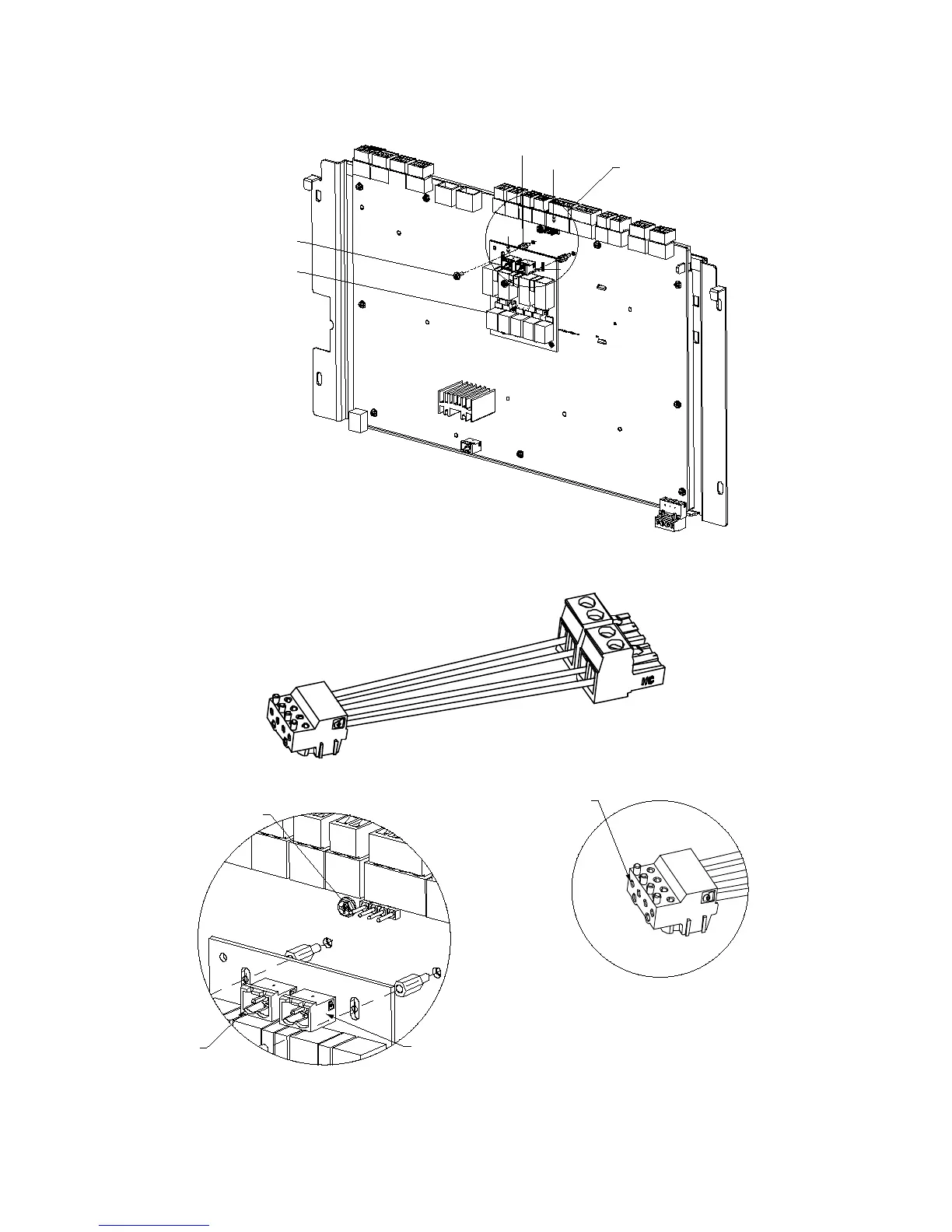

Secure the city tie to the main board using the two provided #4-32 x 3/8 screws.
Connect the city tie cable between city module and main board.
2 #4 screws
Spacer
T2
T1
T3
City tie
module
Detail A
T1
T2
T3
Detail A City tie cabling
X2 Output 2
Connect to T2
X3 Output 1
Connect to T3
From left to right:
TP1295,TP1294,TP1293,TP1292
Detail T1
From 1 to 4
TP1295,TP1294,TP1293,TP1292
1
2
3
4
