Siemens FC924 Installation Instructions

15
Siemens Industry, Inc. A6V10356958_en--_n
Smart Infrastructure

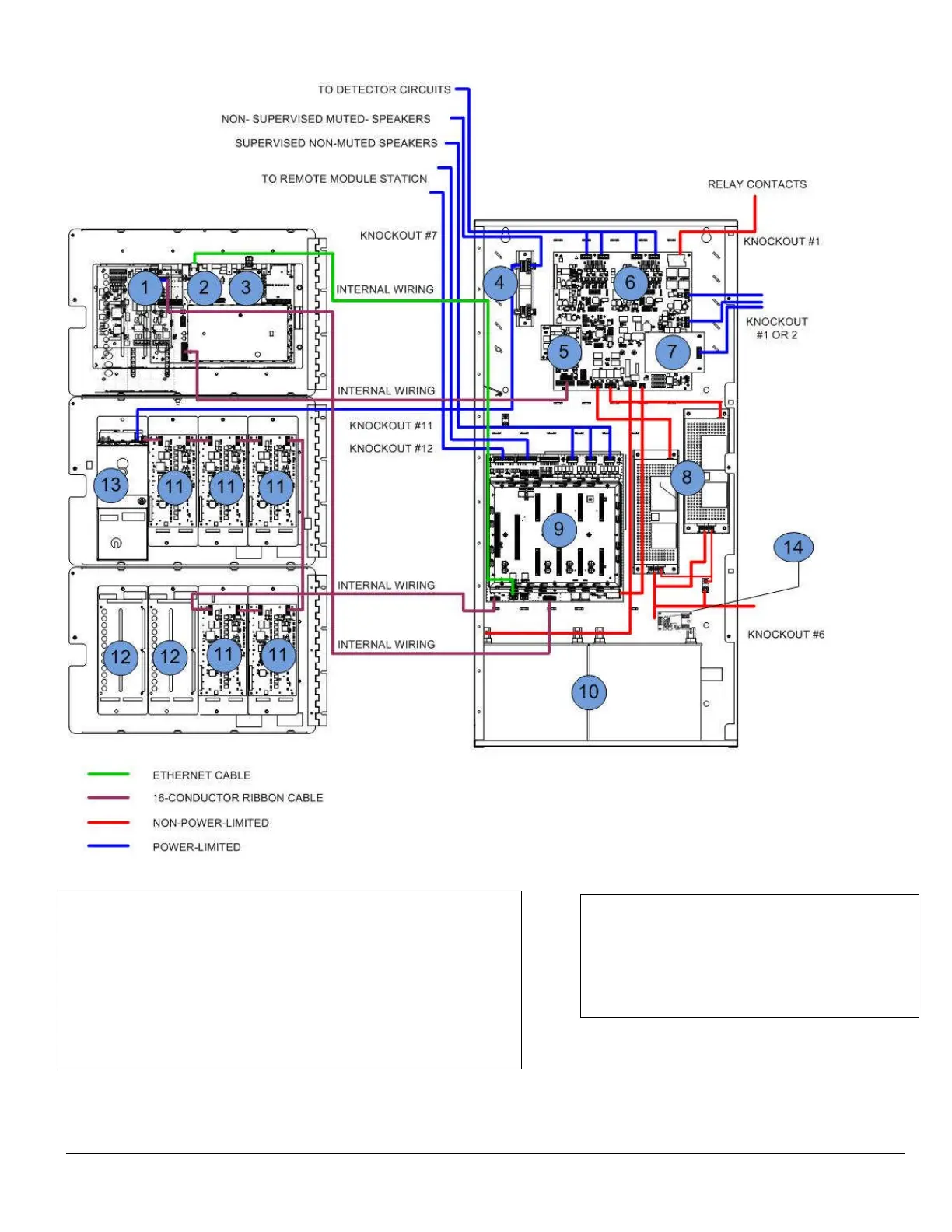

Figure 3: Module Location in 3HU Enclosure and Recommended Wire Routing
Module Locations
1. FCA2015-U1
2. FCM2018/FCM2019-U2/U3
3. FCA2016-A1
4. FHA2031-U1
5. FCI2020-U1
6. FCI2016/FCI2017-U1
7. FCI2011-U1 or XCI2001-U1
8. FP2013
-
U1
9. VCA2002-A1 [contains: VCI2001-U1,
VCC2001-A1, VCC2002-A1]
10. Battery set
11. VTO2001-U2/U3
12. FCM2022-U2/U3
13. VTO2004-U2/U3
14. FCA2032-U1
Recommended Wiring Routes
- Knockouts 1 and 6 are for non-
power limited wiring.
- Knockouts 2, 7, 10, 11, 12 are for
power limited wiring.
