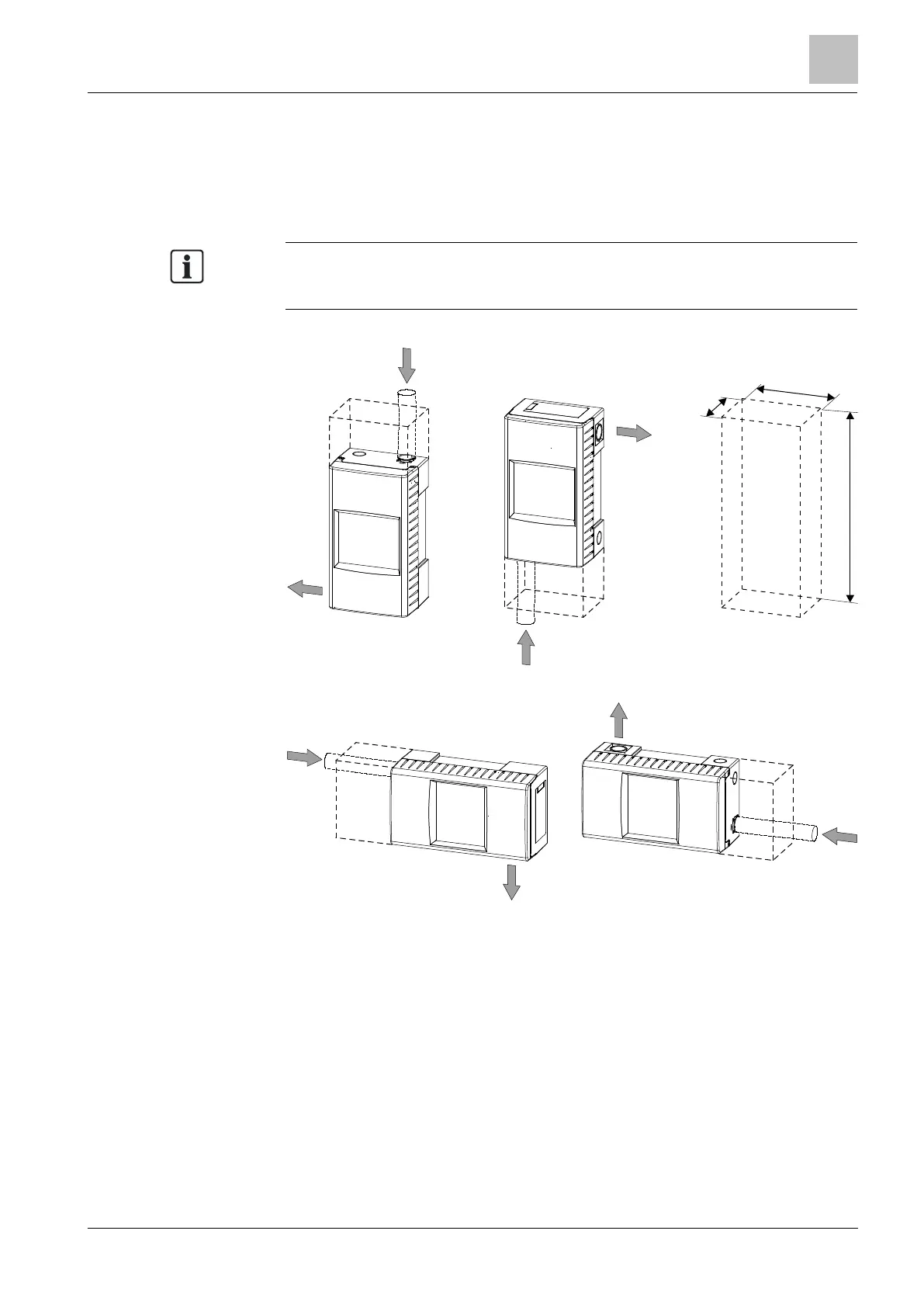

Installation position and space requirements
Four connection types are possible:
Standard: From above (A)
From below (B) when the aspirating smoke detector is installed rotated by 180°
From left (D) or right (E) when the aspirating smoke detector is installed
horizontally
When the aspirating smoke detector is installed horizontally, no adapted
alignment of the front panel is possible. See 'Adapting the front indicator to the
installation position'.
410 mm
1
7
0
mm
1
2
0
m
m
A B
C
D E
Installation position
Space required by the aspirating smoke detector when the housing cover is
open
