2 Installation
2.1 Installation in FS20/FS920 housing
The Ethernet switch (modular) FN2012 can be installed in all FS20/FS920 housings
(1HU and 2HU). The example below illustrates installation in a fire control panel in the
housing (2HU).
If the Ethernet switch (modular) is used as a repeater, it is installed as a separate
component in an external housing (1HU).

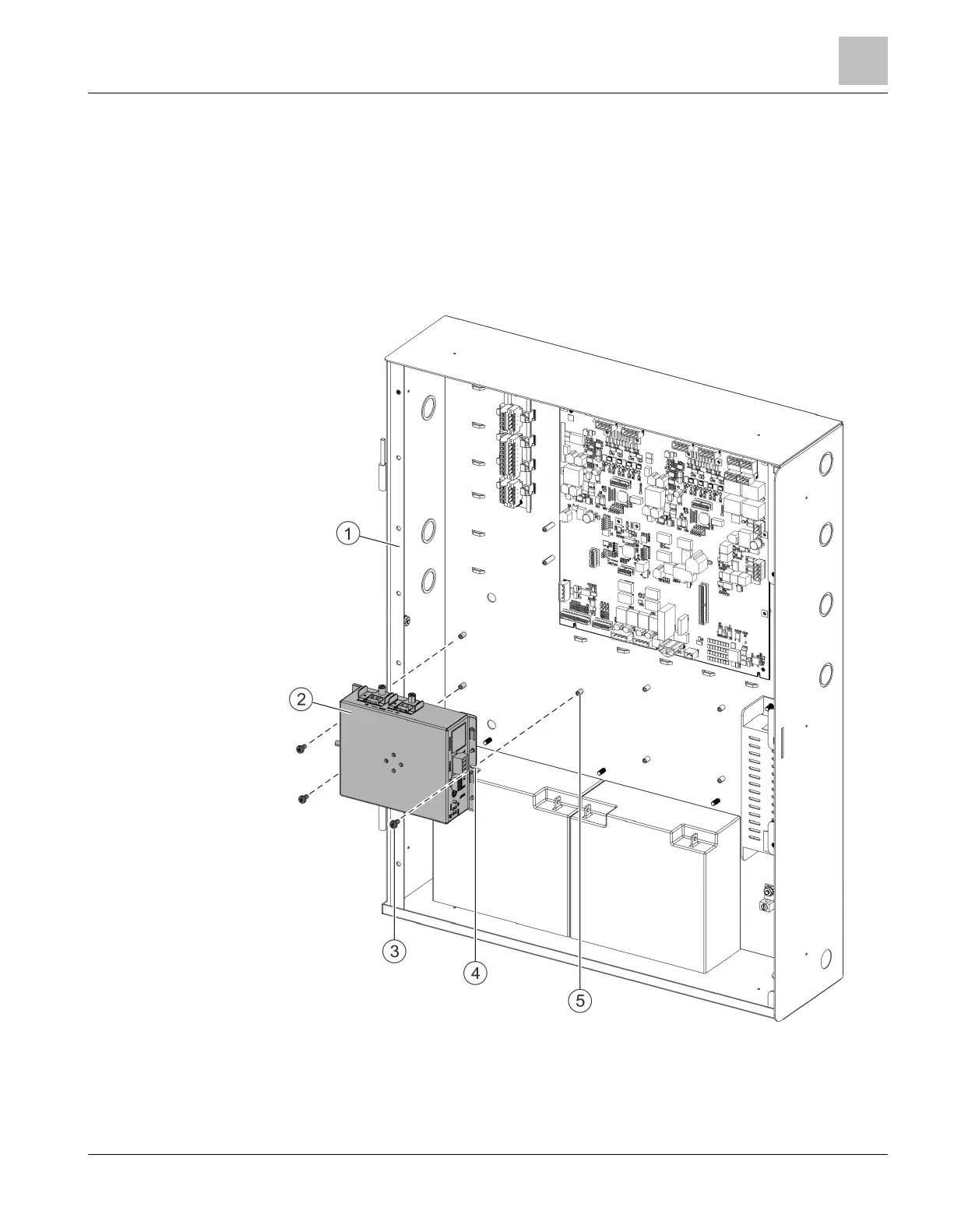

Figure 1: Installing the Ethernet switch (modular) in housings (2HU)
1 Housing back box
2 Ethernet switch (modular) with Ethernet modules installed
