Installing fire terminal board FTI2001

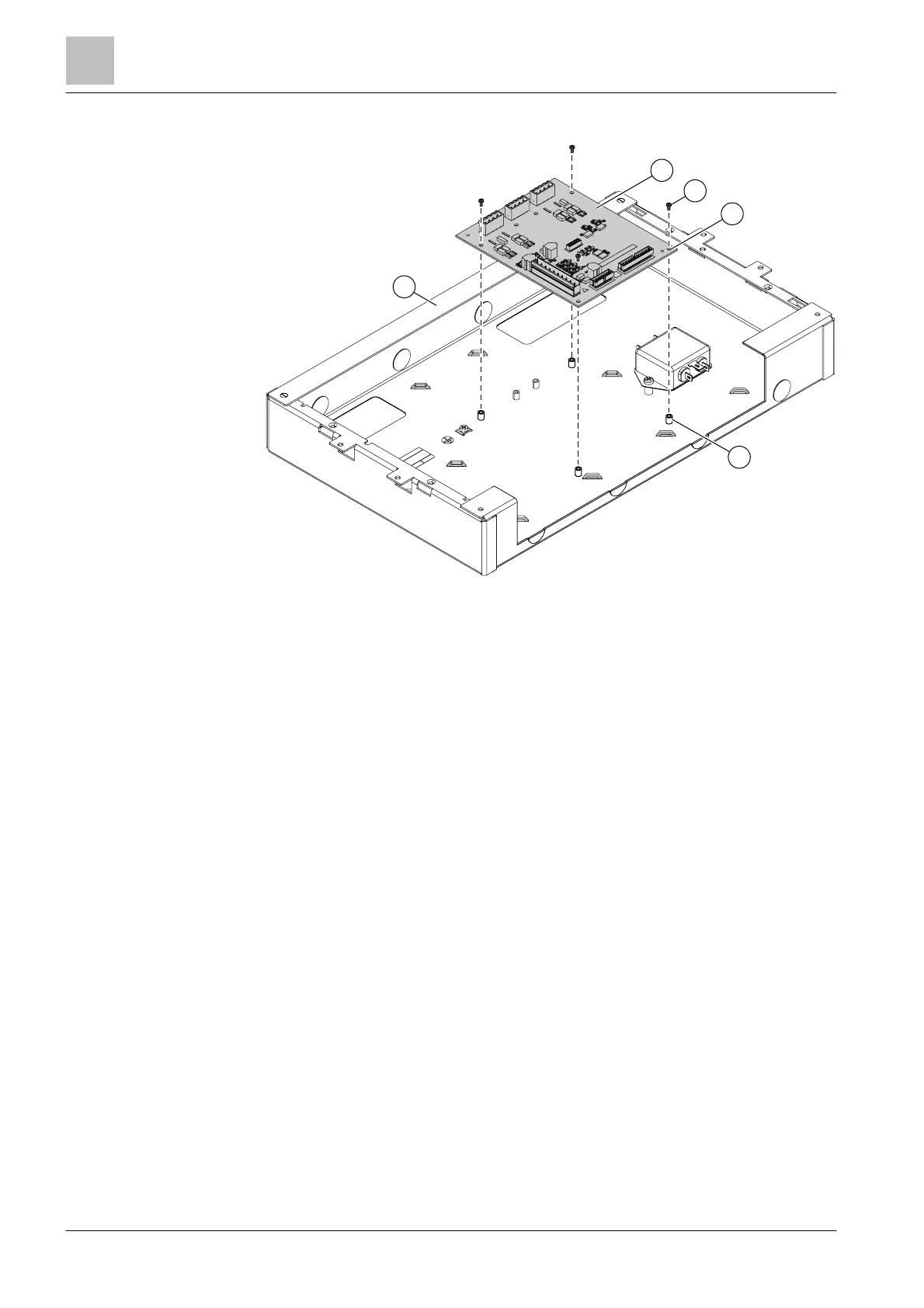

Figure 9: Installing the fire terminal board in the rear cover (FT2080)
1 Rear panel (FT2080) FHA2039
2 Fire terminal board FTI2001
3 4x fixing screws
4 4x mounting holes
5 Threaded press-in sleeves in rear cover (FT2080)
1. Position the fire terminal board (2) in the rear panel (1) as shown.
2. Use the four fixing screws (3) to screw the fire terminal board (2) in the rear
panel (1) firmly onto the threaded press-in sleeves (5).
