Installation in rear panel (FT2080) FHA2039
4
13 |
Building Technologies
Wiring the fire terminal (Touch)
When installing in a desktop that is thicker than 33 mm, the cables must be routed
through the rectangular openings of the rear panel (FT2080), and not through the
round cable breakthroughs.

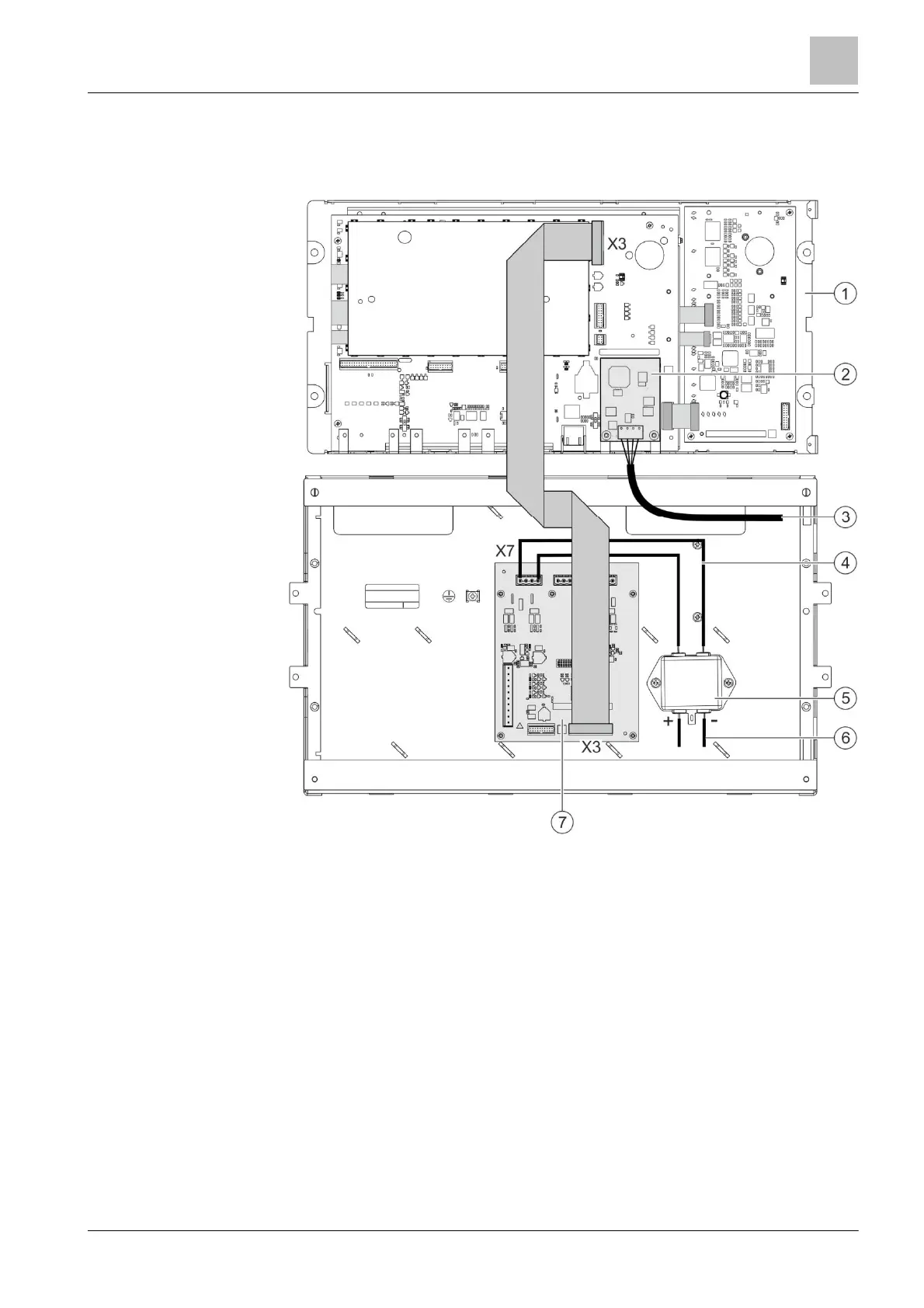

Figure 10: Wiring view of the fire terminal (Touch) in the rear cover (FT2080)
1 Fire terminal (Touch) FT2080
2 Network module (FCnet/SAFEDLINK) FN2001
3 FCnet connection cable
4 Prefabricated cable for supply connection to X7
5 EMC filter
6 Input for DC 24 V system supply to EMC filter
7 Fire terminal board FTI2001
1. Wire up the flat cable from the fire terminal board X3 to the PMI & mainboard
X3.
2. Wire up the prefabricated cable of the supply from the EMC filter to the fire
terminal board X7.
3. Wire up the external cables of the supply, the FCnet and the Ethernet cable
through the cut-out in the desktop and the cable lead-throughs in the rear
panel.
