Installing the fire terminal (Touch)

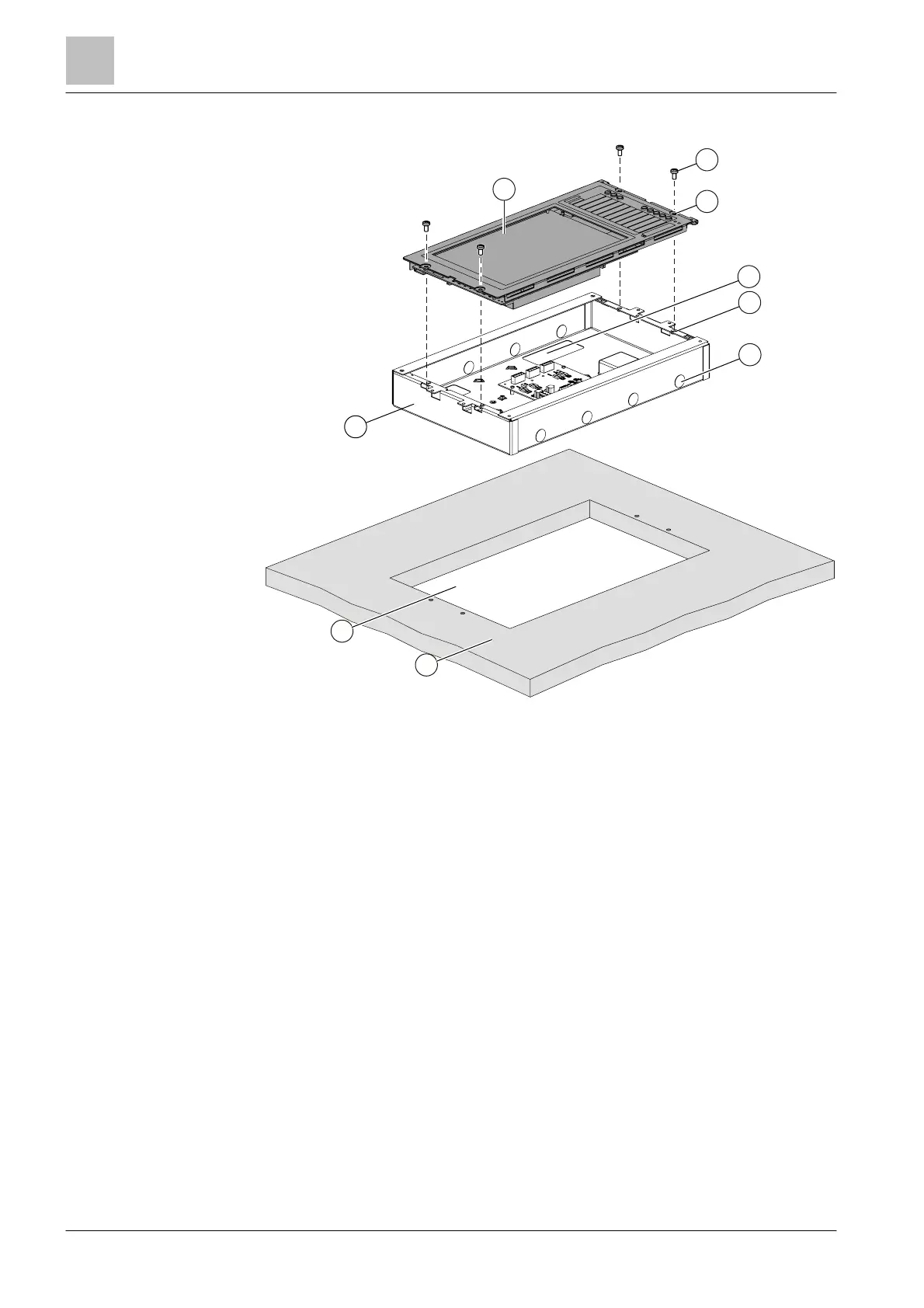

Figure 11: Installing the fire terminal (Touch) in the rear panel (Touch)
1 Fire terminal (Touch) FT2080
2 4x fixing screws
3 4x mounting holes in the fire terminal (Touch)
4 Cable lead-through in the rear panel
5 4x threaded holes in the rear cover (FT2080)
6 Lateral cable lead-throughs
7 Rear panel (FT2080) FHA2039
8 Cut-out in the desktop
9 Desktop
1. Position the wired-up fire terminal (Touch) (1) on the rear panel (7) as shown.
2. Screw the four fixing screws (2) through the holes (3) to secure the fire terminal
(Touch) (1) into the threaded holes (5) in the rear panel.
