Installation in desktop housing (FT2080) FHA2040
5
19 |
Building Technologies
Assembly of desktop housing (FT2080)

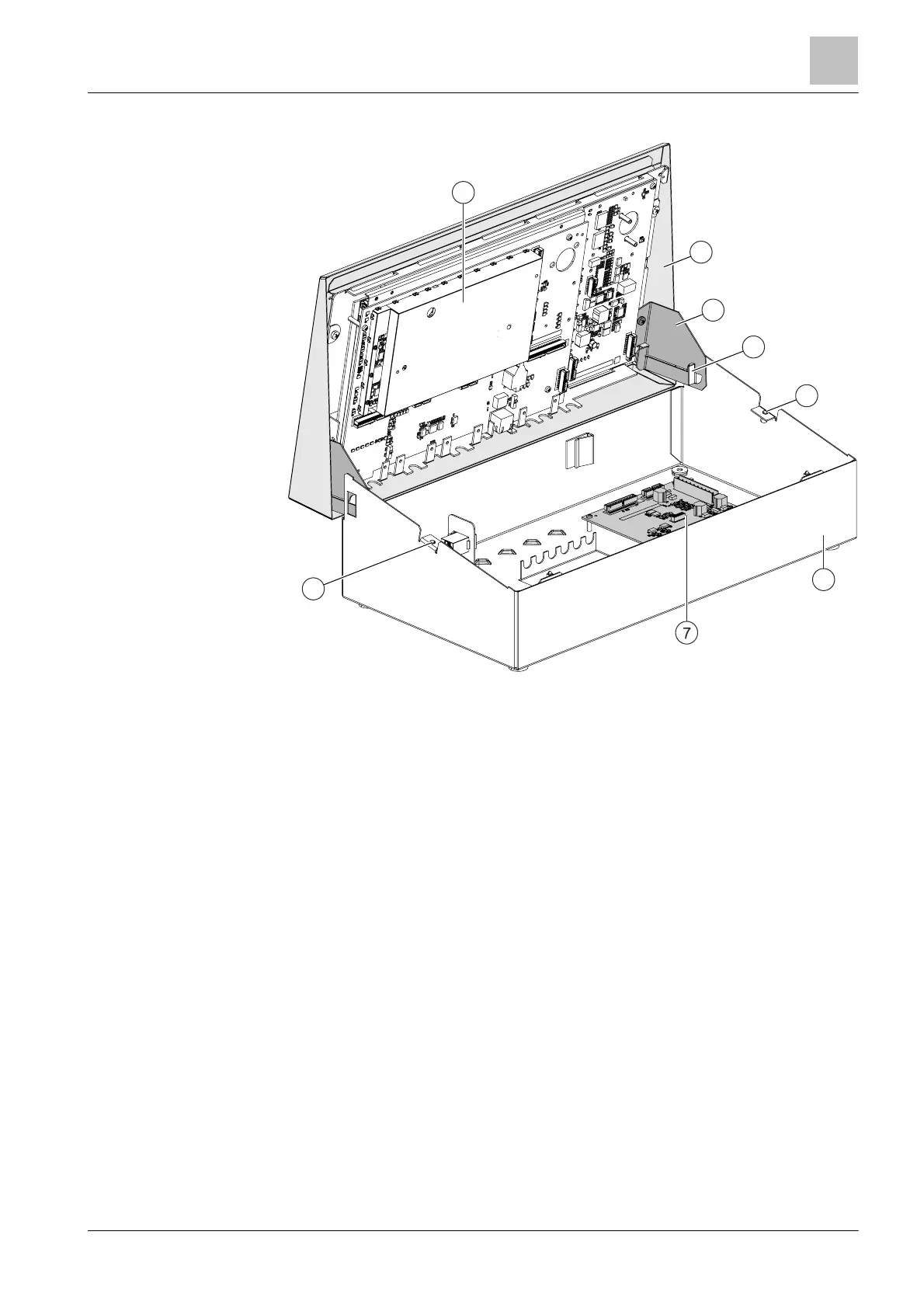

Figure 16: Assembly of desktop housing
1 Fire terminal (Touch) FT2080
2 Top of desktop housing (FT2080) FHA2040
3 Tilting brackets on left and right for fixing the top of the housing
4 Guide cams on left and right for tilting brackets
5 2x threaded holes for fixing the top of the housing
6 Base of desktop housing
7 Fire terminal board FTI2001
1. Move the top of the housing (2) with the installed fire terminal (1) to the position
shown.
2. Gently press the two tilting brackets (3) inwards and lift the top of the
housing (2) into the two guide cams (4).
a The top of the housing is fixed in the open position and the tilting brackets
act like hinges.
