Siemens FT2080 Mounting & Installation

Installation in desktop hous
ing (FT2080) FHA2040
5
21 |
24
Building Technologies
A6V10462660_en
--
_b
Fire Safety
2016
-
04
-
08
Fire terminal wiring

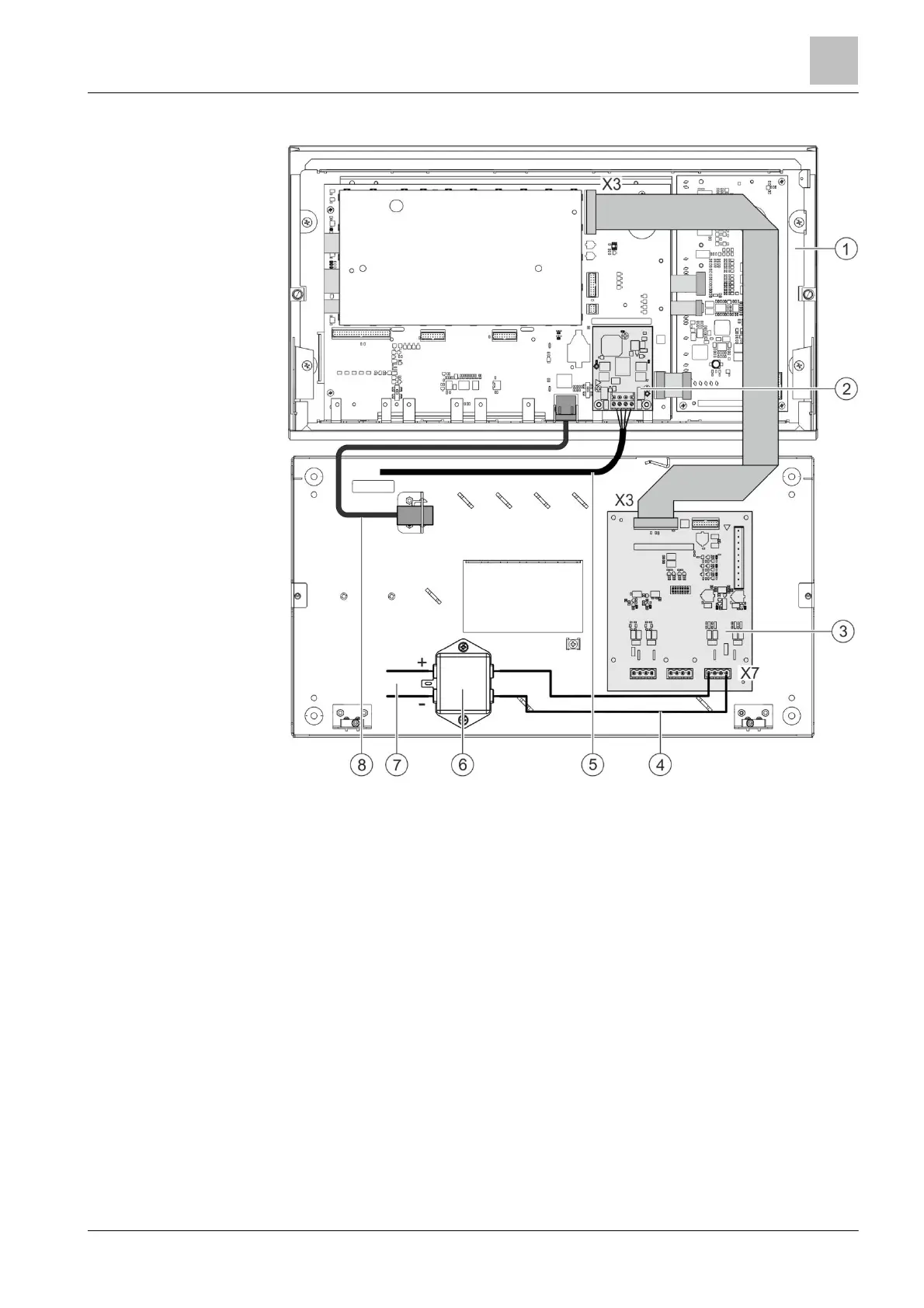

Figure 18: Wiring view of the fire terminal in the desktop housing
1 Fire terminal (Touch) FT2080
2 Network module (FCnet/SAFEDLINK) FN2001
3 Fire terminal board FTI2001
4 Prefabricated cable for supply connection to X7 fire terminal board
5 FCnet connection cable
6 EMC filter
7 Input for DC 24 V system supply to EMC filter
8 Internal cable RJ45 for Ethernet connection, L=420 mm
