Building Technologies Basic Documentation LMV5... CC1P7550en
3 Fuel train (examples) 22.05.2018
PS
min
V1
7550s03E/0499
LO
Program
1-stage burner

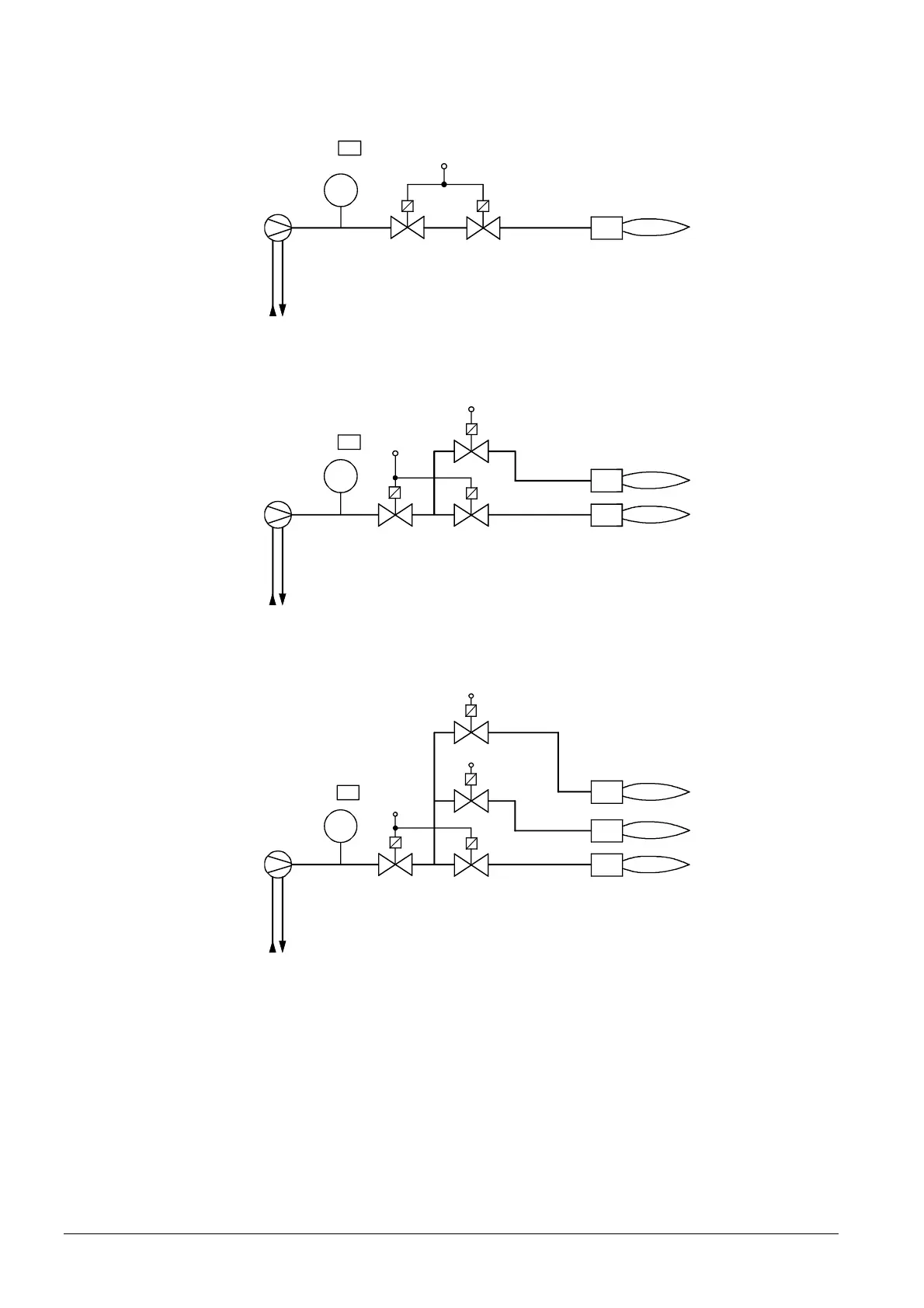

Figure 11: Fuel train application – light oil direct ignition, 1-stage
V1
V2
7550s04E/0800
PS
min
LO
Program
2-stage burner
Figure 12: Fuel train application – light oil direct ignition, 2-stage
V1
V2
7550s05E/080 0
PS
min
V3
LO
Program
3-stage burner
Figure 13: Fuel train application – light oil direct ignition, 3-stage
Fuel train applications
(cont‘d)
Direct ignition with
light oil, multistage
