Frei verwendbar House Control with Master-Slave - LOGO! Set 9
Entry ID: 64143308, V2.2, 09/2018
17
© Siemens AG
2018 All rights reserved
No.
Action/response

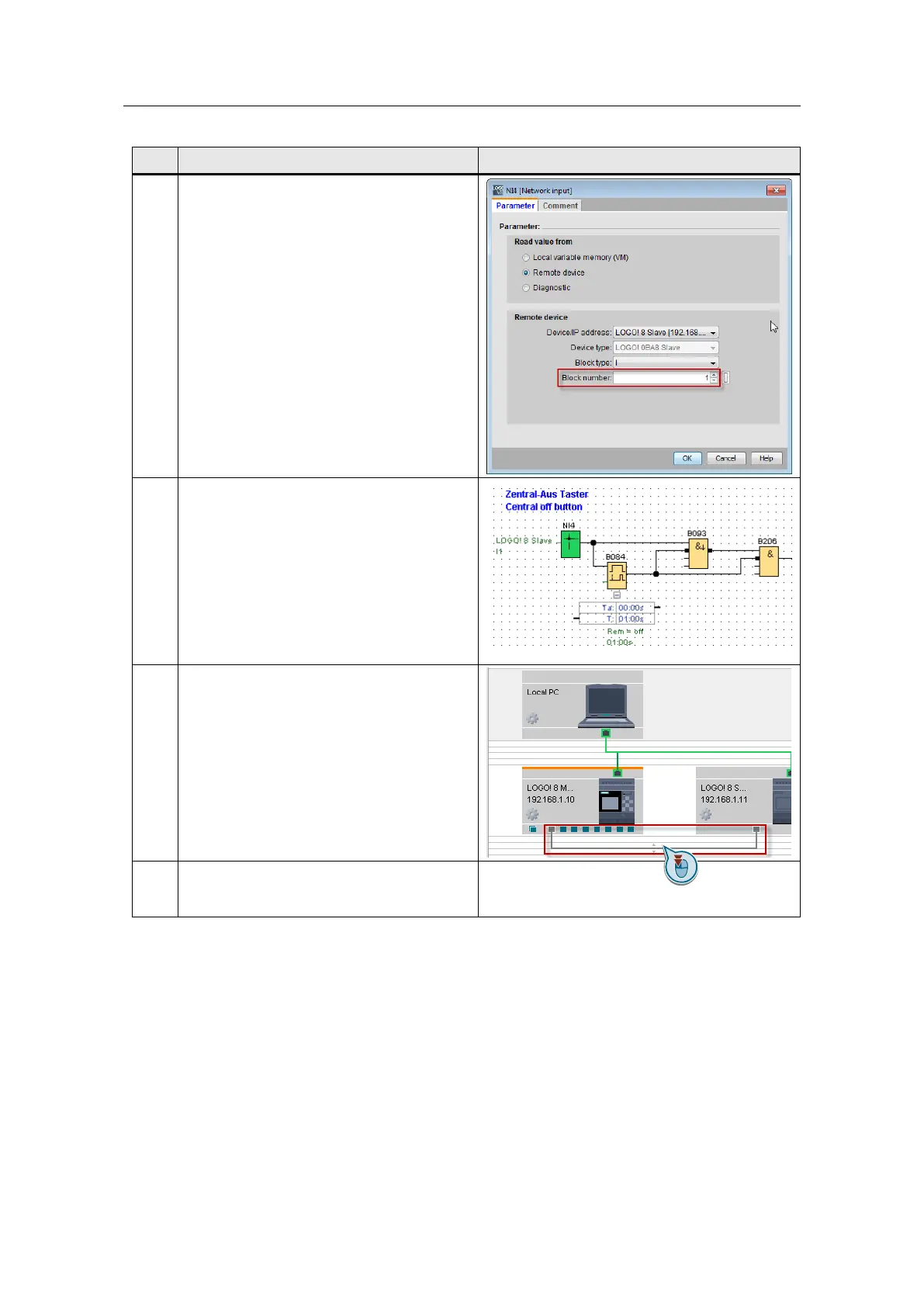

LOGO! Soft Comfort V8
9.
Then you need to define which slave LOGO!
input you want to read.
10.
The digital network input is displayed in
green, which means that LOGO!-Soft
Comfort V8 has automatically created an
Ethernet connection and a data transfer
mechanism between the master and the
slave LOGO!.
Note:
If the digital network input is displayed in red,
the communication between master and
slave LOGO! is not available anymore.
11.
A connecting line has automatically been
created between master and slave LOGO!,
which means that both devices are
communicating with each other.
Note:
Double-click on the connecting line to open
the connection settings with information on
Ethernet connection and data transfer.
12.
Repeat the steps from this table to specify
data transfer for additional inputs and outputs
of the slave LOGO!.

Siemens LOGO! 8 Specifications

General

Model	LOGO! 8
Programming	LOGO! Soft Comfort
Memory	400 function blocks
Real-time clock	Yes
Protection class	IP20
Digital inputs	8 integrated
Digital outputs	4 integrated
Analog inputs	2 integrated
Communication	Ethernet
Supply Voltage	12/24V DC
Operating temperature	0 to 55 °C
