MICROMASTER Vector inverters must be secured to a suitable vertical surface by bolts, washers and nuts. Frame size A units need
two bolts or can be DIN rail mounted. Frame size B and C units require four bolts.

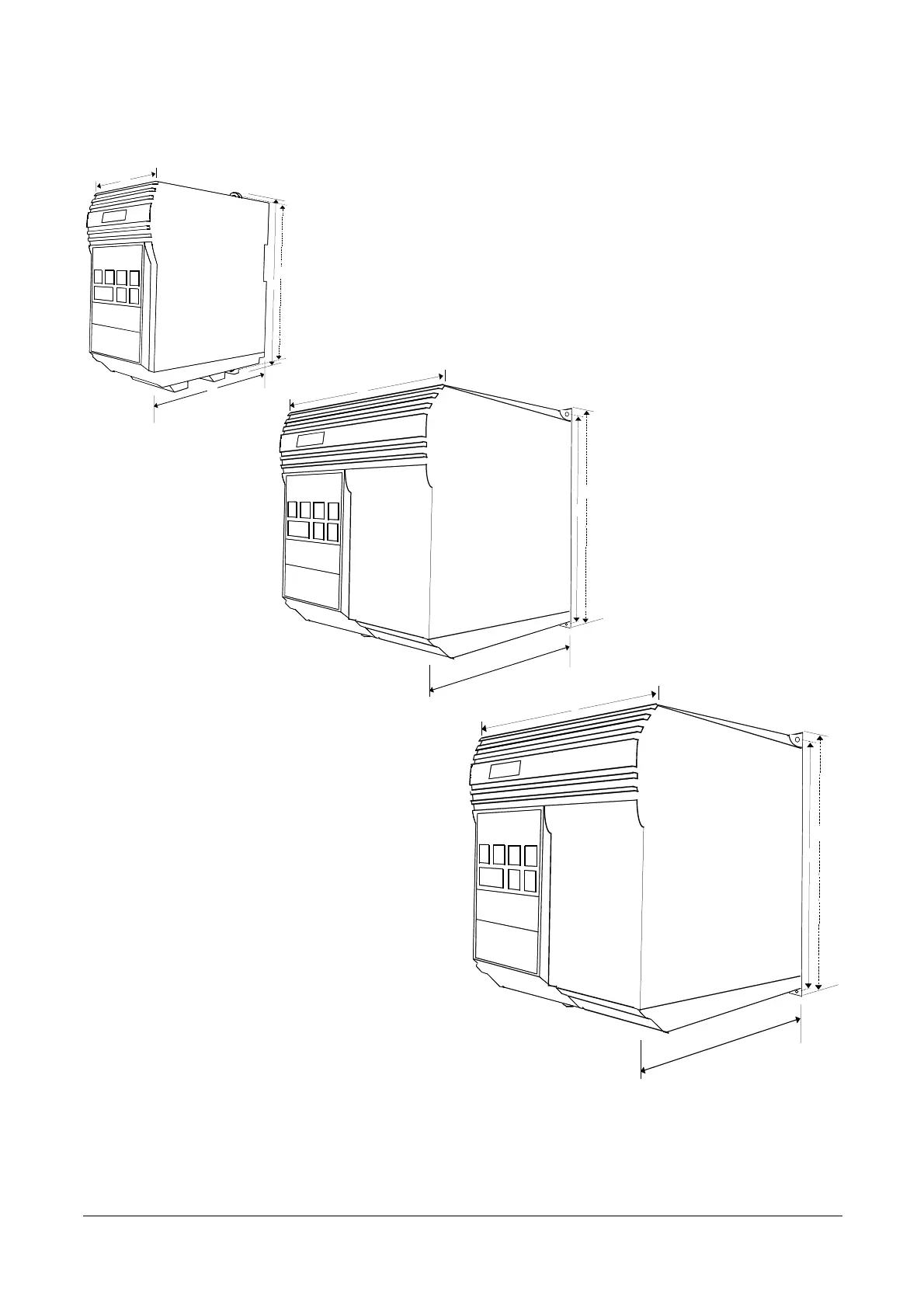

Figure 2.1.1: MICROMASTER Vector - Frame Size A, B and C
W
H
D
H1
A
W
D
H1
H
B
W
D
H1
H
C
