English 2. INSTALLATION – MICROMASTER Vector
G85139-H1751-U529-D1 © Siemens plc 199
9
4/8/99
14
DIN Rail
Depth D
W
H2H1
F
Æ
Æ
= 4.5 mm
Depth D
W
HH1
Æ
Æ
= 4.8 mm (B)
Æ
= 5.6 mm (C)
W1
Frame Size A Frame Sizes B and C
Frame size B:
4 bolts M4
4 nuts M4
4 washers M4
2 bolts M4
2 nuts M4
2 washers M4
Frame size C:
4 bolts M5
4 nuts M5
4 washers M5
H
H2
Tightening Torque
(with washers fitted)
2.5 Nm Frame size A and
B
3.0 Nm Frame size C
Model
MMVxxx
1 AC 230V
Class A
Filter
MMVxxx/2
1/3 AC
230V
Without
Filter
MMVxxx/3
3 AC 380 -
500V
Without
Filter
Frame Sizes
(all measurements in mm)
MMV12
MMV25
MMV37
MMV55
MMV75
MMV110
MMV150
MMV220
MMV300
MMV400
MMV550
MMV750
A
A
A
A
A
B
B
C
C
-
-
-
A
A
A
A
A
B
B
C
C
C
-
-
-
-
A
A
A
A
A
B*
B*
C*
C*
C*
H W D H1 H2 W1 F
A = 147 x 73 x 141 160 175 - 55
B = 184 x 149 x 172 174 184 138 -
C = 215 x 185 x 195 204 232 174 -
* These units also available with built in filter e.g. MMV220/3F

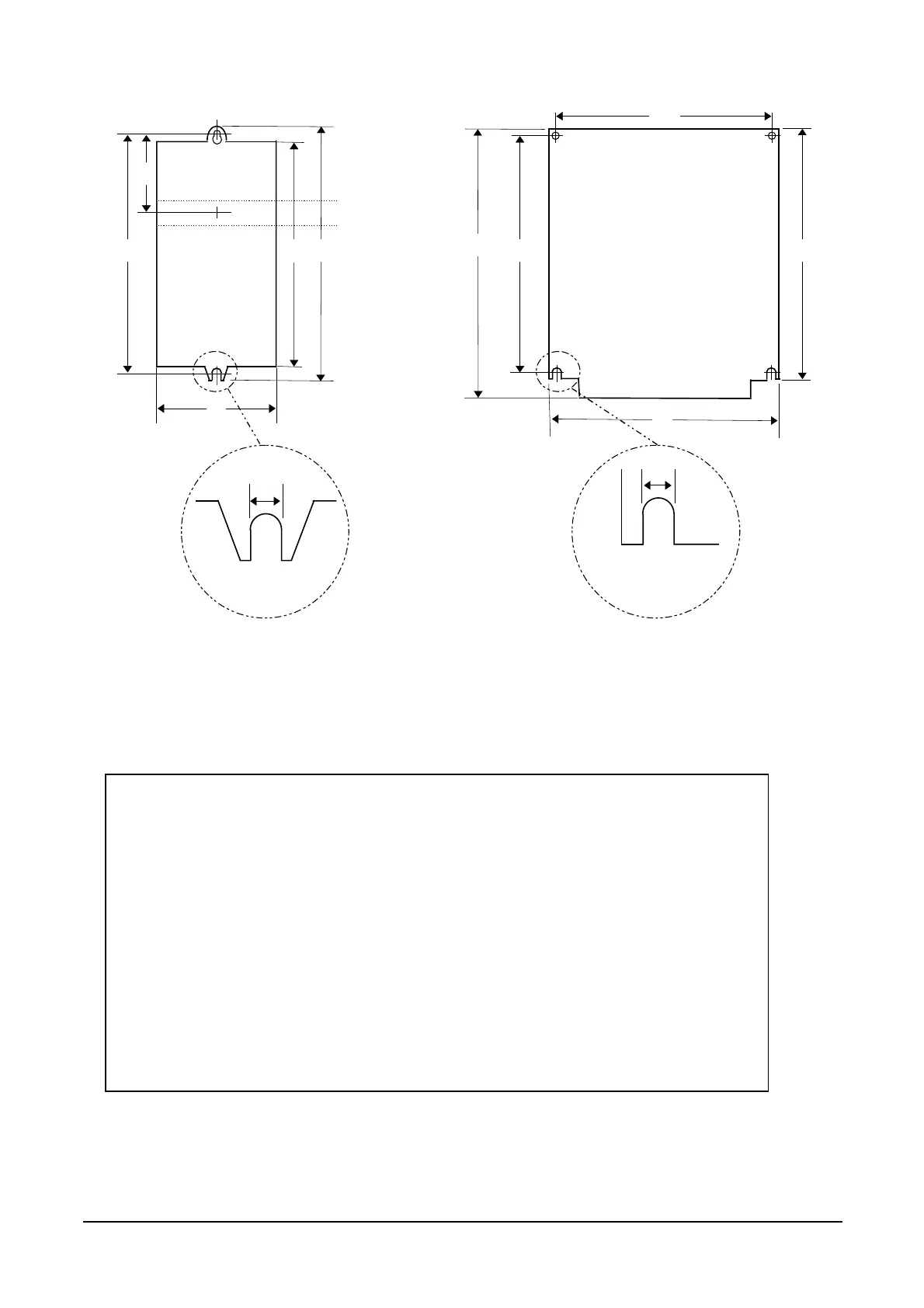

Figure 2.1.2: Mechanical Installation Diagram - MICROMASTER Vector
