Installing/Mounting

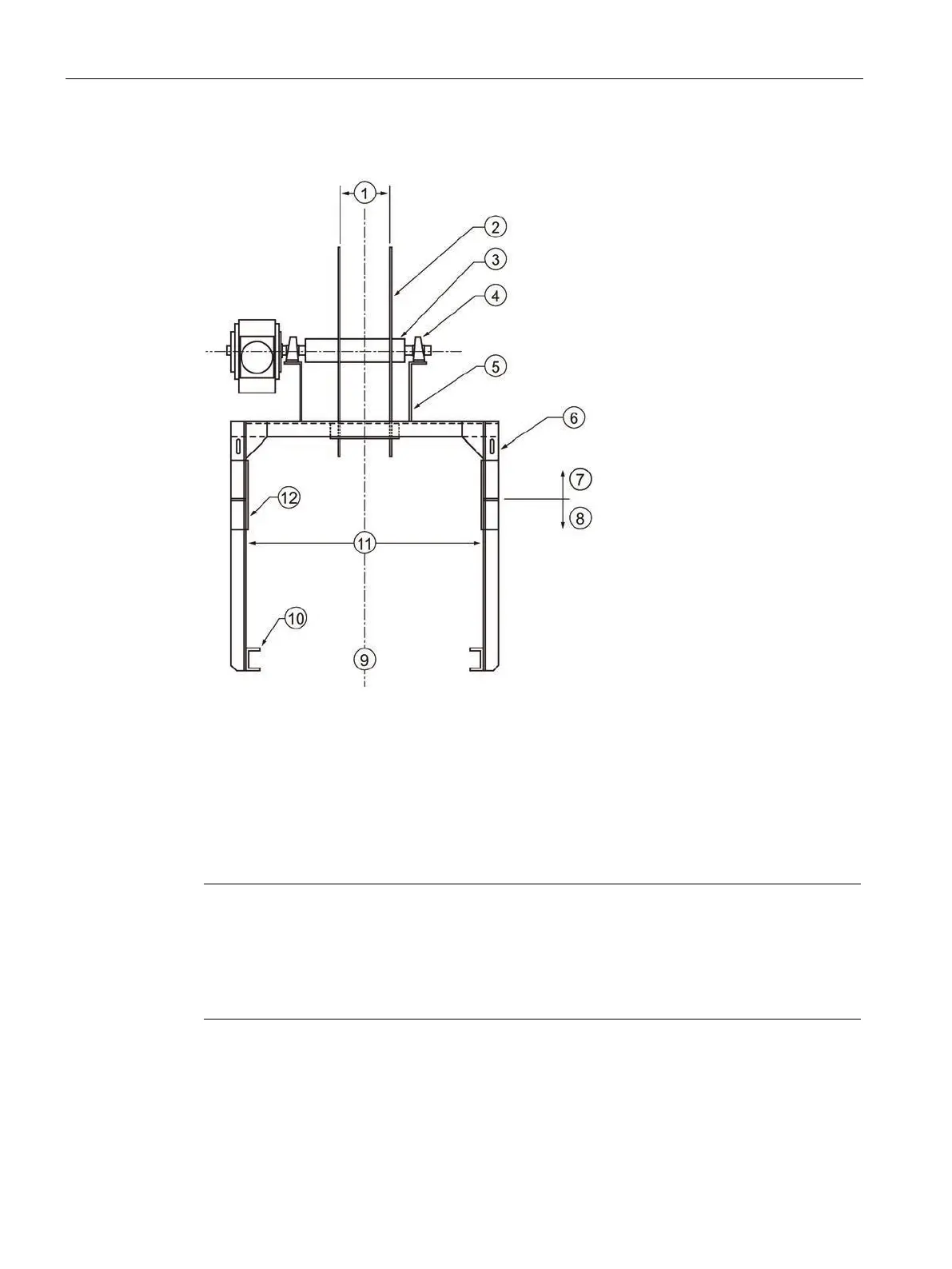

5.5 Standard motorized test chain storage reel
Milltronics Test Chain
14 Operating Instructions, 10/2021, A5E32310082-AB
View "A"
①
Center line of conveyer
⑦
By Siemens Milltronics
② 36, 42, 48, or 60" (91.5, 106.5, 122 or 152
cm) reel
⑧ By customer
③
4" (10.15 cm) shed 40 pipe
⑨
View "A"
④
Pillow block bearings
⑩
Conveyer stringer
⑤ 10" (25.4 cm) X 20Lb/ft (or kg/m equiv.)
support channel
⑪ "C" width per order
⑥
Structural angle frame
⑫
Connecting bracket by customer
Note
•
Motor starters, push button stations, and support legs from the reel to the conveyer frame
are not supplied with the storage reel.
•
Vertical support legs from the reel frame to the conveyer are to be supplied by others.
Provision is made for direct attachment to the customer-furnished supports by short
vertical leg sections from the reel support cross members.
