5.6 Connection of motor
Milltronics Test Chain
16 Operating Instructions, 10/2021, A5E32310082-AB

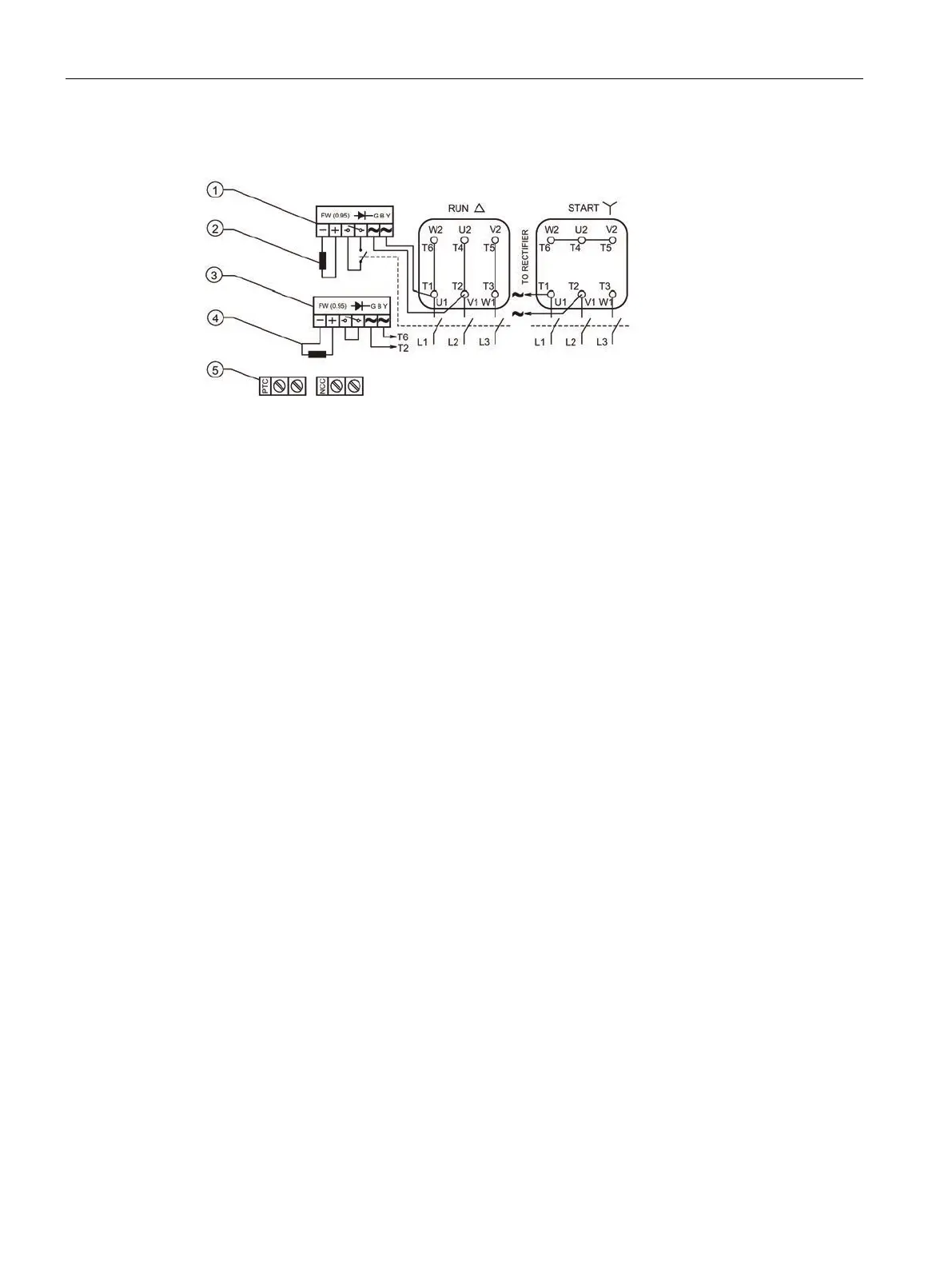

Single speed with pre-connected D.C. brake - 575 V AC
①
Fast stopping option
②
Brake coil 250 V DC
③
Standard stopping
④
Brake coil 250 V DC
⑤
Thermal sensors (if installed)
