Installing/Mounting

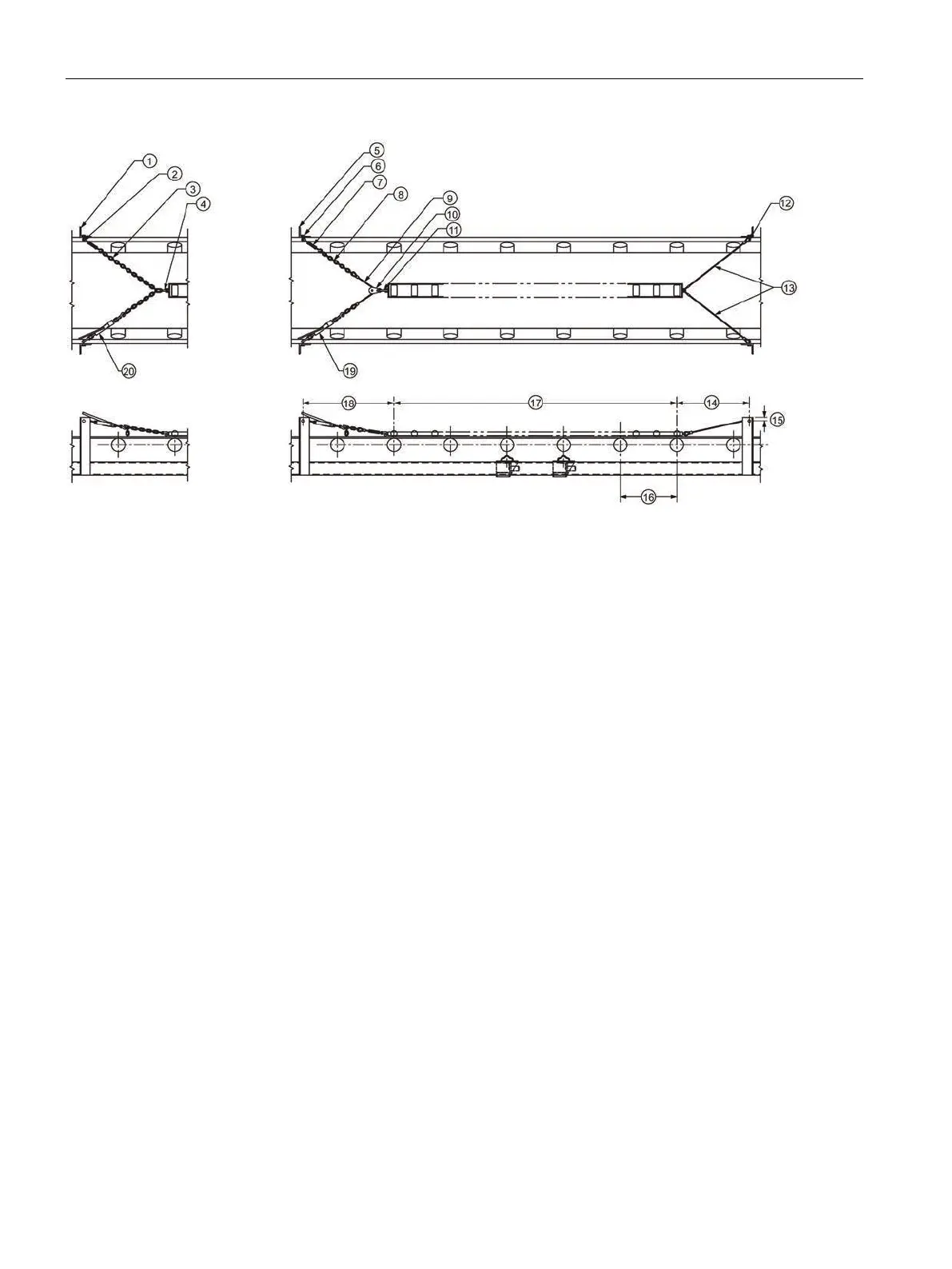

5.7 Positioning the chain
Milltronics Test Chain
18 Operating Instructions, 10/2021, A5E32310082-AB
①
3" X 3" (7.5 X 7.5 cm) mill angle
⑪
Heavy duty hook
②
Eye bolt
⑫
Eye bolt
③
Chain
⑬
Equal length cable
④
Heavy duty hook
⑭
Belt width
⑤
3" X 3" (7.5 X 7.5 cm) mill angle
⑮
1.5" (38 mm)
⑥
Eye bolt
⑯
Idler spacing
⑦
Turnbuckle
⑰
5 x idler spacing
⑧
Chain
⑱
Belt width
⑨
cable
⑲
Load binder
⑩
pulley
⑳
Load binder
