2 - 1
Siemens-Elema AB SPR8-220.092.02 Page 1 of 2 MOBILETT Plus/ -E/ -M/ -HP
Solna, Sweden Rev. 01 08.01 SPS-UD Service
Remounting collimator 2
General 2
Consult the document “Service Instructions”, Chapter 9 for details about settings and
adjustments.
Remounting 2
• Install the collimator. Center the rotary-flange so that the screws marked "E" are
centered in the grooves before tightening.
• Connect the wires to connection terminal board "D".

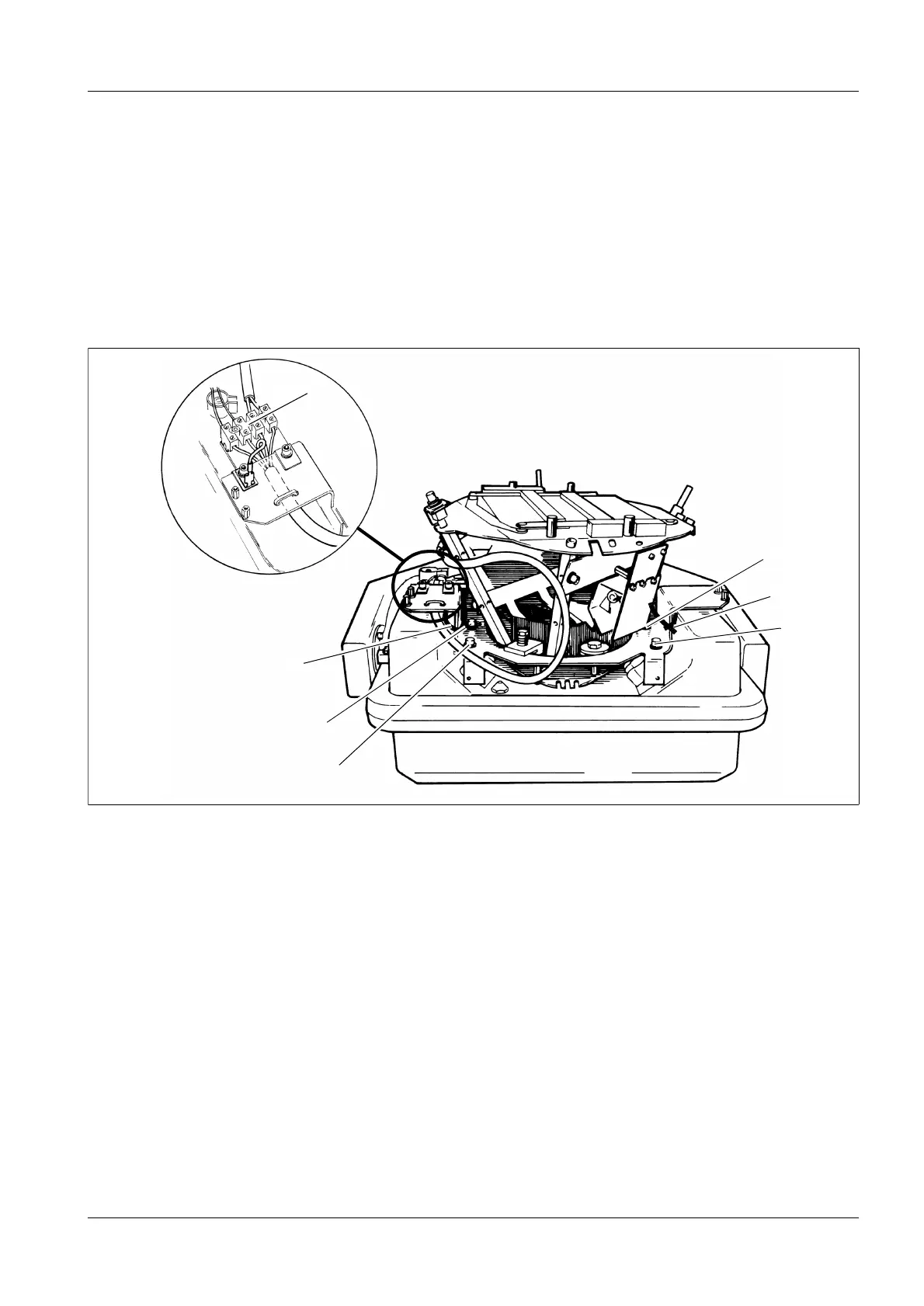

Fig. 1
D
E
E
E
cable tie
cable tie left side
E
right side
