Siemens MOBILETT Plus Installation Instructions

Installation 2 - 5
Siemens AG SPR8-220.031.04 Page 5 of 30 MOBILETT Plus/ -E/ -HP
Medical Solutions Rev. 04 09.03 CS PS 24
3. Feed the pin plugs (K21 and K22) underneath the bar and between the two thick
cables (Fig. 5).
4. Insert the cable end with pin plug K22 into the joint between the upper and lower
arm as shown in Fig. 6. Make sure the cable runs between the two thick cables.
MOB00520

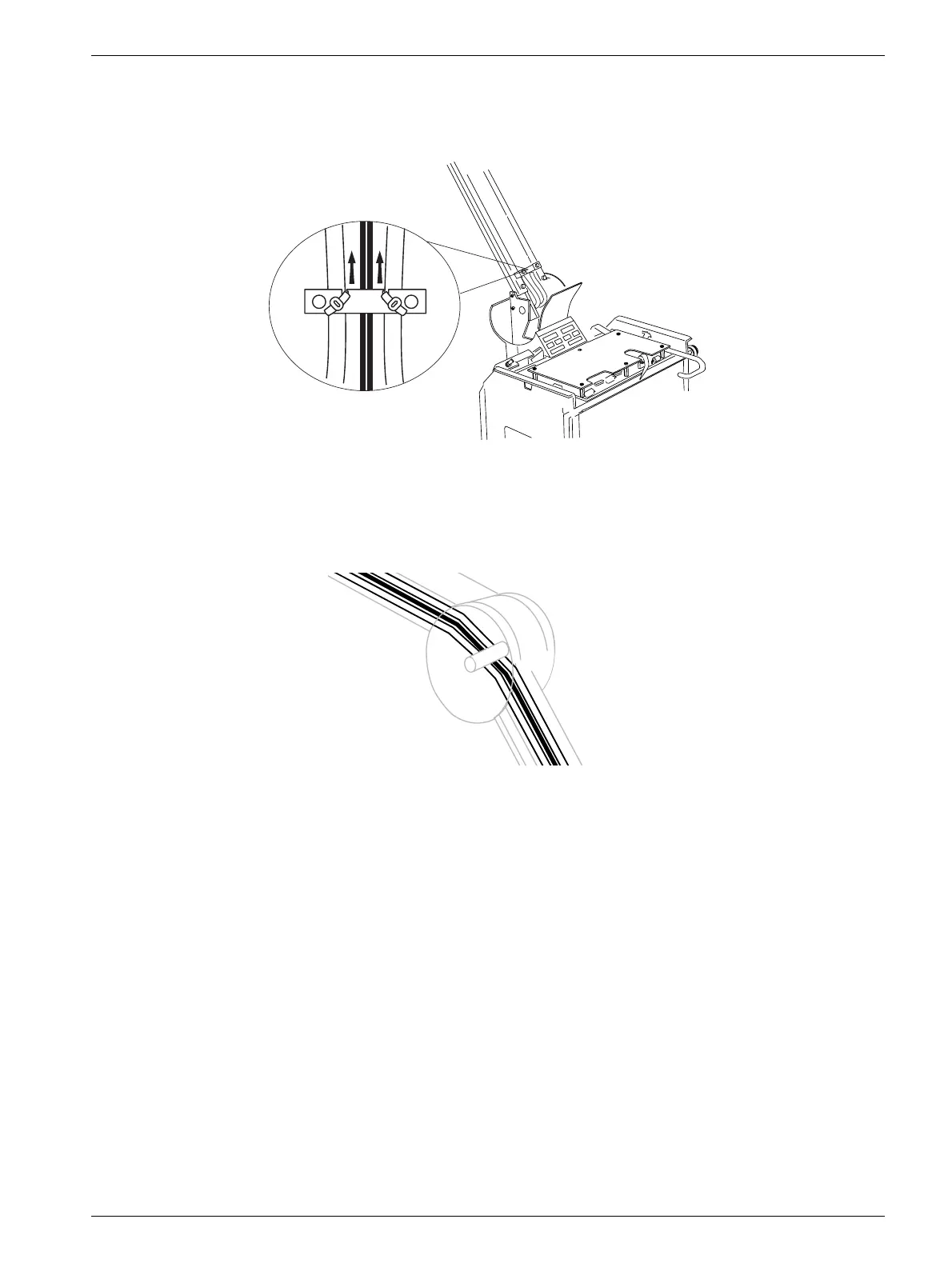

Fig. 5 Feeding cables
MOB00455
Fig. 6 Cables in joint
