RACK HARDWARE
The MXL/MXLV rack mounting panels mount on a
standard 19" wide x 18" deep rack (See Figure 1).
Table 1 lists the recommended locations (front or
rear) for the rack mounted modules and the panel
heights of the rack mount kits.
The following rack is available for typical installa-
tions (Refer to Figure 1):
MODEL
NO.
PART
NO.
DESCRIPTION
MXL-RK1 500-693470 6 Foot Vertical
Rack

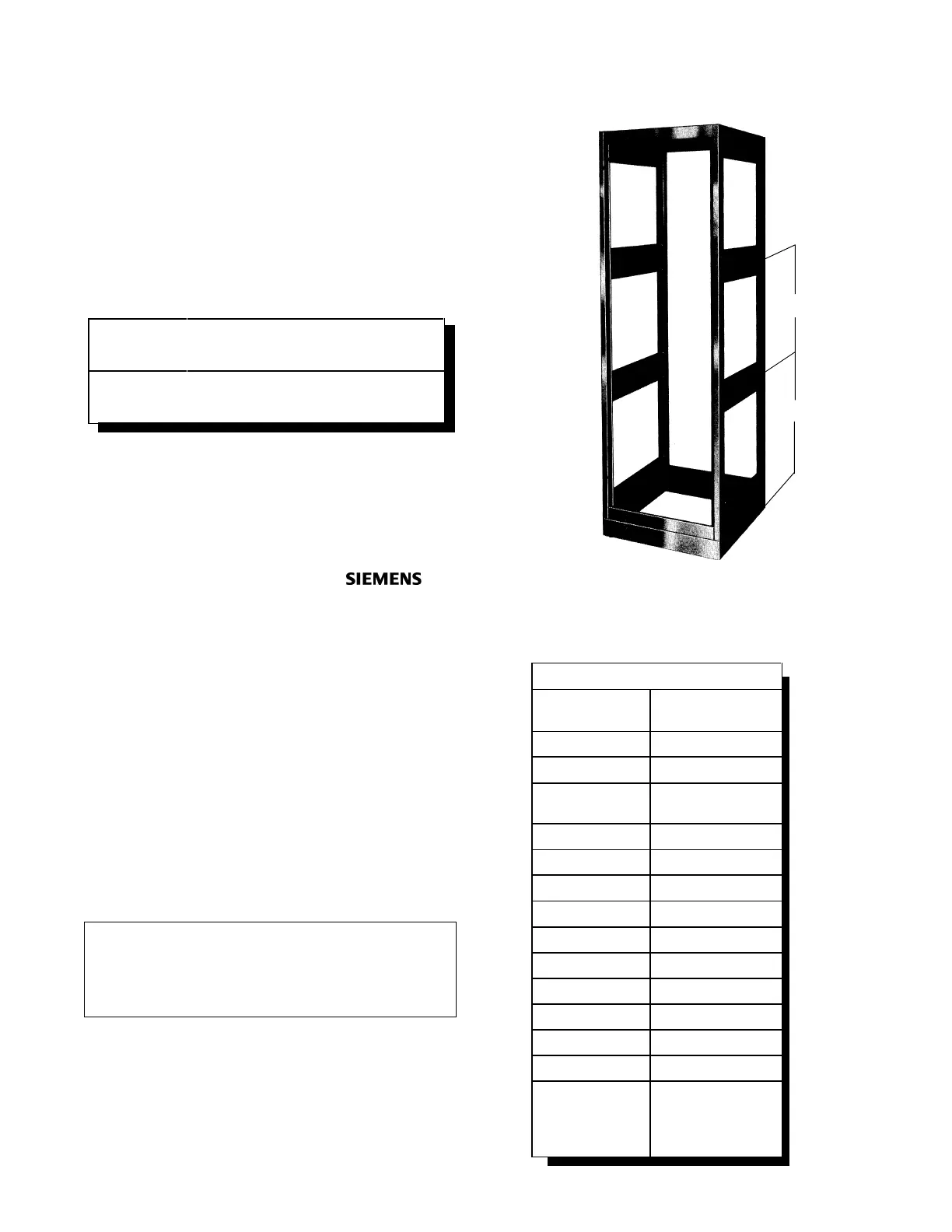

Figure 1
MXL-RK1 Rack
The rack is supplied with:
• side, back, and top panels
• front door with clear lens
• battery tray
• mounting hardware
The front door door has a standard
lock with key.
MODULE ASSEMBLY
Mount each module, except the MKB-3, the
TSP-40, and the EL-410D to its designated rack
mount kit (See Table 1) using the hardware and
installation instructions provided with the module.
See Table 2 for a list of installation instructions.
Refer to Figure 2 when assembling the ACM-RK
to determine correct module placement and
cabling connections.
MKB-3 Installation
Remove all system power before
installation, first battery and then AC.
(To power up, connect the AC first
and then the battery.)
Setting the Network Address
(See Figure 3)
1. Before installing the MKB-3 panel, set its
network address on S1, the switch on the
ANN-1 board located on the back of the
MKB-3. Use dipswitches SW1 and SW2 on
26"
26"
TABLE 2
Installation
Instructions
Part
Number
ACM-1 315-092083
EL-410D 315-094916
MMB-1
MMB-2
315-090375
315-095097
MMM-1 315-092098
MOM-2 315-092777
MOM-4 315-090852
MPS-6/-W 315-090334/W
MPS-12/-W 315-092030/W
OMM-1 315-090267
OMM-2 315-092699
PIM-1 315-091462
PSR-1 315-090911
TSP-40 315-090776
VFM-1
VLM-1
VSM-1
VSB-1
315-092064
315-092064
315-092064
315-092064
