Connecting
4.7 Power and motor connections
PM250 Power Module
Hardware Installation Manual, 09/2012, A5E01003502B AD
37
4.7 Power and motor connections
Power and motor terminal layout

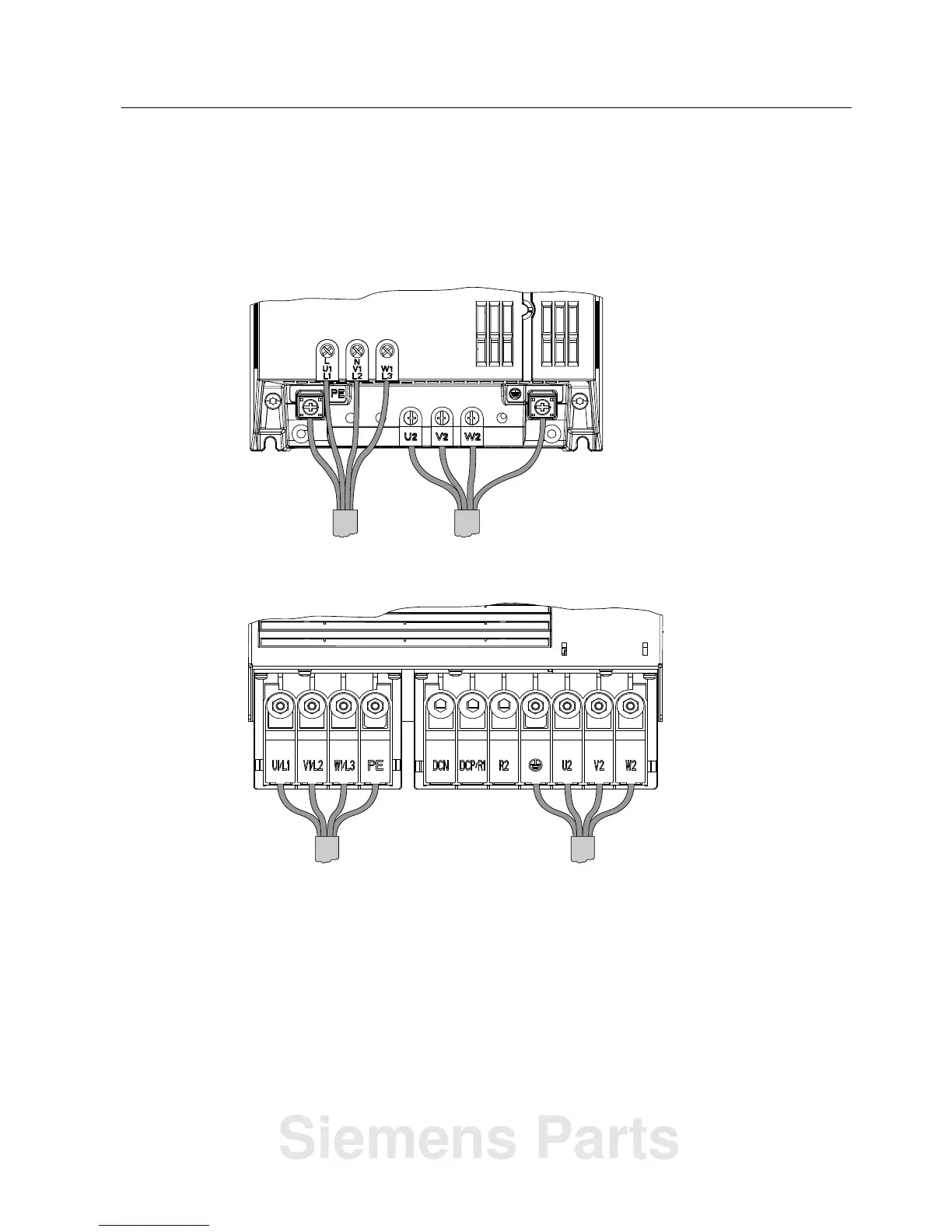

The figures below show the layout of the power and motor terminals of the Power Module.
6XSSO\YROWDJHFRQQHFWLRQ 0RWRUFRQQHFWLRQ
Figure 4-3 Power and motor terminals FSC
6XSSO\YROWDJHFRQQHFWLRQ 0RWRUFRQQHFWLRQ
Figure 4-4 Power and motor terminals FSD … FSF
