Installing/Mounting
3.3 Dimensions and drill pattern
PM250 Power Module
22 Hardware Installation Manual, 09/2012, A5E01003502B AD
3.3 Dimensions and drill pattern
Dimensions, drill patterns and minimum distances
The dimension drawings for all frame sizes for the Power Module are shown in the figures
and not true to scale.
)RUIL[LQJ
[0EROWV
[0QXWV
[0ZDVKHUV
7LJKWHQLQJWRUTXH1P
OEILQ
+HLJKWLQFRPELQDWLRQZLWKWKHVFUHHQ
WHUPLQDWLRQNLWZR%UDNH5HOD\
PPLQFK
PP
PPPP

PP

PP

PP

PP


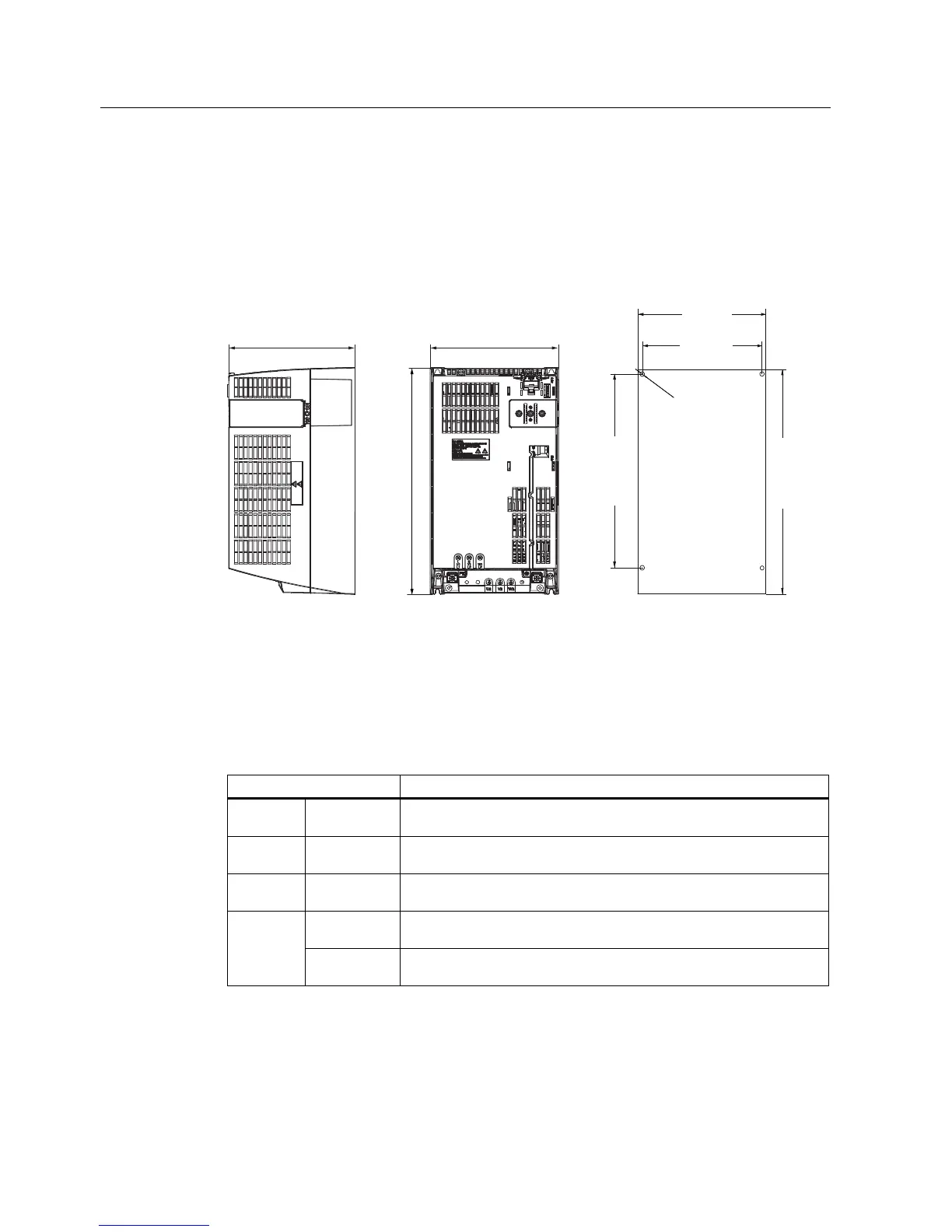

Figure 3-2 Dimensions and drill pattern, FSC (HO 5.5 kW ... 11 kW)
Table 3- 3 Minimum distances for mounting
Minimum distances FSC Note
side by
side
50 mm
1.96 inches
At max. environmental temperature of 40° C (104° F) and with max. HO
load the Power Modules can be mounted adjacent to each other
above 125 mm
4.92 inches
below 125 mm
4.92 inches
40 mm
1.57 inches
Additional distance to the front with Control Unit CU240E front
65 mm
2.56 inches
Additional distance to the front with Control Units CU240S … and
CU230P-2 …
