Connecting
4.8 ESD guidelines
PM250 Power Module
40 Hardware Installation Manual, 09/2012, A5E01003502B AD
Screening without a Screen Termination Kit
In order to meet radiated emissions a screen termination kit must be used. Screening without
a screen termination kit is only suitable for installation in a metal cabinet.
Should a Screen Termination Kit not be available, the inverter then can be screened using
the methodology shown in the figure below. This diagram shows both methodologies of
screening.
Note
The EMI illustration below is not to scale. The terminal cover on Frame Size D cannot be
removed. It has been removed to show the correct cable connection for the terminals.

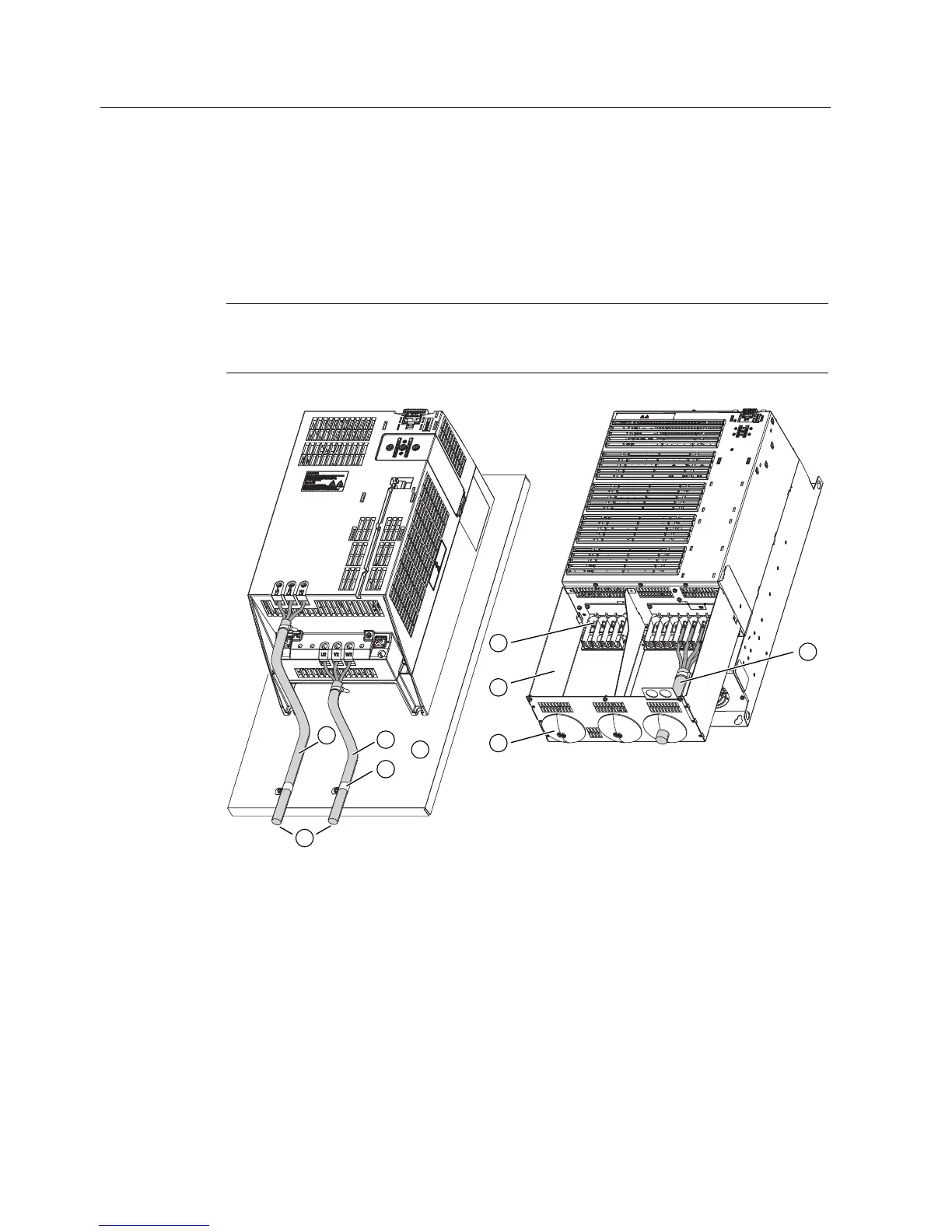

① Line power input
② Motor cable
③ Metal back plate
④ Use suitable clips to fix motor and power cable screen securely to metal back plate
⑤ Screen cables
⑥ Screen Termination Kit
⑦ Gromments
Figure 4-5 Example of wiring to minimize the effect of EMI
