Protective Earth Connection

[scconpec-241110-01.tif, 1, en_US]

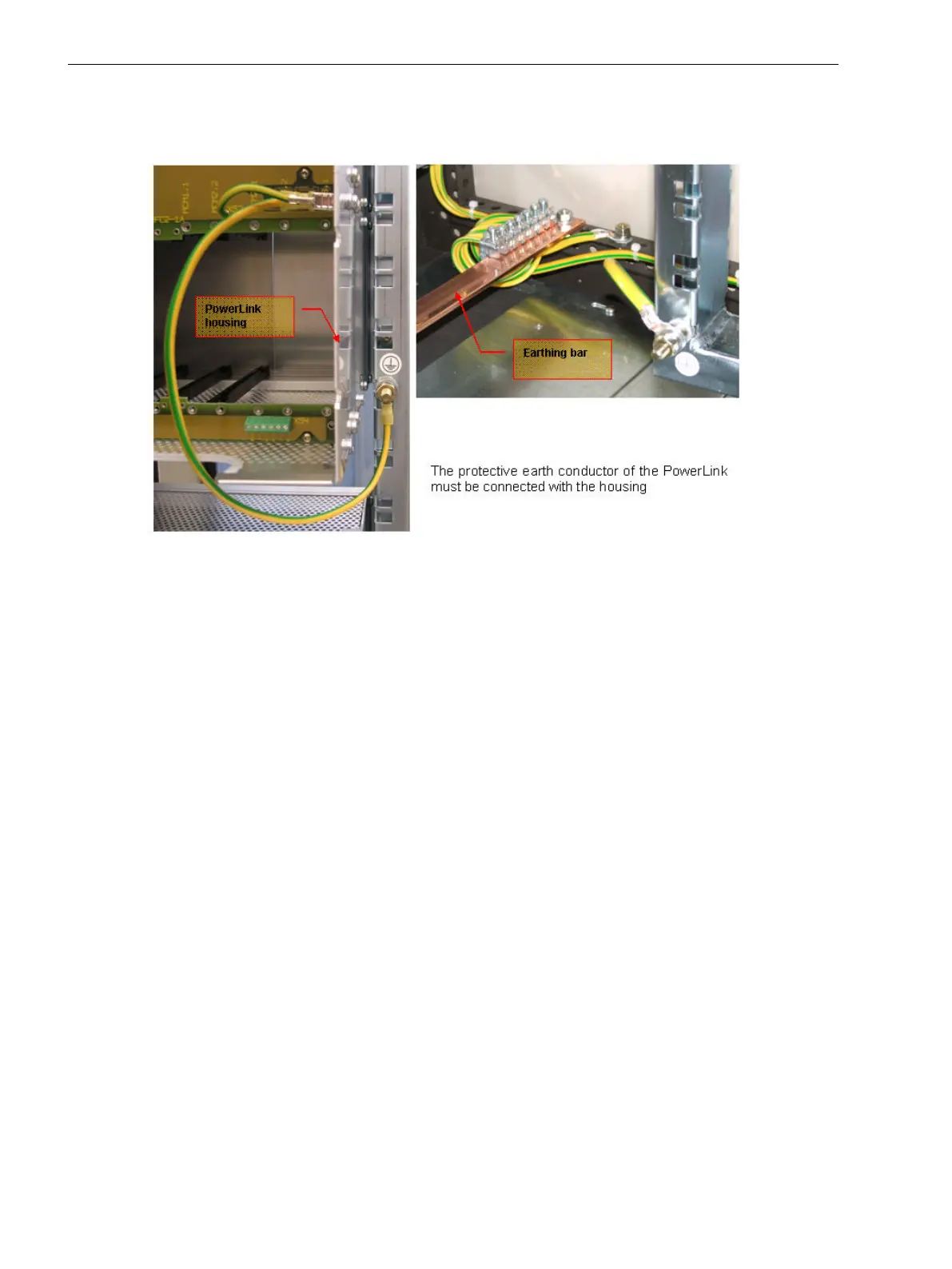

Figure 4-1 Connection of the PE conductor

The protective earth conductor of the PowerLink must be connected with the housing.

The connection of the PE conductor on PowerLink 50 is shown in

Figure 4-3

4.1

Connecting the Device

4.1 Protective Earth Connection

34 Smart Communications, PowerLink 100 and PowerLink 50, Product Information

E50405-U53-X-B3-7670, Edition 11.2014
