Siemens QAA74 - Design AVS74 operator units

1
Overview
Design AVS74 operator units
10
Siemens Graphical User Interface UI400 CE1U2348en
Building Technologies 2014-06-03

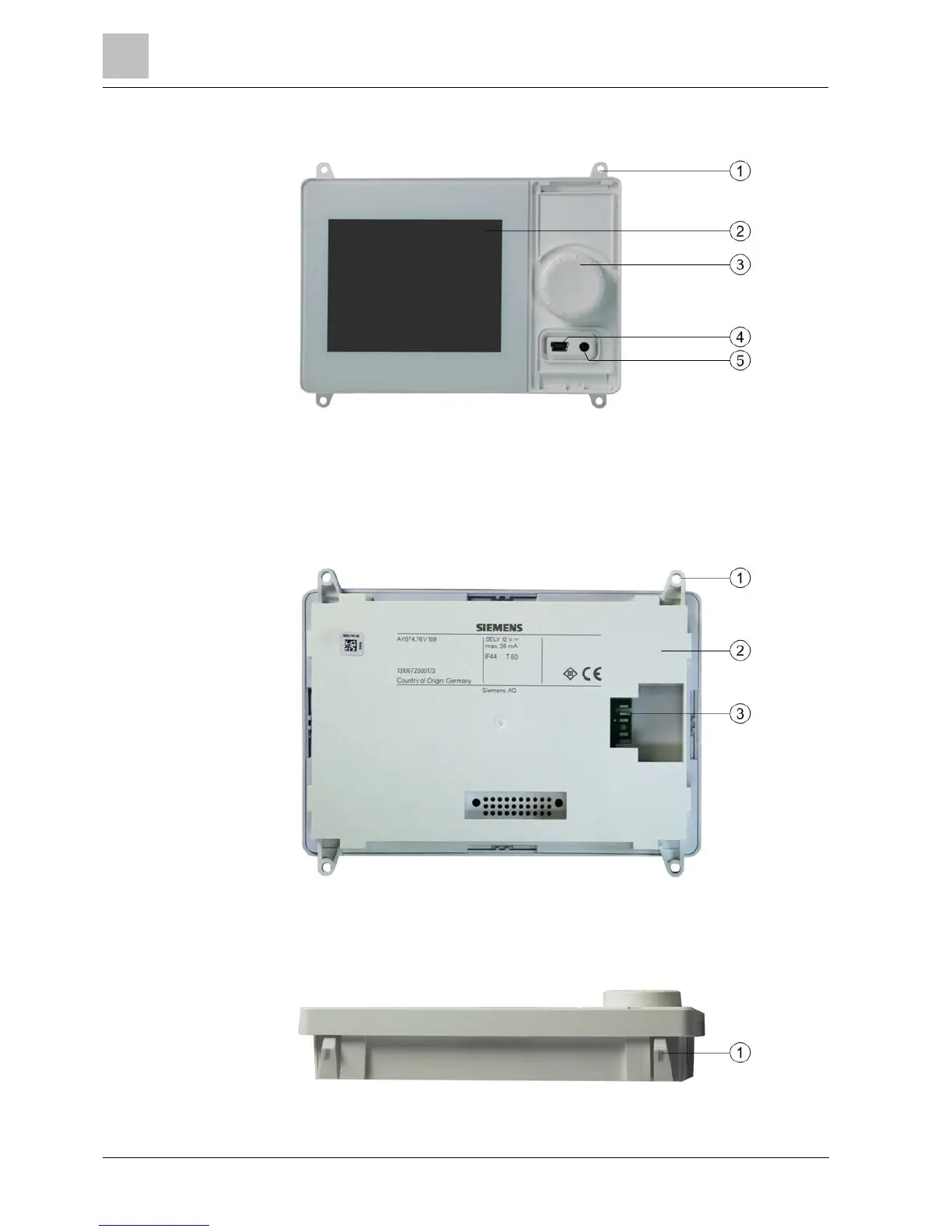

1.3 Design AVS74 operator units
① Mounting bracket to screw on for rear side mounting (here: AVS74.661)
② Display
③ Control knob
④ USB connection
⑤ Unlock button
① Mounting bracket to screw on for rear side mounting
② Housing
③ Plug-in connection for cable AVS82.49x
① Snapper for front side mounting (here: AVS74.261)
Face view
Rear view
Bottom view
