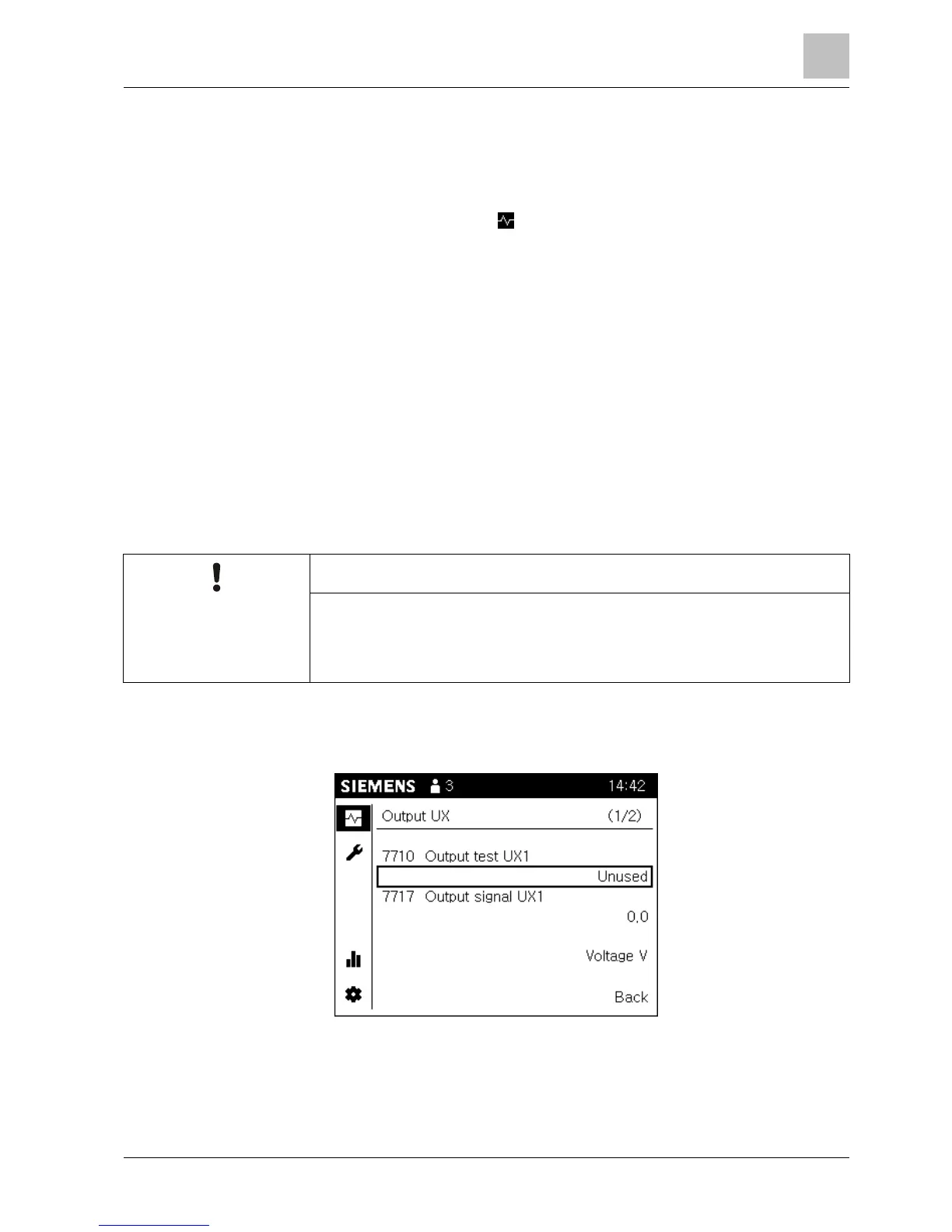

8.1.1 Example input/output test
Output UX1 is tested.
l Select diagnostic pages (
) on the navigation bar.
Go to diagnostic page
1. Turn the control knob and select "Input/output test".
2. Press the control knob.
'Input/output test' opens. The title of the first page of the input/output test is
preselected. The associated parameters with operating lines are displayed in
the work area.
3. Press the control knob to select the title.
4. Turn the control knob until you see the input or output to be tested. In this case:
"Output UX".
Conduct output test
NOTICE
Unwanted operating states due to a lack of limitation.
Limitations do not act during the output test.
● Ensure that the components controlled during the output test cannot result in
undesired operating states.
1. Press the control knob to go to the work area.
2. Turn the control knob until the setting value for "Output test UX1" is highlighted.
3. Press the control knob to select the test value.
