Siemens QAA74 - Front Side Installation (AVS74.261)

Mount and connect
3
Mount AVS74 operator unit
31
Siemens Graphical User Interface UI400 CE1U2348en
Building Technologies 2014-06-03
3.4.1 Front side installation (AVS74.261)
No additional tools are required to front-side mount the AVS74.261.
The AVS74.261 for front-side mounting has 4 snappers attached to the housing
side.
Click!
Click!
Click!
2
3
4
8
Z
1
8

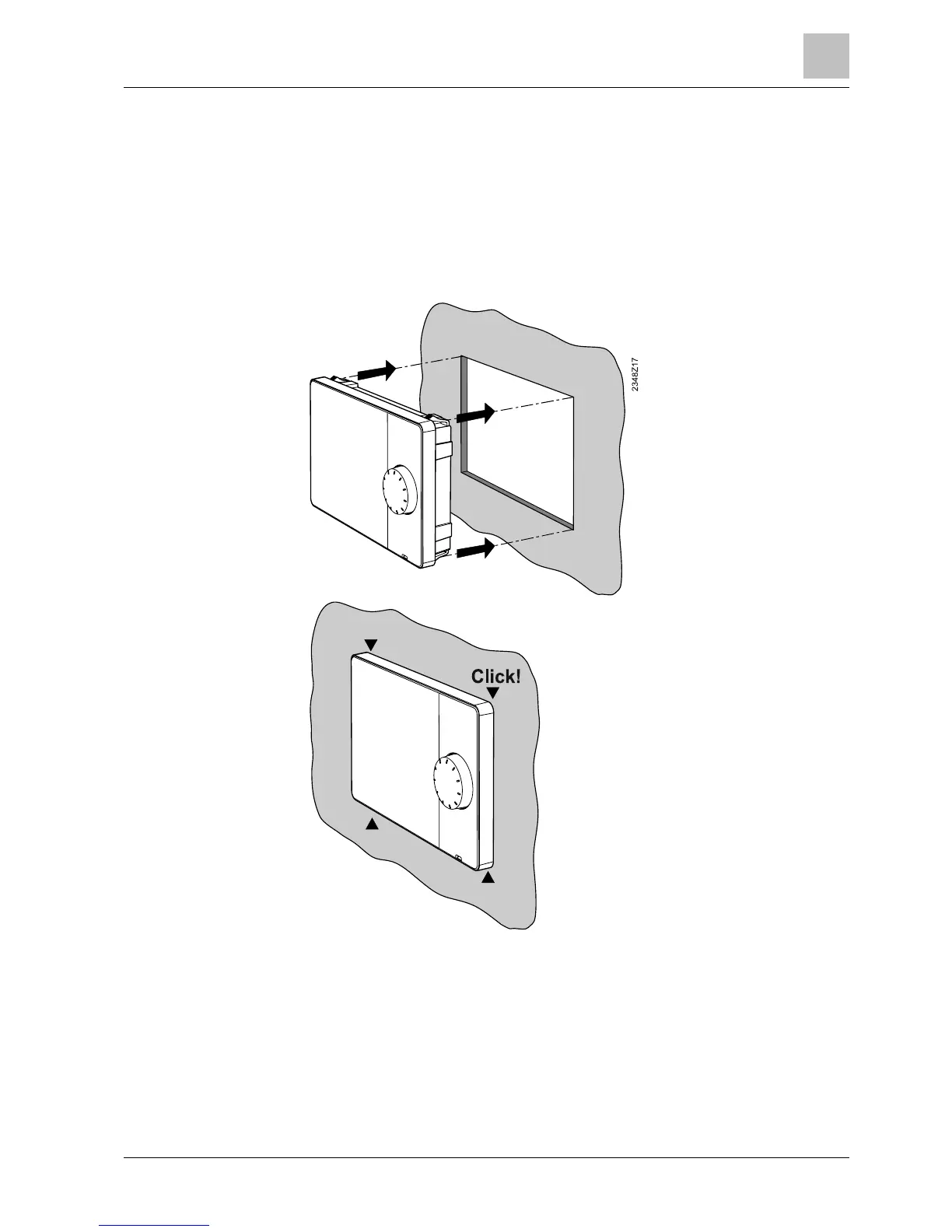

1. Place the housing on the prepared section.
2. Press the unit in the prepared section until it snaps in place.
Attachment principle
Snap housing
