Mount and connect
3

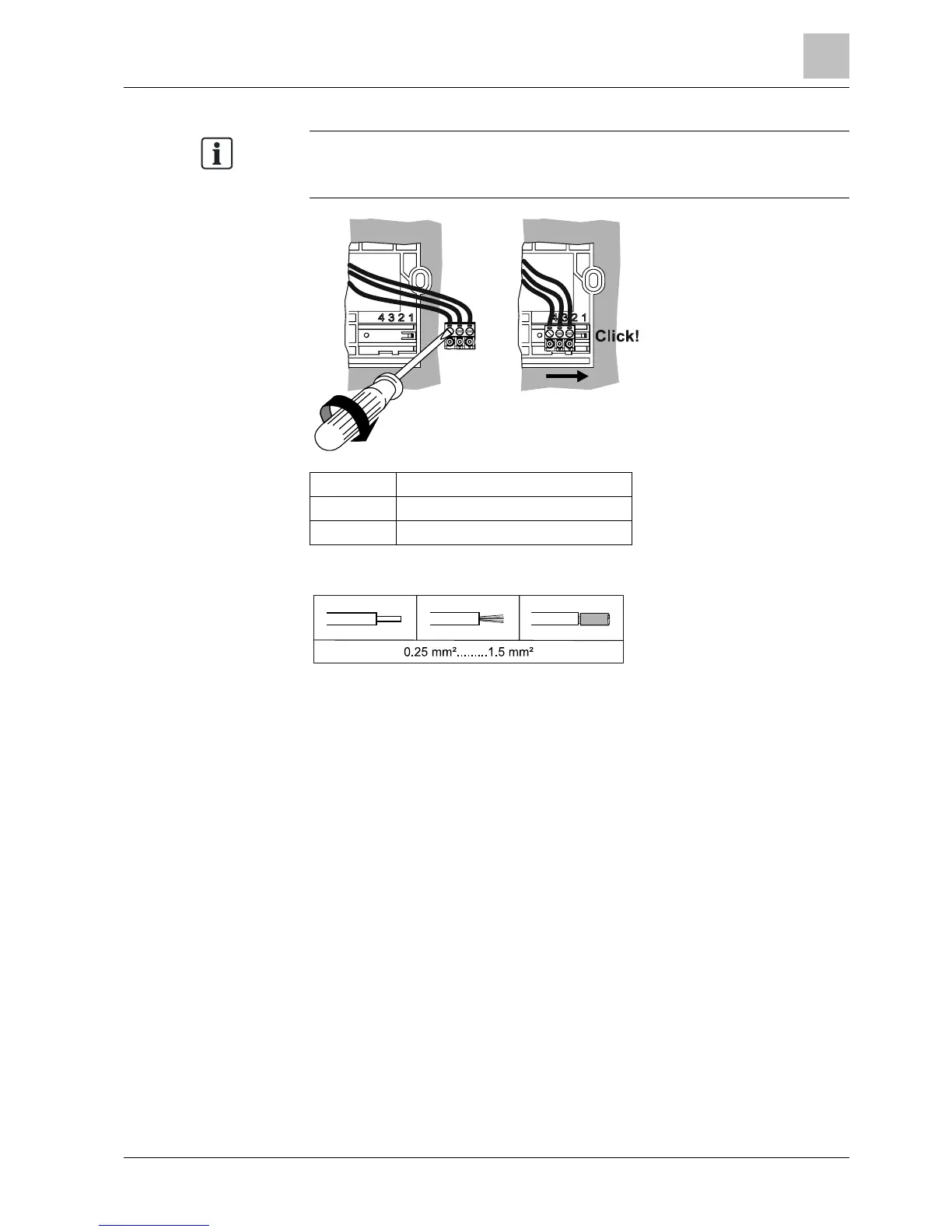

Mounting QAA74 room unit
27
Siemens Graphical User Interface UI400 CE1U2348en
Building Technologies 2014-06-03
Mounting tip
.
Flexible cables are easier to mount on the green screw terminals, if the terminals
have been removed in advance from the mounting plate.
234 8Z15
1 DC +12 V (G+)
2 GND (CL-)
3 BSB (CL+)
23 48Z 07
Attach housing
See Flush mounting cable routing.
Flexible cable
Terminal assignment
Permitted cable ends
