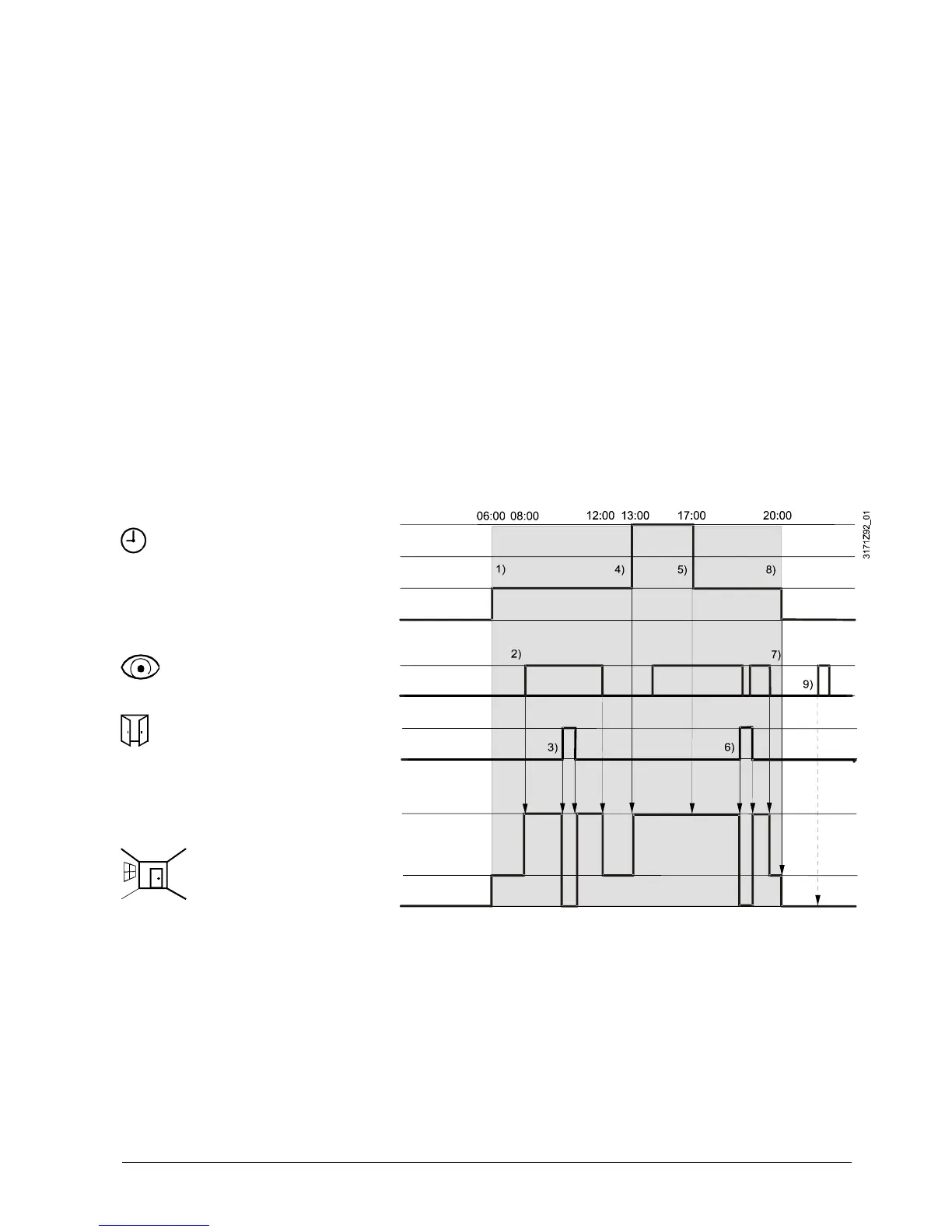

Application with "Window Contact", "Standard Presence Detector" and
central time schedule
In room 3 operating mode Comfort is possible between 6:00 and 20:00, based on
time schedule or occupancy period. Outside this time the operating mode remains
in Protection.
∂ At 6:00 the central set the operating mode to Economy. (1)
∂ In the morning, as soon as the presence is detected (8:00 – 12:00), the
operating mode will be switched to Comfort. (2)
∂ The user will briefly open the window and the operating mode switches to
Protection. (3)
∂ In the afternoon the time schedule set the Comfort mode from 13:00 to 17:00.
(4)
∂ After 17:00 the room is still occupied and the operating mode remains in
Comfort (occupancy via presence detector). (5)
∂ Later people open the window and left the room for a short time. Operating
mode switches to Protection as long as the window is open. (6)
∂ As soon as the room is unoccupied the thermostat switches to Economy. (7)
∂ At 20:00 the room is set to protection according to time schedule. (8)
∂ After this time, the occupancy detected via presence detection has not effect,
as the central time switch sets the thermostat to Protection. (9)
