Si
emens
RDF301, RDF301.50..., RDF600KN,
RDF600KN/S Basic Documentation
CE1P3171en
Building Technologies
2017-12-07
A
CS

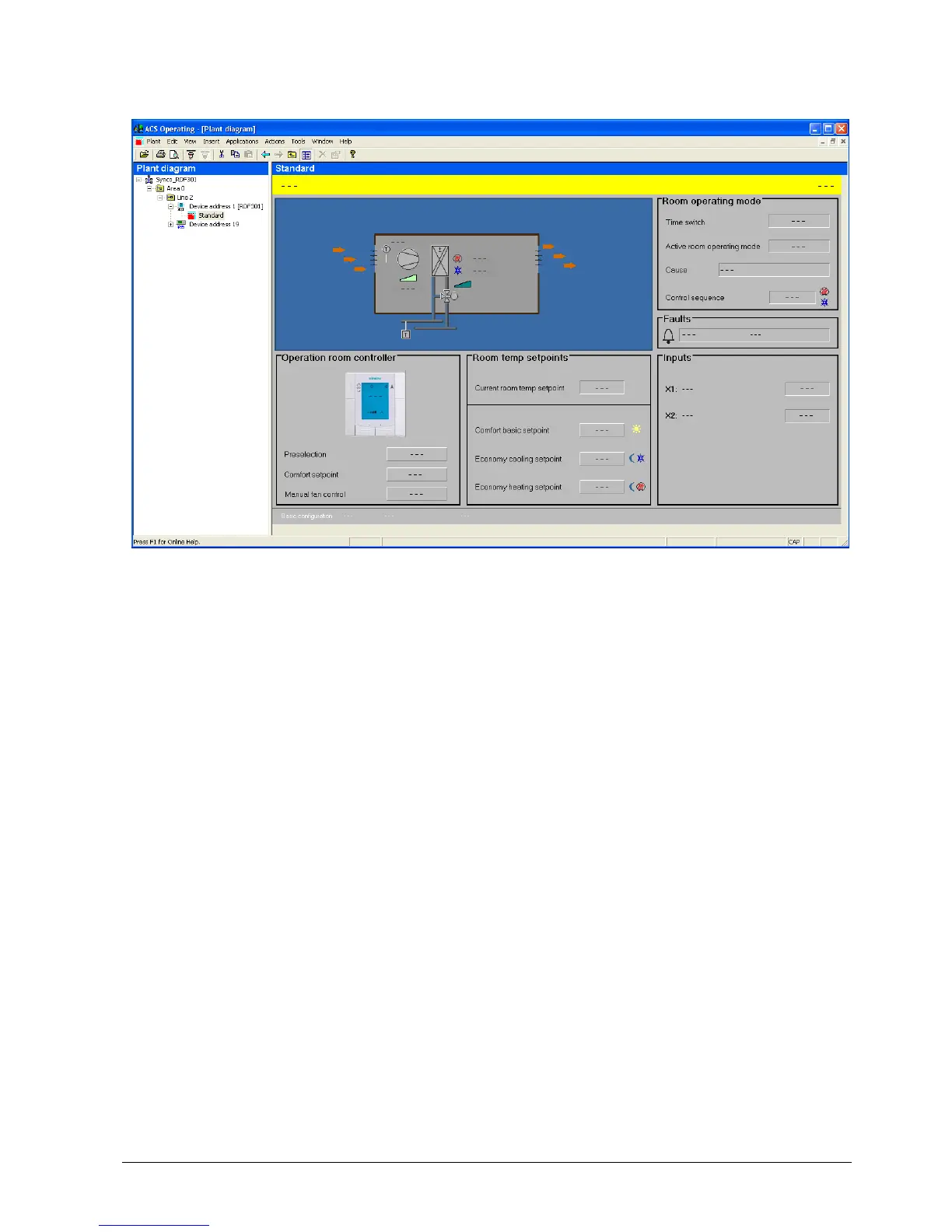

offers plant diagram
s for eas
y monitoring and o
peration of
the therm
ostat.
T
o start this
application, sel
ect
Applications,
then
Pant d
iagram
.
Plant diagram
in ACS
82
84
Table of Contents
Default Chapter
2
Table of Contents
2
1 About this Document
4
Revision History
4
New Functions
5
Reference Documents
5
Before You Start
7
Copyright
7
Quality Assurance
7
Document Use / Request to the Reader
7
Target Audience, Prerequisites
8
Glossary
8
2 Summary
9
Types
9
Ordering
9
Functions
9
Integration Via KNX Bus
11
Equipment Combinations
13
Accessories
13
3 Functions
14
Temperature Control
14
Operating Modes
15
Different Ways to Influence the Operating Mode
16
Communication Examples
20
Room Temperature Setpoints
25
Description
25
Setting and Adjusting Setpoints
27
Applications Overview
28
Applications for Fan Coil Systems
29
Applications for Universal Systems
30
Applications for Heat Pump Systems
31
Additional Functions
32
Control Sequences
35
Sequences Overview (Setting Via Parameter P01)
35
Application Mode
36
2-Pipe Fan Coil Unit
38
2-Pipe Fan Coil Unit with Electric Heater
39
4-Pipe Fan Coil Unit
41
Chilled / Heated Ceiling and Radiator Applications
42
Compressor Applications
43
Setpoints and Sequences
44
Control Outputs
46
Overview
46
Control Outputs Configuration (Setting Via DIP Switches or Tool)
47
Fan Control
48
Multifunctional Input, Digital Input
51
Handling Faults
53
KNX Communications
54
S-Mode
54
LTE Mode
54
Zone Addressing in LTE Mode (in Conjunction with Synco)
55
Example of Heating and Cooling Demand Zone
57
Send Heartbeat and Receive Timeout
58
Startup
58
Heating and Cooling Demand
58
Fault Function on KNX
59
KNX Switching Groups (RDF600KN/S, RDF301.50, RDF301.50H Only)
60
Communication Objects (S-Mode)
62
Overview
62
Description of Communication Objects
64
Communication Objects (LTE-Mode)
67
Control Parameters
68
Parameter Setting Via Local HMI
68
Parameter Setting / Download Via Tool
69
Parameters of the "Service Level
70
Parameters of the "Expert Level with Diagnostics and Test
71
4 Handling
74
Mounting and Installation
74
Commissioning
75
Operation
77
Remote Operation
78
Disposal
78
5 Supported KNX Tools
79
Ets
79
Parameter Settings in ETS
79
ACS Service and Operating Tool
80
Parameter Settings in ACS
81
Operation and Monitoring with ACS
82
Operation and Monitoring with OZW772
85
Operation and Monitoring with RMZ972
85
6 Connection
86
Connection Terminals
86
Connection Diagrams
87
7 Mechanical Design
88
General
88
Dimensions
89
8 Technical Data
90
Index
92
