Siemens RDG100…/RDG110…/RDG140.../RDG160… Basic Documentation CE1P3076.en
Building Technologies Handling 28 May 2009
5.2 Operation
See also Operating Instructions B3181 enclosed with the thermostat.

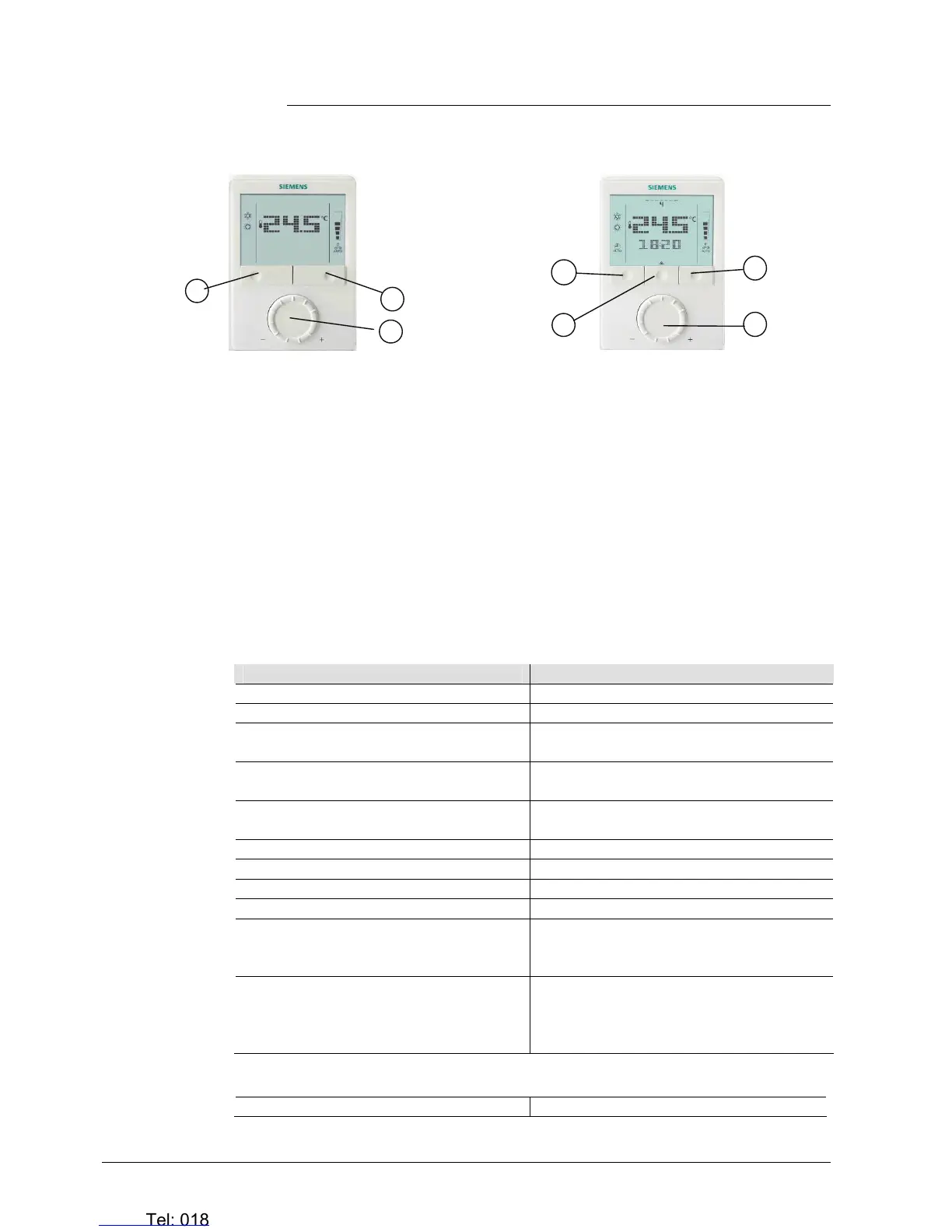

Layout
RDG100
RDG110
RDG140
RDG160
RDG100T
1 Operating mode button / Esc
2 Button to enter the time and to set the timers
3 Fan mode button / OK
4 Rotary knob for setpoint and parameter adjustment
• When the thermostat is in normal operation, the actual operating mode and
status are indicated by symbols
• When a button is pressed, the RDG goes into mode selection
The LCD backlight will turn on, all possible mode selection options (symbols) will
turn on, indicator element (arrow) will appear on the current mode/status
• When the button is pressed again, the indicator element will change to the next
mode symbol and so on.
• After the last press and a timeout of 3 seconds, the newly selected mode is
confirmed, the other elements disappear
• After a timeout of 20 seconds, the LCD backlight will turn off
User action Effect, description
Press left button Go into Operating mode selection
Press left button >3 seconds Set thermostat to Protection mode
Keep left button depressed and
turn rotary knob clockwise
Activate temporary timer "Extend presence"
and set the time (for details, see page 18)
Keep left button depressed and
turn rotary knob counterclockwise
Activate temporary timer "Extend absence"
and set the time (for details, see page 18)
Press left button while "Operating mode
switchover" is activated
Activate "Extend Comfort mode"
(for details, see page 18)
Press right button >3 seconds Activate / deactivate button lock
Press right button for fan coil unit Change fan mode
Press right button for chilled ceiling (P52=0) Set thermostat to Protection mode
Turn rotary knob Adjust the room temperature setpoint
Press left and right button >3 seconds,
release, then press right button >3
seconds
Go to parameter mode “Service level”
Press left and right button for 3 seconds,
release, press left button for 3 seconds,
then turn rotary knob counterclockwise
min. ½ rotation
Go to parameter mode “Expert level”,
diagnostics and test
Only onRDG100T:
Press center button
Go to timer settings
Button operation
3
1
4
2
1
3
4
